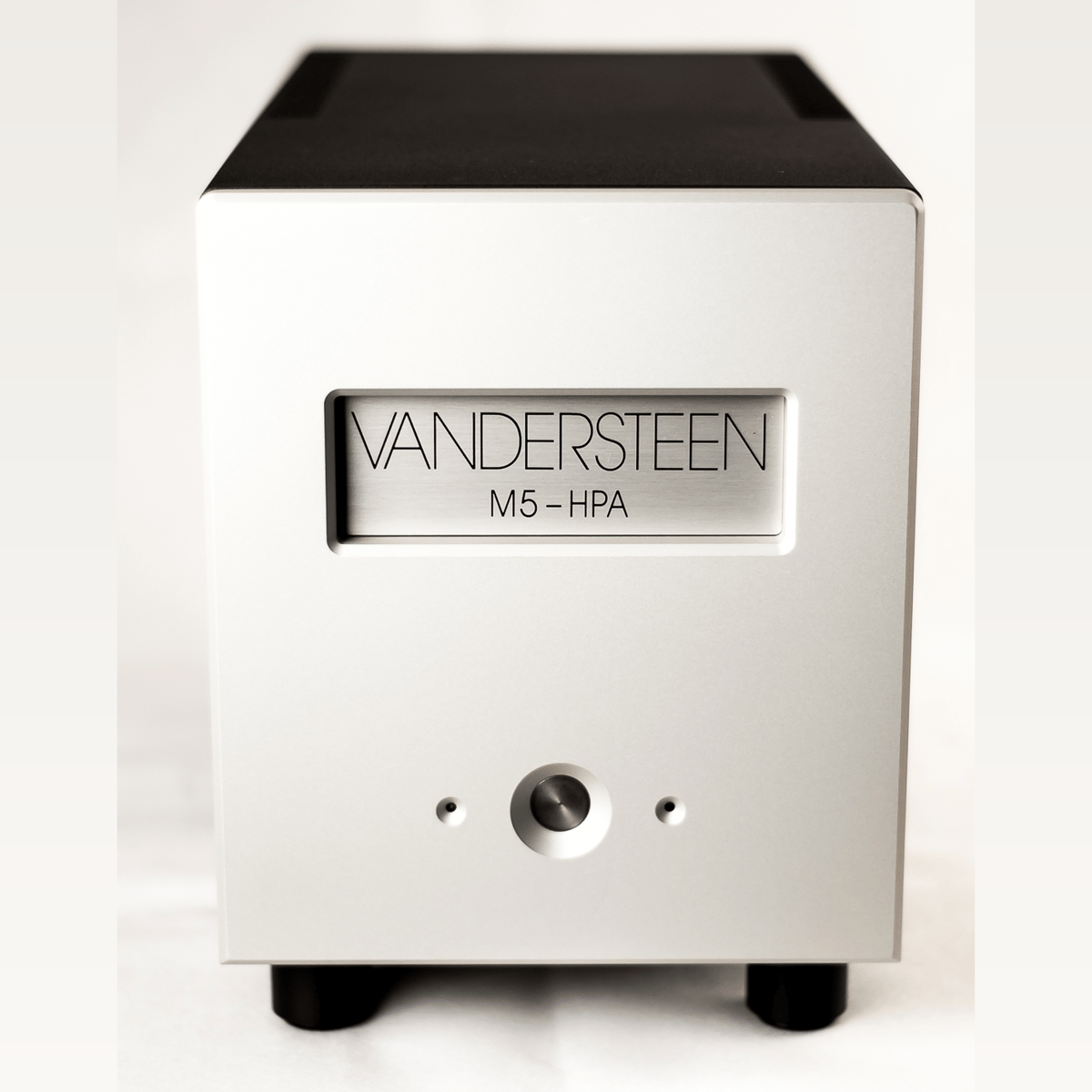

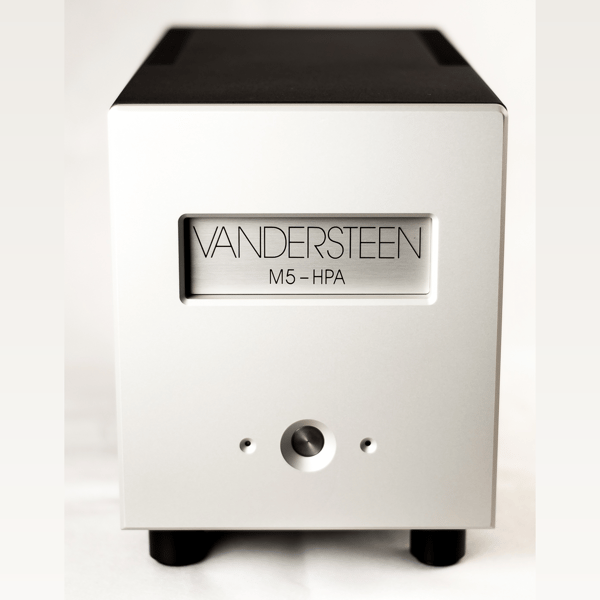

Vandersteen M5-HPA
M5-HPA High Pass Mono Block Amplifier with Black or Silver Faceplate
Combining the M5 High Pass Amplifier (M5-HPA), the included 30-inch HPA interface cable, and your Vandersteen speakers yields a fully-powered solution optimized by the factory. This eliminates the need for another amplifier and an external crossover, so plug your pre-amplifier into this M5-HPA, and you are ready to play. The Price Shown Includes High-content Silver and Copper BiWire 30" HPA Interface Cable.
The dramatic reduction in distortion realized by Vandersteen’s patented Perfect-Piston™ drivers (US patent #8320604) made it clear to Richard Vandersteen that the next speaker performance frontier would only be achieved by designing a radical new state-of-the-art amplifier from the ground up. The resulting flagship M7-HPA inspired a more compact, practical solution: the M5-High Pass Amplifier (M5-HPA). This high-pass amplifier is excellent with Quatros, SUB THREEs (combined with any brand loudspeaker), and KĒNTO Carbons.
For years, Vandersteen has employed amplifiers custom-tailored to each design in Vandersteen’s subwoofers and the equalized bass sections in its powered-bass loudspeakers in conjunction with passive high-pass filters for ultimate performance. When employing the HPA Interface cables combined with a powered-bass Vandersteen speaker, the M5-HPA mono-block creates an entirely powered loudspeaker system in which the amplification over the entire frequency range is driven by perfectly tailored amplification.
Richard Vandersteen is responsible for the M5-HPA’s overall design and architecture; the amplifier was developed and built in a partnership between Vandersteen Audio and Dean Klinefelter, a talented designer and engineer.
M5-HPA Design and Performance Features:
- 300-Watts Into 4 Ohms
- Zero-Feedback Design With Dual Single-Ended Circuits Connected By The Speaker Load
- All Signal Transistors NPN Bipolars
- Minimal Circuit Path (only 5 parts in the signal path)
- 10 Separate Power Supplies
- All Analog Circuit Logic – NO DIGITAL PROCESSING OF ANY KIND
- Integral 200 Hz, 100Hz, 80 Hz, 40 Hz, and 20 Hz adjustable High-Pass Filter
- Aluminum Chassis with Noise Isolation Feet from HRS
- No Emitter Resistors in the Output Stage
- Buffer for Output is the Supplied Interface Cable
- DBS - Dielectric-Bias-System
- Made in the USA
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Frequency response
- 20, 40, 80, 100, 200Hz (switchable) -200KHz -3db High Pass Amplifier
- Power
- 150 watts 8 ohms, 300 watts 4 ohms, 120 volt line
- Input impedance
- 200K Balanced
- Gain
- 25db
- Distortion
- .15% at 150 watts
- Signal to noise
- -90db A weighted 2 volts out. -110 db full power
- Dimensions
- 8 X 10.5 X 15.25
- Weight
- 42 lbs gross 32 net
Manufacturer's Description — Vandersteen
M5-HPA High Pass Mono Block Amplifier with Black or Silver Faceplate
Combining the M5 High Pass Amplifier (M5-HPA), the included 30-inch HPA interface cable, and your Vandersteen speakers yields a fully-powered solution optimized by the factory. This eliminates the need for another amplifier and an external crossover, so plug your pre-amplifier into this M5-HPA, and you are ready to play. The Price Shown Includes High-content Silver and Copper BiWire 30" HPA Interface Cable.
The dramatic reduction in distortion realized by Vandersteen’s patented Perfect-Piston™ drivers (US patent #8320604) made it clear to Richard Vandersteen that the next speaker performance frontier would only be achieved by designing a radical new state-of-the-art amplifier from the ground up. The resulting flagship M7-HPA inspired a more compact, practical solution: the M5-High Pass Amplifier (M5-HPA). This high-pass amplifier is excellent with Quatros, SUB THREEs (combined with any brand loudspeaker), and KĒNTO Carbons.
For years, Vandersteen has employed amplifiers custom-tailored to each design in Vandersteen’s subwoofers and the equalized bass sections in its powered-bass loudspeakers in conjunction with passive high-pass filters for ultimate performance. When employing the HPA Interface cables combined with a powered-bass Vandersteen speaker, the M5-HPA mono-block creates an entirely powered loudspeaker system in which the amplification over the entire frequency range is driven by perfectly tailored amplification.
Richard Vandersteen is responsible for the M5-HPA’s overall design and architecture; the amplifier was developed and built in a partnership between Vandersteen Audio and Dean Klinefelter, a talented designer and engineer.
M5-HPA Design and Performance Features:
- 300-Watts Into 4 Ohms
- Zero-Feedback Design With Dual Single-Ended Circuits Connected By The Speaker Load
- All Signal Transistors NPN Bipolars
- Minimal Circuit Path (only 5 parts in the signal path)
- 10 Separate Power Supplies
- All Analog Circuit Logic – NO DIGITAL PROCESSING OF ANY KIND
- Integral 200 Hz, 100Hz, 80 Hz, 40 Hz, and 20 Hz adjustable High-Pass Filter
- Aluminum Chassis with Noise Isolation Feet from HRS
- No Emitter Resistors in the Output Stage
- Buffer for Output is the Supplied Interface Cable
- DBS - Dielectric-Bias-System
- Made in the USA
