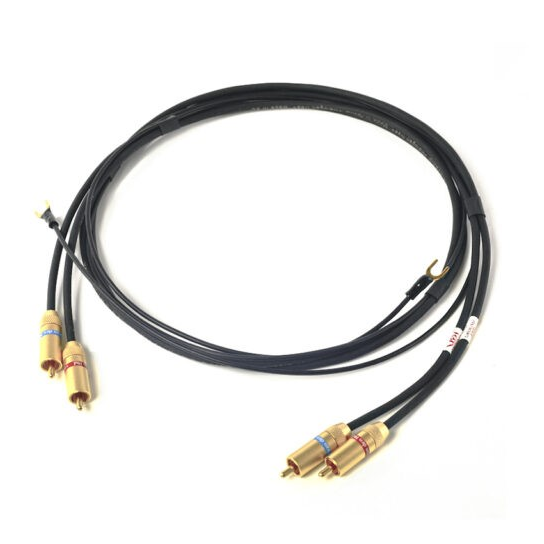

Van den Hul D – 501 Hybrid

The D – 501 Hybrid is regularly used as a microphone cable in critical professional recordings, and in the tone-arm and mixing console industry.

This matte black Hulliflex ® jacketed balanced cable was designed: very flexible and with extremely good electrical qualities. The D – 501 Hybrid is a cable with a very high shielding factor. Not expensive and with very high performance quality, making it excellent suitable as phono interconnect.

The D – 501 Hybrid features:

• The 2 signal lines are each made of 19 x 0.1 mm very high grade OFC wires with the highest density of very pure silver coating.
• As an extra layer around the metal group, we use a Linear Structured Carbon ® (LSC) saturated coating.
• The signal line insulation with white and yellow colours is made of cell-PE, so the stripping can even be done with your fingernails to prevent wire damage on the silver coated copper strands commonly caused by mechanical stripping.
• The resistance per signal lead is: 11.3 Ohm/100 meter.
• The capacitance between the 2 signal leads is: 75 pF/meter.
• Very flexible specially treated artificial fibres are used as a filler to prevent any harm caused by external humidity or chemicals.
• The shielding consists of 96 x 0.10 mm. wires of a high-grade Matched Crystal (MC) OFC with a dense and very pure silver coating and a LSC saturated helical tape.
• The resistance of the shielding is: 2.3 Ohm/100 meter.
• The very flexible black outer jacket is made of migration-free Hulliflex ® to prevent any chemical deterioration over a long period.
• The type printing repeats every 25 cm. (10″) to make cutting of specified lengths easy.
• The external cable diameter is: 4.5 mm.

We have our high-quality RCA connectors, type C – 5.5, available for this typical cable diameter.
