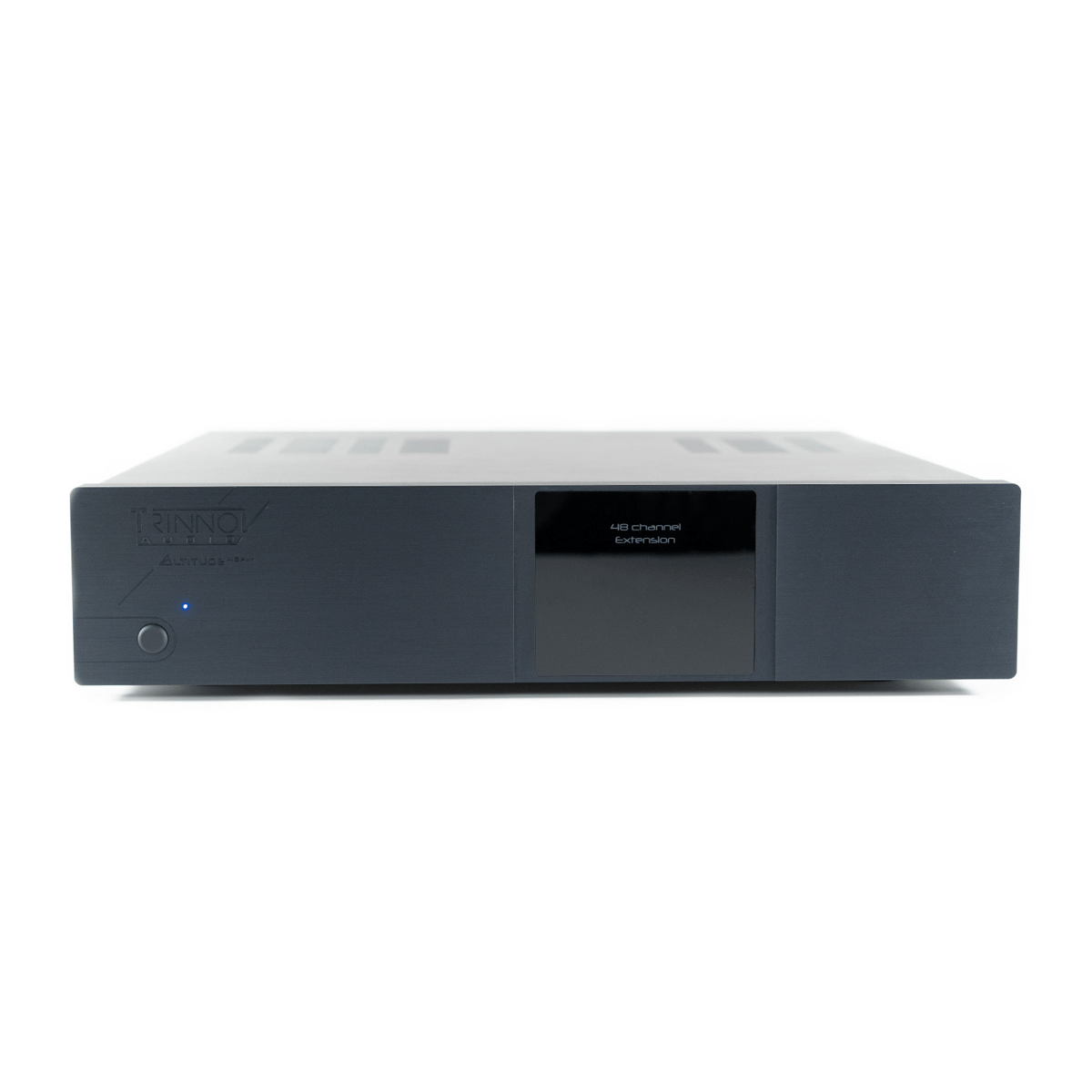

Trinnov Audio Altitude48ext
This unique solution makes it possible to enjoy a true cinematic experience where professional and consumer Dolby Atmos soundtracks can be played optimally across the same high-channel count speaker system, calibrated with Trinnov’s exclusive Optimizer technology
The Perfect Combo
Building on the unique decoding and rendering capabilities of the Altitude32, the Altitude48ext pushes the limit further with up to 48 individual decoded outputs and a total of 64 processing outputs.
The Altitude32 can be unlocked to deliver up to 48 individual outputs. This is made possible by enabling its 32 analog and 16 digital outputs simultaneously.
Full Home Atmos Experience
It allows – for the first time – users to experience the full Home Atmos experience with its 24.1.10 layout, while still allowing more possibilities in term of bass management or multi-amping and remapping.
However, that solution requires an AES multi-channel High-end DAC that could compete with Altitude’s own renowned DAC: Trinnov’s solution to that problem is Trinnov Altitude48ext
Trinnov Optimizer
Our world-renowned Optimizer technology is used in nearly 2,000 studios across the globe and almost 10,000 high-performance installations worldwide.
The Altitude48ext provides an extra 32 channels of Optimization, bring the total number of processing outputs to 64.
Including our exclusive semi-automatic Active Crossovers calibration, it is the perfect solution to drive large amounts of active speakers.
The increased number of processing channels can also be used to declare and align as many additional subwoofers as needed by your system.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Digital Audio Connectivity
- Digital Inputs (DB25): x1 (16 channels)
- Analogue Audio Connectivity
- Balanced Inputs (XLR) x8 Balanced Outputs (XLR) x8 Balanced Outputs (DB25) x4 (32 Channels) Input Impedance 20k Ohms Analogue DB25 Wiring TASCAM Pinout
- Audio Processing
- ADC Resolution / Sampling Rate 24 bits / 48 kHz DAC Resolution / Sampling Rate 24 bits / 48 kHz A/D Signal-To-Noise Ratio 119 dB (A-Weighted) D/A Signal-To-Noise Ratio 118 dB (A-Weighted) Reference Level +18dBu @ 0dBFS (Balanced) Clock / Jitter attenuation > 50 dB above 100Hz
- Hardware
- Processor Intel Multicore CPU Data Precision 64 bits, floating point Cooling System Custom heat sinks & silent fans Safety Components AntiPop relays on each output
- Power Supply
- Power Requirement 240V AC / 50-60 Hz. Option: 130V AC Power consumption 90W Mains fuse 1A slow blow Internal PSUs Separated supplies for Audio and Processing
- Weight & Dimensions
- Dimensions (W x H x D) mm 442 x 102 x 438 Dimensions (W x H x D) inches 17 1/2" x 4" x 17 1/4 " Shipping box dimensions (W x H x D) cm 74 x 59 x 28 Weight 10.2kg / 22.5lbs Shipping weight / volume 15kg / 0.131 M3 Rackmounting 2U - Rack Ears Included
- Warranty
- Standard Warranty 5 year Transferable Yes
Manufacturer's Description — Trinnov Audio
This unique solution makes it possible to enjoy a true cinematic experience where professional and consumer Dolby Atmos soundtracks can be played optimally across the same high-channel count speaker system, calibrated with Trinnov’s exclusive Optimizer technology
The Perfect Combo
Building on the unique decoding and rendering capabilities of the Altitude32, the Altitude48ext pushes the limit further with up to 48 individual decoded outputs and a total of 64 processing outputs.
The Altitude32 can be unlocked to deliver up to 48 individual outputs. This is made possible by enabling its 32 analog and 16 digital outputs simultaneously.
Full Home Atmos Experience
It allows – for the first time – users to experience the full Home Atmos experience with its 24.1.10 layout, while still allowing more possibilities in term of bass management or multi-amping and remapping.
However, that solution requires an AES multi-channel High-end DAC that could compete with Altitude’s own renowned DAC: Trinnov’s solution to that problem is Trinnov Altitude48ext
Trinnov Optimizer
Our world-renowned Optimizer technology is used in nearly 2,000 studios across the globe and almost 10,000 high-performance installations worldwide.
The Altitude48ext provides an extra 32 channels of Optimization, bring the total number of processing outputs to 64.
Including our exclusive semi-automatic Active Crossovers calibration, it is the perfect solution to drive large amounts of active speakers.
The increased number of processing channels can also be used to declare and align as many additional subwoofers as needed by your system.
