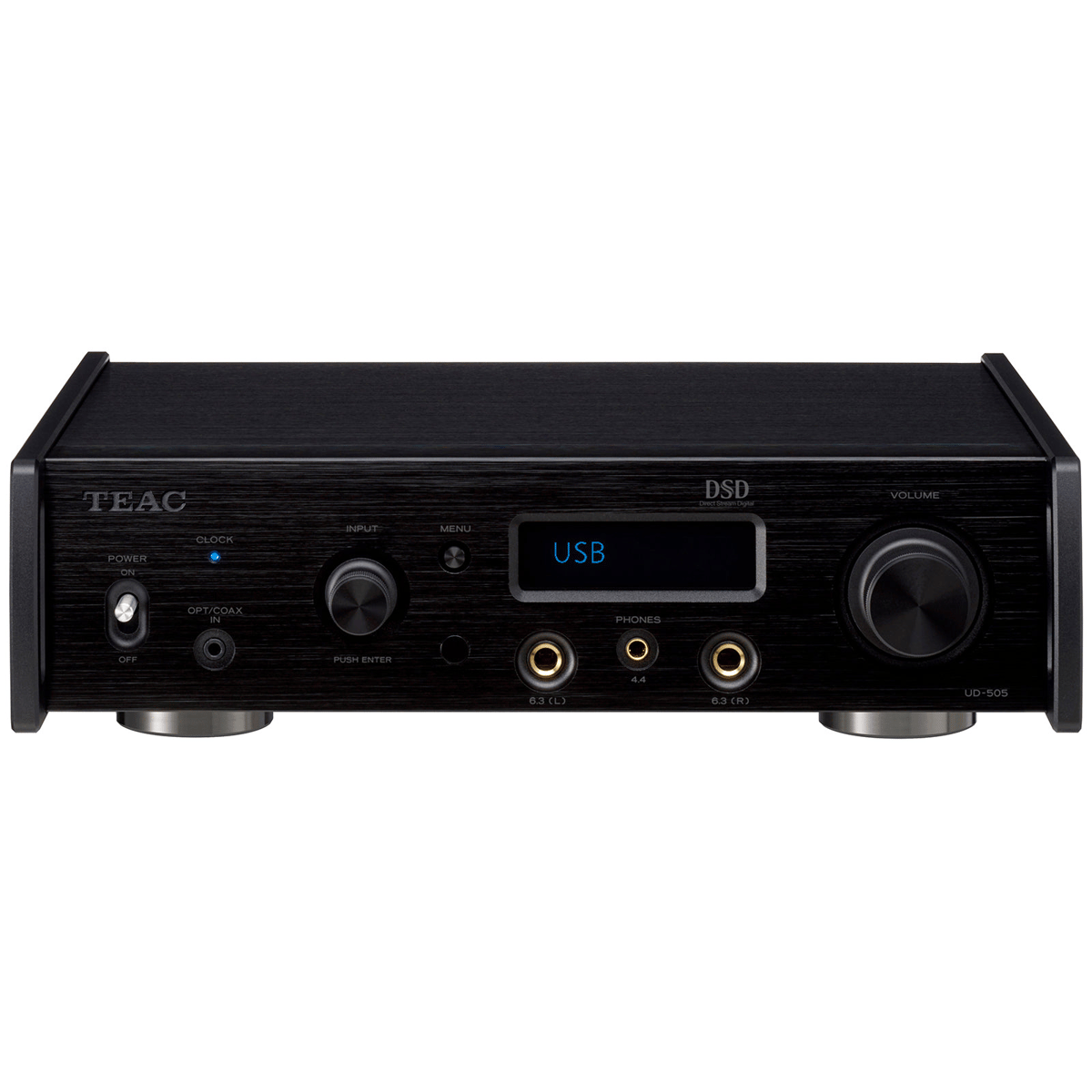

The UD-505-X is a class-leading dual monaural USB DAC with an integrated fully-balanced headphone amplifier that fuses high-end audio design concepts and TEAC’s decades of audio design experience, sized to fit in any space.

The dual-mono structure processes stereo signals with higher purity, and the D/A converter section uses one ESS Technology ES9038 Q2M in each of the left and right channels.

We have employed one DAC chip, which is a crucial component for digital audio, in each of the stereo channels. The ESS Technology ES9038Q2M SABRE32 Reference DAC that we use has a strong reputation in the high-end audio market. Using 32-bit HyperStream® II DAC architecture and Time Domain Jitter Eliminator, which are ESS original technologies, an outstanding dynamic range is realized and linearity is increased in the D/A conversion. As a result, clear and accurate audio playback with superior.

A dual monaural circuit configuration is used throughout, from the power supply (including power transformers) to the D/A converters in the digital section and the Analog output stage. From the high-performance D/A converters to the massive toroidal-core power transformers, each element is configured for single-channel processing. This prevents mutual interference effects while reproducing a rich acoustic expressiveness. In addition, the Analog audio signals of both the left and right channels are processed in full balanced mode for lossless audio.

In addition to conventional SBC and AAC codecs, the UD-505-X also supports LDAC(24bit/96kHz Hi-Res audio transmission), and QualcommaptXHD, a codec that uses 24bit/48kHz format transmission. These allow you to playback playlists on your smartphone and tablet wirelessly.

Instead of referencing an unstable and noisy PC clock during USB audio playback, a more accurate and on-board clock is generated by a high-precision, low phase-noise, audio-grade crystal oscillator for USB asynchronous transfer mode. The UD-505-X accommodates two onboard clocks exclusively for 44.1kHz and 48kHz sampling frequencies and applies the appropriate one to incoming digital signals - those that are multiples of 44.1k or 48k - to reproduce identical sound to the original by eliminating jitter effects on the audio signal.

In addition, an external 10MHz clock input is also provided, to synchronize with an even higher-precision master clock generator, such as the TEACCG-10M/CG-10M-A, for yet further upgraded audio playback with excellent sound quality.

Employing RDOT-NEO (Refined Digital Output Technology NEO), a fluency algorithm that renders digital audio signals smoothly, the UD-505-X up-converts PCM digital signals up to 384kHz/32bit PCM and 24.5MHz DSD. With the up-conversion function activated, you will hear an improvement in quality, even with music you are familiar with.

When transferring large volumes of digital data for Hi-Res audio through USB cables, large variations can occur in the processing loads of the sending computer and the receiving USB DAC.

This can cause sound to drop out and other problems to occur. However, with our USB transmission technology – dubbed "Bulk Pet" – a fixed amount of data is transmitted constantly, leveling out the processing burden on both devices and contributing to stable data transmission. Changing the processing burden on the computer directly affects audio quality so users can select the setting they prefer (from four transmission modes).

This allows you to choose the best filter according to the input file format and music style. Since the filter can be changed with a single operation of the included remote control, you can easily enjoy the differences in the subtle sound nuances of each filter type. The unit can also be used with no enabled filters.

Two oversized, high-capacity toroidal-core power transformers are employed in the UD-505-X, supplying stable, individual current sources for each of the left and right channels. This means neither channel will be affected by changes in the power consumption of the other during digital processing.

We employed the TEAC-HCLD 2 for the analog output circuit. This is a further improved version of the TEAC-HCLD circuit enhanced-current output buffer amp that increases crucial current output capacity (HCLD: High Current Line Driver). This model now uses line buffer ICs with extremely high current output capacity. By using a positive-negative two-circuit structure for each channel, the drive can be differential with balanced output and parallel with unbalanced output. Transmitting audio signals without degrading their dynamism becomes possible with increased current supply capacity.

TEAC-QVCS four-circuit-structure high-precision volume control newly incorporated for preamp circuits

TEAC-QVCS (Quad Volume Control System) is used for the volume circuit. This electronic volume control is a variable gain amp type comprised of four discrete circuits for left, right, positive and negative (L+, L−, R+, R−). By placing the variable gain amp volume control, which processes in analog, in the audio signal path on the circuit board, issues with noise resulting from diverging wiring are avoided.
Furthermore, this TEAC-QVCS enables volume adjustment in 0.5dB increments, allowing you to set the perfect volume for your audio system or headphones.

TEAC-QVCS (Quad Volume Control System) is used for the volume circuit. This electronic volume control is a variable gain amp type comprised of four discrete circuits for left, right, positive and negative (L+, L−, R+, R−). By placing the variable gain amp volume control, which processes in analog, in the audio signal path on the circuit board, issues with noise resulting from diverging wiring are avoided.

Furthermore, this TEAC-QVCS enables volume adjustment in 0.5dB increments, allowing you to set the perfect volume for your audio system or headphones.

In addition to the dual conventional 6.3mm (¼") TRS jacks for a balanced connection, the UD-505-X employs a 4.4mm 5-pole headphone jack for a balanced drive. At the 6.3mm TRS jack, you can enjoy 3 kinds of drive types, an unbalanced connection to drive up to 2 sets of headphones, and an active-ground drive that is effective to improve the silence and present the sensitive sound, as well as a balanced connection.

It forcefully drives the ground, by lowering the ground level to 0V, providing an ideal ground condition (rather than just connecting to the conventional ground). This means it also suppresses hum noise from the power supply and enhances the purity of silent pauses by lowering the noise floor. Subtle detail, such as the breathing of artists and the textures of sounds, will feel even more convincing.

Since the entire body is constructed from metal panels that are resistant to external noise, intrusion of electromagnetic noise generated by computers and other devices is suppressed. A clean internal environment with little noise has been realized even in conditions that are difficult for audio equipment. Furthermore, 8mm-thick aluminum panels covering both sides of the all-metal chassis provide a strong and stable structure that prevents twisting and bending. Place it on a desk, side table, or in any other small space.

The UD-505-X is equipped with both balanced and unbalanced analog audio outputs. A pair of XLR connectors and another pair of RCA connectors - each gold-plated - are symmetrically laid out, hinting at the dual monaural arrangement inside, and allowing a wide range of possible audio configurations. A wide-spaced pitch layout for the RCA outputs accommodates professional-grade plugs with large-diameter shells. The UD-505-X has a total of 5 digital inputs: USB audio, coaxial, optical on the rear panel, and a combination jack on the front panel (for coaxial and optical, supporting PCM 24bit/192kHz and DSD64 (2.8MHz) in DoP format).

Our newly-developed original Stressless Foot design with three support points enables stable placement of the unit so that it is not impacted by slight irregularities in the surface beneath it. Compared to the original feet used in previous designs, these feet are only partially fixed to the chassis. This design was developed based on the concept that by allowing the feet to vibrate freely, more natural sound reverberations could be achieved. The tops of the conical feet, which are made of machined steel, are attached so that they hang from the bottom of the chassis and swing freely when the unit is lifted. While maintaining a sense of placement like that of the pin-point spiked feet used by previous models, this design enables more natural rich reverberations.

A semi-floating structure is newly used for the top panel. It has achieved a sound with an excellent sense of openness.
