• Full range surface-mount loudspeaker for indoor and outdoor installation applications




• 30 Watts continuous, 120 Watts peak power




• 6.5" paper cone, coated driver with butyl rubber surround for enhanced durability and long-term reliability




• 0.79" ferrofluid-cooled soft dome neodymium high-frequency driver




• 90° constant directivity dispersion for optimum coverage




• EN54-24:2008 certified Type A




• UL 1480 certified for general signalling systems




• UV and weather resistant UL 94 V-0 ABS enclosure




• Multiple transformer taps for 70 V and 100 V line systems




• Low insertion loss 30 W line transformer with easily accessible tapping switch




• All components weather resistant to IP64 for outdoor use




• Stylish durable enclosure in a semi matt black paint finish fits unobtrusively in any environment




• Painted perforated aluminium mesh grille with dust protection




• Yoke bracket included for ease of installation




• Phoenix connectors for input and link output

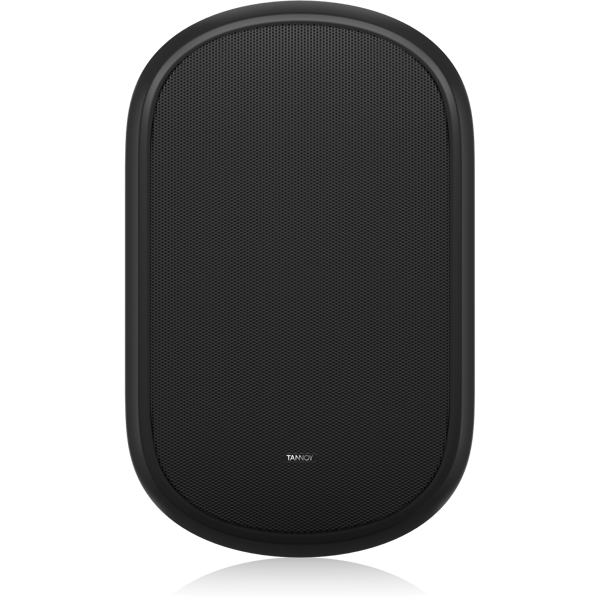

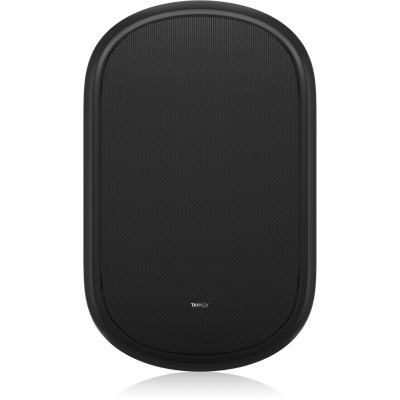

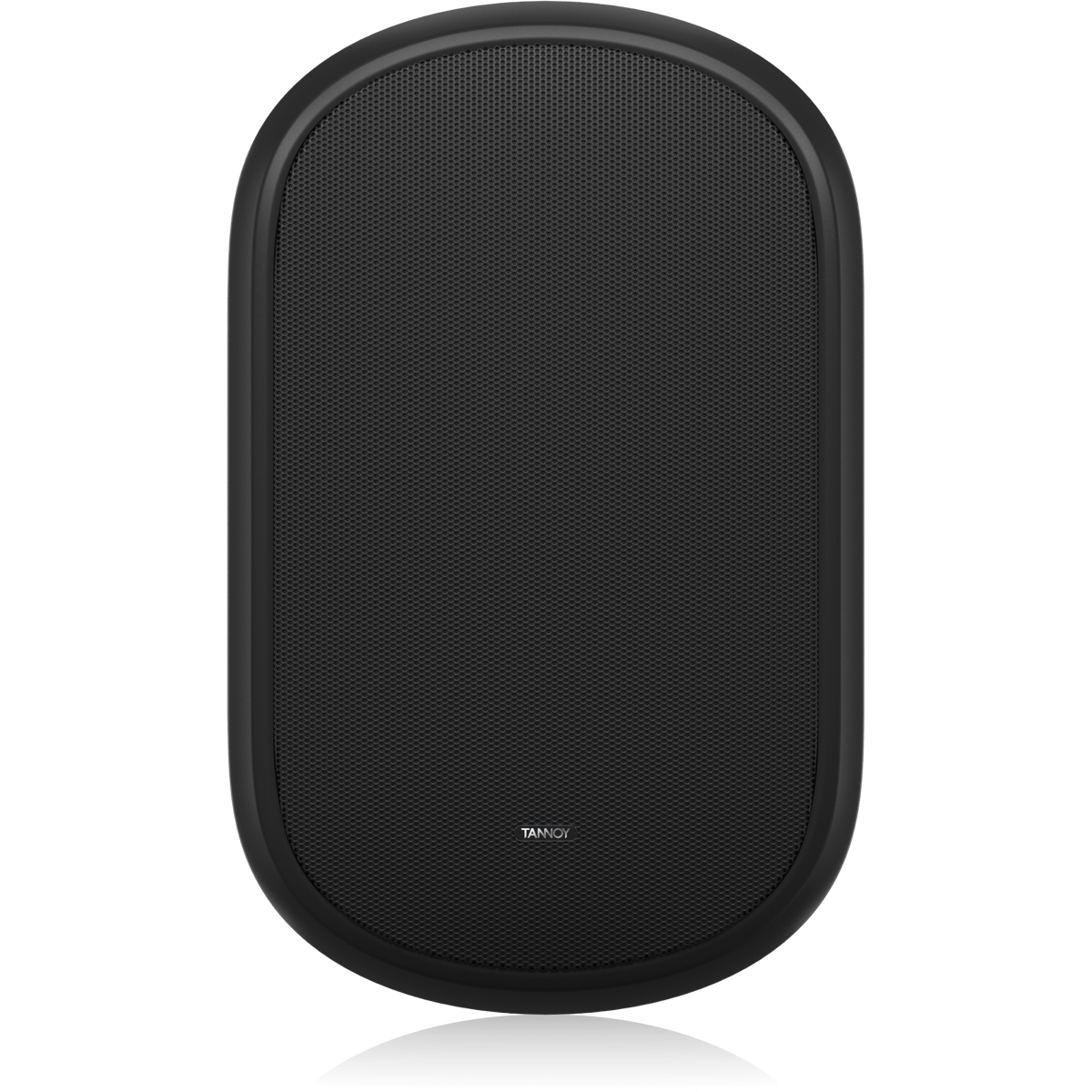

DVS 1.0 SERIES DVS 601

The DVS 601 is a coaxial surface-mount loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the DVS 601 offers the power handling, wide frequency response and low distortion typically found in more expensive products. EN 54-24 certification for fire detection and fire alarm systems makes the DVS 601 the perfect choice where safety is a top priority. The loudspeaker is also UL 1480 certified for fire-protected signalling.

Exceptional Sound and Reliability

The design comprises a 165 mm (6.50") polypropylene full-range driver and 0.79" ferrofluid cooled soft dome high frequency driver mounted in a UV and weather resistant UL 94-V0 ABS enclosure. Dust protection is provided in the form of an attractive aluminium mesh grille. The paper cone material and butyl rubber surround enhance durability and long-term reliability. DVS 601 is specifically designed for applications requiring the combination of excellent music and speech sound quality and exceptional reliability.

Weather-Resistant Enclosure

The elegantly styled semi-matt black moulded enclosure blends beautifully into any décor. Additionally, the DVS 601 design and performance has achieving an IP64 rating, making it an exceptional choice for both indoor and outdoor environments such as indoor swimming pools, health suites, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate.

Attractive and Easy to Install

The highly durable and scuff-resistant ABS enclosure features a white painted finish and comes with an aesthetically pleasing aluminium grille. Installation is quick and easy, thanks to the included colour matched steel mounting bracket and finger-adjustable hardware on the enclosure top and bottom. Phoenix* connectors for input and link output are provided for convenience.

Architecture and Engineering Specifications

The speaker shall be of the full range, two-way passive type consisting of one 6.5" (165 mm) LF driver and one 0.75” (20 mm) HF driver. Performance specifications of a typical production unit shall meet or exceed the following: frequency response, measured with swept sine wave input, shall be flat within ±3 dB from 90 Hz to 20 kHz and within -10 dB from 80 Hz to 20 kHz. Nominal dispersion, at -6 dB points, shall be 90° conical, averaged 1kHz – 10 kHz. Nominal impedance shall be passive: 8 Ohms.

Power handling shall be passive: 30 Watts continuous, 120 Watts peak. Sensitivity, measured on axis, mean averaged over the stated bandwidth, shall be 86 dB, 1 Watt @ 1 metre.  Maximum SPL of 108 dB average measured at 1 m under free field conditions, using unweighted pink noise.

Dimensions: 320 mm high x 201 mm wide x 169 mm deep (12.6" x 7.91" x 6.65"). Net weight: 5.8 kg (12.8 lbs). The loudspeaker system shall be the Tannoy DVS 601. No other loudspeaker shall be acceptable unless submitted data from an independent test laboratory verifies that the above combined performance/size specifications are equalled or exceeded.
