Dual 12" Mid-Bass Large Format Loudspeaker for High Performance Installation Applications

• Mid-bass large-format loudspeaker for high-performance installation applications




• 1,000 Watts continuous, 4,000 Watts peak power




• Dual 12" low-frequency drivers in semi horn-loaded configuration




• For use with VQ full range systems to extend low-frequency pattern control and mid-bass output




• Arrayable form factor allows use in combination with VQ MH mid-high speakers




• Extremely high-efficiency design provides high SPL for modest power input




• Modular design allows for versatile and compact cluster configurations




• Internally braced birch plywood enclosure




• Finished with hard wearing semi-matte black paint




• Rugged powder-coated perforated steel mesh grille




• Integral M10 rigging points for ease of installation




• 2 handles ergonomically integrated into cabinet




• Optional vertical flyware with 10:1 safety ratio (available separately)




• 4 pole twist-lock and barrier strip connectors for input and link output




• Mid-bass large-format loudspeaker for high-performance installation applications




• 1,000 Watts continuous, 4,000 Watts peak power




• Dual 12" low-frequency drivers in semi horn-loaded configuration




• For use with VQ full range systems to extend low-frequency pattern control and mid-bass output




• Arrayable form factor allows use in combination with VQ MH mid-high speakers




• Extremely high-efficiency design provides high SPL for modest power input




• Modular design allows for versatile and compact cluster configurations




• Internally braced birch plywood enclosure




• Finished with hard wearing semi-matte black paint




• Rugged powder-coated perforated steel mesh grille




• Integral M10 rigging points for ease of installation




• 2 handles ergonomically integrated into cabinet




• Optional vertical flyware with 10:1 safety ratio (available separately)




• 4 pole twist-lock and barrier strip connectors for input and link output

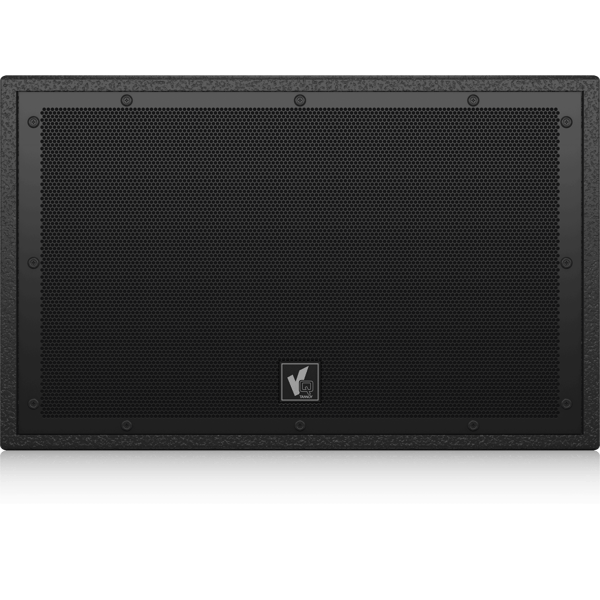

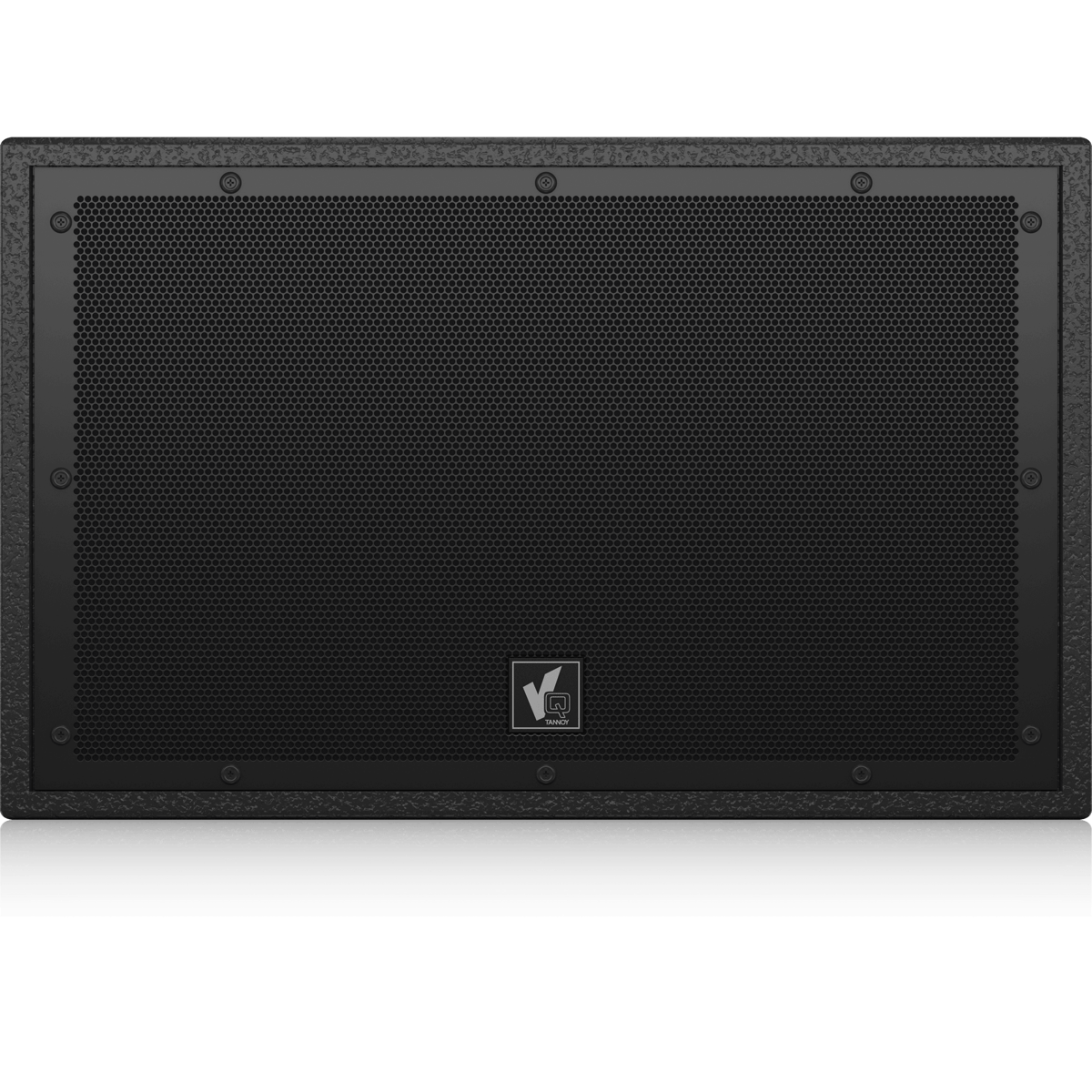

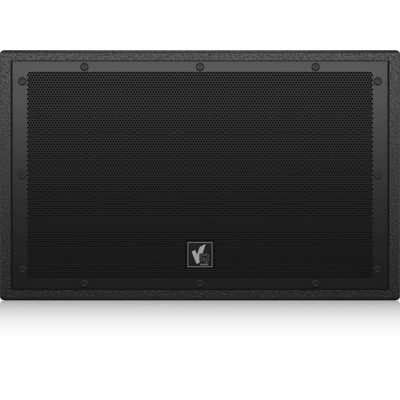

VQ MB

The VQ MB is a high powered low/mid frequency module that replicates the low frequency section of the VQ 60 & VQ 100 full range loudspeakers and can be flown or ground stacked to provide improved LF pattern control with full range or mid/high systems in the VQ series. Two (12”) low frequency transducers offer high power handling and low power compression for high continuous SPL capability. A newly designed LF loading design provides the highest possible sensitivity for low/mid frequency output (105 dB/w). The VQ MB is principally intended for use with the VQ 60, VQ 100, VQ MH & VQ DF full range systems and can be used construct arrays with extended low frequency pattern control. By fixing a VQ MB at the opposing end of a VQ full range loudspeaker we can effectively extend pattern control to below the cutoff point of the Mid/High PSW waveguide.

Comprehensive Installation Package

The VQ 64DF can be configured for use in Single-Amp or Bi-Amp mode, in conjunction with a Lake LM26/44 digital signal processor (DSP) or Lab Gruppen PLM+ or D series platforms.

Exceptional Sound and Reliability

The two (12") low frequency transducers, offer high power handling and low power compression for high continuous SPL capability.
