3 Way Dual 12" Large Format Loudspeaker for High Performance Installation Applications

• 3-way full range large format loudspeaker for high-performance installation applications




• 1,300 Watts continuous, 5,200 Watts peak power




• Dual 12" low-frequency drivers in semi horn-loaded configuration




• Dual Concentric 3.5" and 1.75" diaphragm compression drivers for mid and high frequency reproduction




• Patented PSW waveguide technology provides acoustic centre alignment for coherent wavefront at horn throat




• Phase coherent point source provides exceptional transient response and dispersion control




• 100° conical dispersion allows installation of tightly packed point-source clusters




• Precise time alignment eliminates interference from multiple driver sources




• User configurable for bi-amp and tri-amp operation




• Extremely high-efficiency design provides high SPL for modest power input




• Modular design for versatile and compact cluster configurations




• Internally braced birch plywood enclosure




• Finished with hard wearing semi-matte black paint




• Rugged powder coated perforated steel mesh grille




• Integral M10 rigging points for ease of installation




• 8 handles ergonomically integrated into cabinet




• Optional vertical flyware with 10:1 safety ratio (available separately)




• 4 pole twist-lock and barrier strip connectors for input and link output




• 3-way full range large format loudspeaker for high-performance installation applications




• 1,300 Watts continuous, 5,200 Watts peak power




• Dual 12" low-frequency drivers in semi horn-loaded configuration




• Dual Concentric 3.5" and 1.75" diaphragm compression drivers for mid and high frequency reproduction




• Patented PSW waveguide technology provides acoustic centre alignment for coherent wavefront at horn throat




• Phase coherent point source provides exceptional transient response and dispersion control




• 100° conical dispersion allows installation of tightly packed point-source clusters




• Precise time alignment eliminates interference from multiple driver sources




• User configurable for bi-amp and tri-amp operation




• Extremely high-efficiency design provides high SPL for modest power input




• Modular design for versatile and compact cluster configurations




• Internally braced birch plywood enclosure




• Finished with hard wearing semi-matte black paint




• Rugged powder coated perforated steel mesh grille




• Integral M10 rigging points for ease of installation




• 8 handles ergonomically integrated into cabinet




• Optional vertical flyware with 10:1 safety ratio (available separately)




• 4 pole twist-lock and barrier strip connectors for input and link output

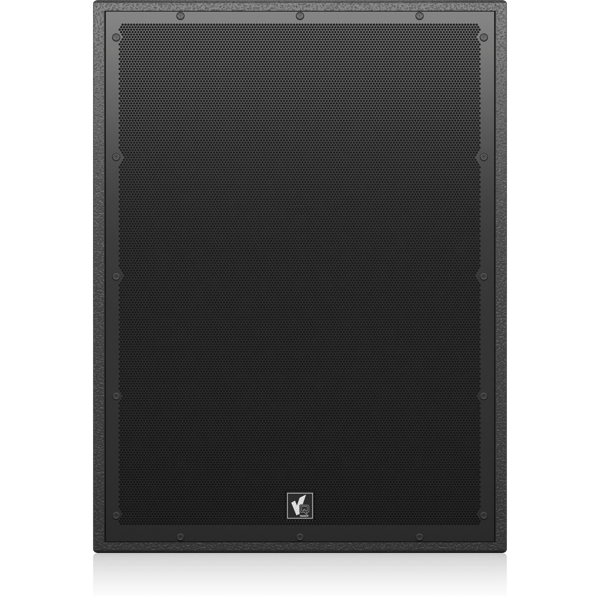

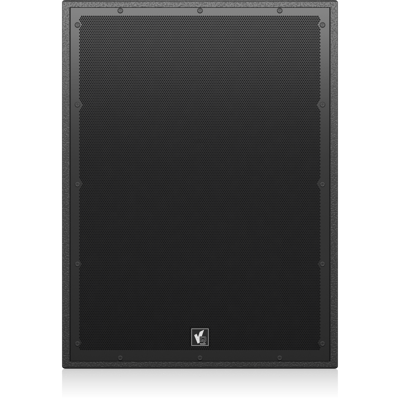

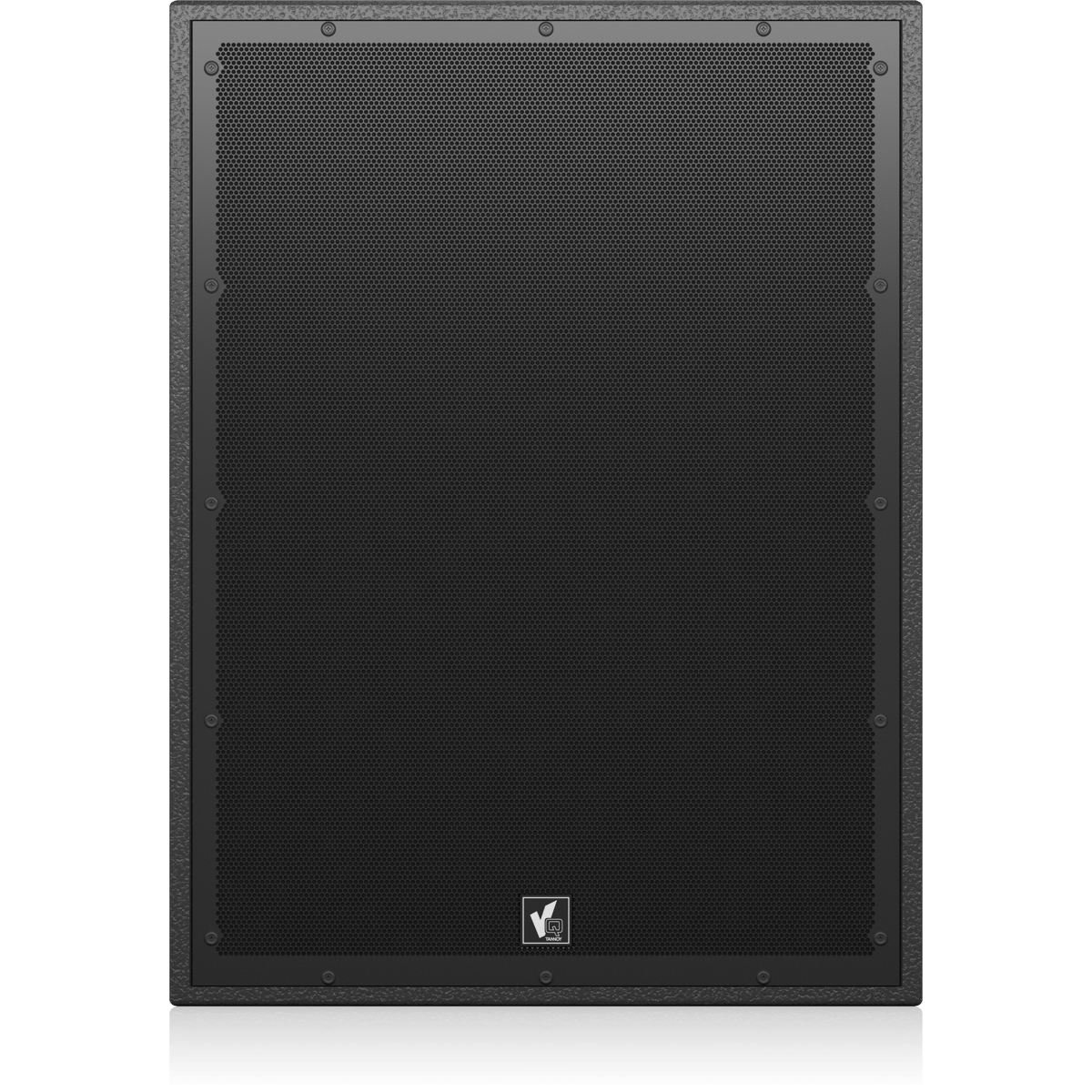

VQ 100

The VQ 100 is a full range, self-powered, three-way loudspeaker system designed for applications which require very high output capability with class leading patten control. The VQ 100 is perfectly suited for use in arrays or singly in demanding applications. Unlike line array solutions, the VQ 100 can produce enough power and clarity to be used individually, or in paired clusters for wider coverage, maintaining your building’s aesthetics and sight lines.

With low frequency extension to 90 Hz, the VQ 100 can be combined with various subwoofers From the VSX series for extended bandwidth.

Comprehensive Installation Package

The VQ 100 can be configured for use in Bi-Amp or Tri-Amp mode, in conjunction with a Lake LM26/44 digital signal processor (DSP) or Lab Gruppen PLM+ or D series platforms.

Exceptional Sound and Reliability

Our unique approach in keeping what is effectively a Dual Concentric behind a single ho gives us many performance advantages. Performance of the VQ 100 in terms of accuracy & sound quality is second to none. The VQ horn design principles provide definitive and measurable advantages over multiple-horn and co-axial designs.

The VQ 100 incorporates a unique driver technology to radiate a coherent single point source for superior dispersion control when coupled to a PSW (Point Source Waveguide). This advanced design aligns the acoustical centres of the transducers providing a single coherent wavefront emanating from the throat. The PSW waveguide achieves an optimum balance of extremely well controlled coverage, smooth frequency response, and natural sound character. The low frequency section, two (12") low frequency transducers, offers high power handling and low power compression for high continuous SPL capability.
