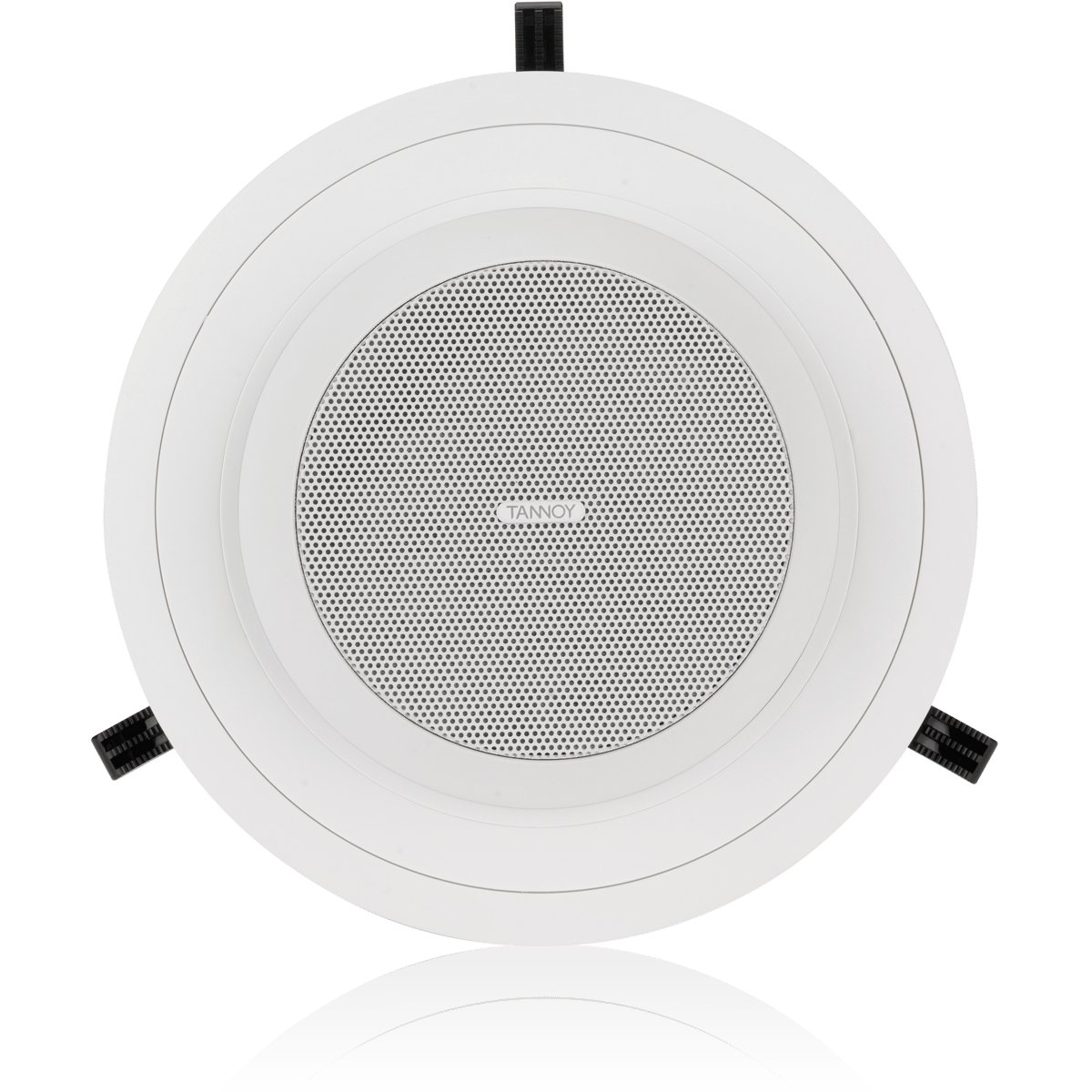

Tannoy CMS 403ICTE

• Full range ceiling loudspeaker for installation applications




• 40 Watts continuous, 160 Watts peak power




• 4" ICT (Inductive Coupling Technology) point source driver for extended frequency range




• Blind Mount enclosure supplied with integral moulded ABS back can




• Integrated single unit construction for ease of installation




• Adjustable tilt angle with 360° rotation to accommodate difficult loudspeaker placements




• High durability design for constant heavy usage in demanding applications




• Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input




• Low insertion loss 30 W line transformer with easily accessible tapping switch




• Optimised for Lab Gruppen low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel




• Semi matt white finish fits unobtrusively in any environment




• Powder coated UV resistant perforated steel mesh grille with dust protection




• Removable grille for custom painting




• Self-aligning 3 way clamp mounting system




• Mounting C-ring and ceiling tile rails included




CMS 3.0 CMS 403ICTE

The CMS 403ICTE is a wide bandwidth 160-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 4" ICT (Inductive Coupling Technology) point source driver with extended frequency range, the CMS 403ICTE delivers consistent broadband directivity with enhanced intelligibility. ICT drivers provide exceptional long-term reliability – and are ideal for constant-usage applications.

Adjustable Tilt Angle

Specifically designed with a self-aligning 3 way clamp system for fast, simple and cost effective installation, the CMS 403ICTE can be angled towards the listener within the fixed ceiling-mounting ring. By discreetly pivoting the loudspeaker towards the desired area of coverage, the challenge of speaker placement in a less than ideal room is easily overcome.

Optimised for Installation

Equipped with a low-insertion loss 30 W transformer with convenient front panel tap switching, CMS 403ICTE features an integral ABS back-can with removable locking screw terminal connector and loop-thru functionality. The paintable powder coated steel mesh grille with dust protection, two tile support rails and one C-ring are all included.

LAB GRUPPEN Ready

The CMS 403ICTE is finished in semi matt white and optimised for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 CMS Series loudspeakers per channel.
