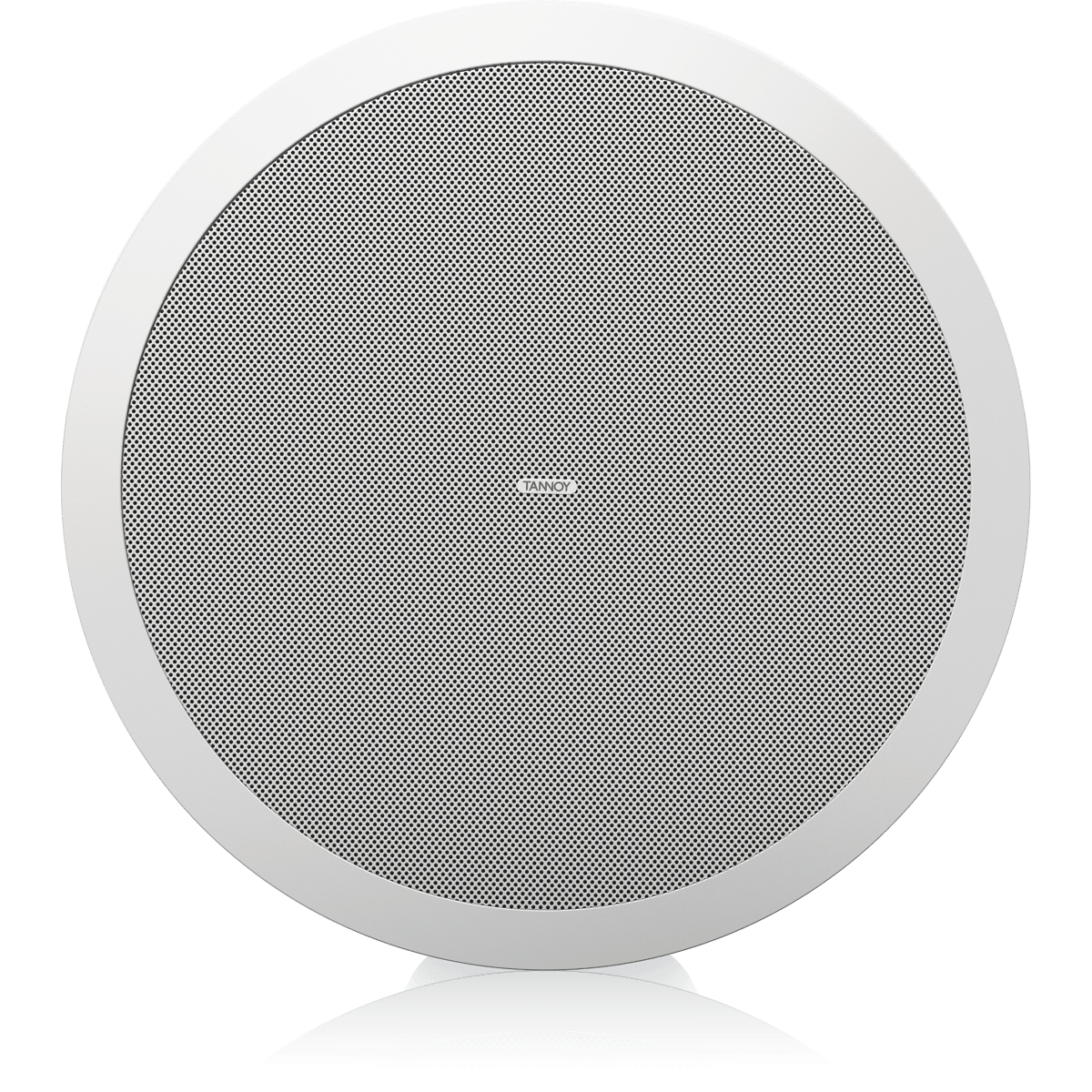

8" Full Range Ceiling Loudspeaker with Dual Concentric Driver with Q-Centric Waveguide for Installation Applications (Blind Mount)

• Full range ceiling loudspeaker for installation applications




• 90 Watts continuous, 360 Watts peak power




• Next generation 8" Dual Concentric driver featuring Omnimagnet technology




• Q-Centric waveguide for tighter vertical or horizontal pattern control




• Torus Ogive waveguide for improved high frequency response and directivity




• Blind Mount version supplied with acoustically enhanced zinc plated steel back can




• Integrated single unit construction for ease of installation




• UL 1480 certified for general signalling systems




• UL 2043 certified for air-handling spaces




• Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input




• Low insertion loss 60 W line transformer with easily accessible tapping switch




• Optimised for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel




• Semi matt white finish fits unobtrusively in any environment




• Powder coated UV resistant perforated steel mesh grille with dust protection




• Removable magnetic grille for custom painting




• Optional ARCO designer grilles available for minimal architectural impact




• Self-aligning 5 way clamp mounting system




• Mounting C-ring and ceiling tile rails included




• Full range ceiling loudspeaker for installation applications




• 90 Watts continuous, 360 Watts peak power




• Next generation 8" Dual Concentric driver featuring Omnimagnet technology




• Q-Centric waveguide for tighter vertical or horizontal pattern control




• Torus Ogive waveguide for improved high frequency response and directivity




• Blind Mount version supplied with acoustically enhanced zinc plated steel back can




• Integrated single unit construction for ease of installation




• UL 1480 certified for general signalling systems




• UL 2043 certified for air-handling spaces




• Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input




• Low insertion loss 60 W line transformer with easily accessible tapping switch




• Optimised for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel




• Semi matt white finish fits unobtrusively in any environment




• Powder coated UV resistant perforated steel mesh grille with dust protection




• Removable magnetic grille for custom painting




• Optional ARCO designer grilles available for minimal architectural impact




• Self-aligning 5 way clamp mounting system




• Mounting C-ring and ceiling tile rails included




CMS 3.0 CMS 803DC Q

The CMS 803DC Q is a full bandwidth 360-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). The “Q” variant of CMS 803DC is specifically designed for high-ceiling applications, incorporating an extended waveguide design with a tight, uniform 60-degree conical dispersion pattern. Thanks to an all-new proprietary 8" Dual Concentric point-source driver with Omnimagnet technology on a Torus Ogive Waveguide, the UL certified CMS 803DC Q delivers more consistent broadband directivity with enhanced intelligibility – plus highly accurate and linear response.

Optimised for Installation

Specifically designed with a 5 way self-aligning clamp system for fast, simple and cost effective installation, CMS 803DC Q features an acoustically enhanced zinc plated steel back can, and a removable locking screw terminal connector with loop-thru functionality. A low-insertion loss 60 W transformer with convenient front panel tap switching, paintable powder coated steel mesh grille with dust protection, two tile support rails and one C-ring are all included. An Arco style grille, which conceals the entire unit for aesthetic purposes, and plaster (mud) ring are available separately.

LAB GRUPPEN Ready

The CMS 803DC Q is finished in semi matt white and optimised for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 CMS Series loudspeakers per channel.
