• Full range ceiling loudspeaker for installation applications




• 60 Watts continuous, 240 Watts peak power




• 6" ICT (Inductive Coupling Technology) point source driver for extended frequency range




• Blind Mount version supplied with acoustically enhanced zinc plated steel back can




• Integrated single unit construction for ease of installation




• High durability design for constant heavy usage in demanding applications




• UL 1480 UUMW certified for life safety applications




• UL 2043 certified for air-handling spaces




• Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input




• Low insertion loss 60 W line transformer with easily accessible tapping switch




• Optimised for Lab Gruppen low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel




• Semi matt white finish fits unobtrusively in any environment




• Powder coated UV resistant perforated steel mesh grille with dust protection




• Removable magnetic grille for custom painting




• Optional ARCO designer grilles available for minimal architectural impact




• Self-aligning 4 way clamp mounting system




• Mounting C-ring and ceiling tile rails included




CMS 3.0 CMS 603ICT LS

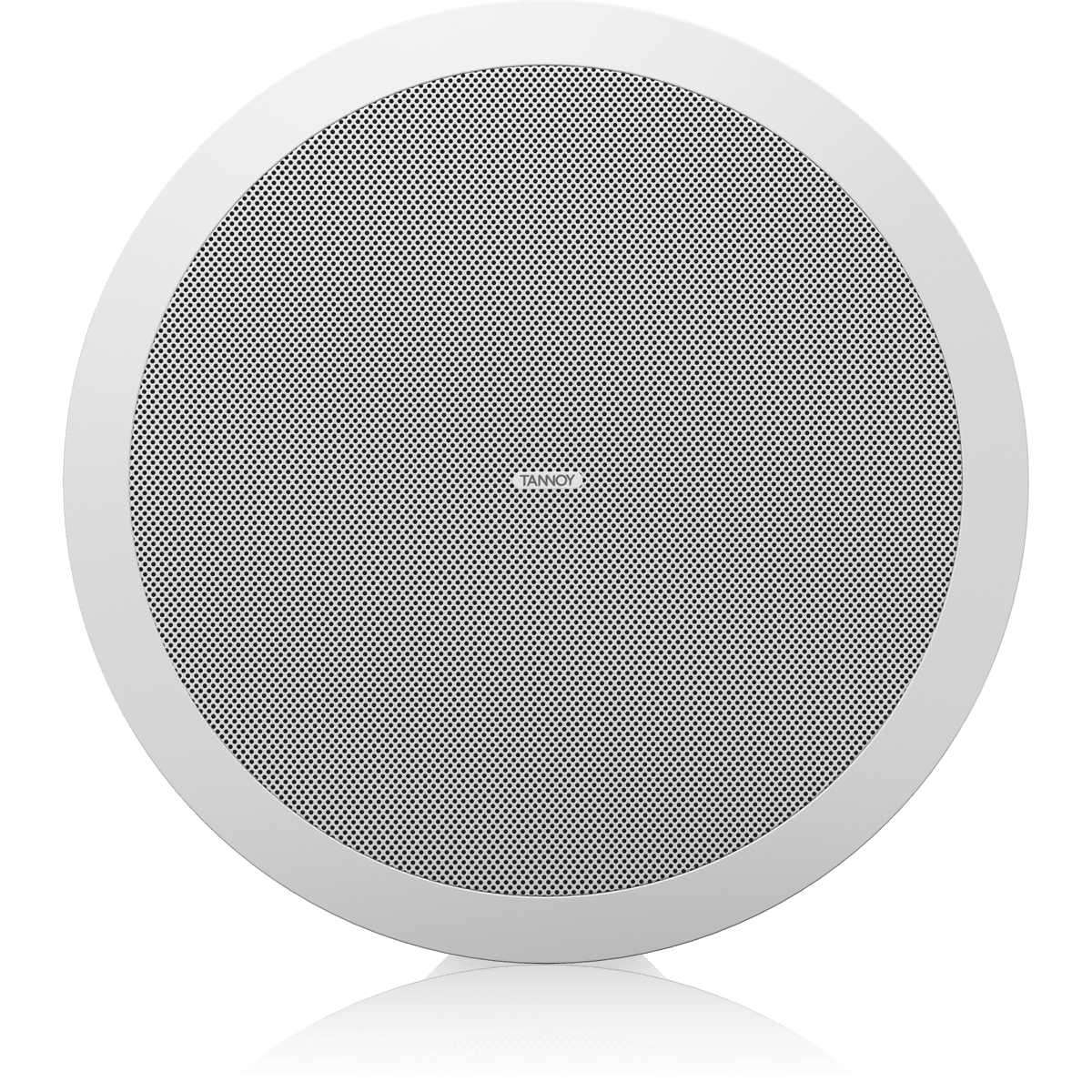

The CMS 603ICT LS is a wide bandwidth 240-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0), and is UL certified for use with non-DC supervised systems. Thanks to an all-new proprietary 6" ICT (Inductive Coupling Technology) point source driver with extended frequency range, the CMS 603ICT LS delivers consistent broadband directivity with enhanced intelligibility. ICT drivers provide exceptional long-term reliability – and are ideal for constant-usage applications.

Optimised for Installation

Specifically designed with a self-aligning 4 way clamp system for fast, simple and cost effective installation, CMS 603ICT LS features an acoustically enhanced zinc plated steel back can with removable locking screw terminal connector and loop-thru functionality. A low-insertion loss 60 W transformer with convenient front panel tap switching, paintable powder coated steel mesh grille with dust protection, two tile support rails and one C-ring are all included. An Arco style grille, which conceals the entire unit for aesthetic purposes, and plaster (mud) ring are available separately.

LAB GRUPPEN Ready

The CMS 603ICT LS is finished in semi matt white and optimised for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 CMS Series loudspeakers per channel.
