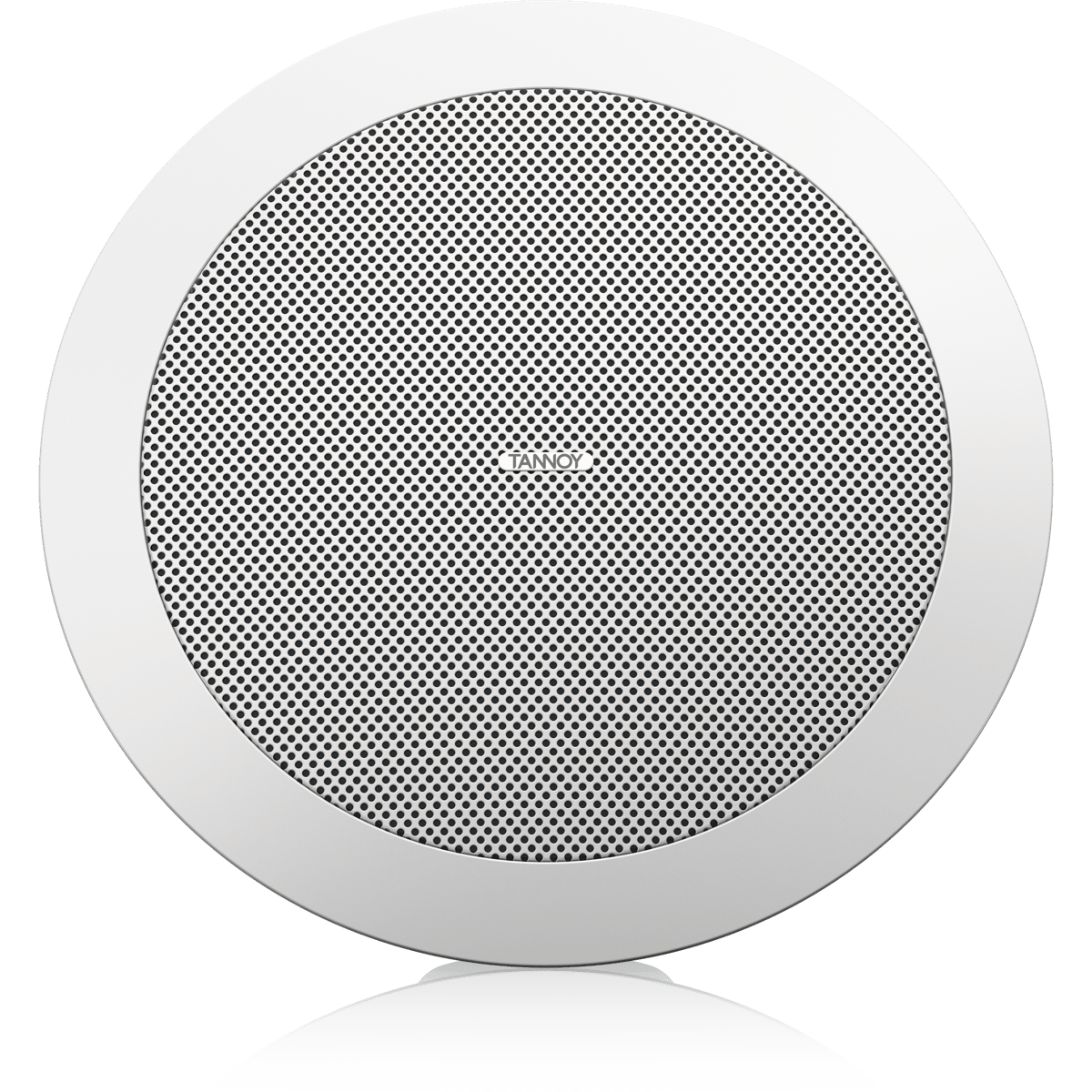

Tannoy CVS 4 MICRO (EN 54)

View at Tannoy

4" Coaxial In-Ceiling Loudspeaker with Shallow Back Can for Installation Applications (EN 54 Certified)

Coaxial full range low profile ceiling loudspeaker for installation applications
40 Watts continuous, 160 Watts peak power
Shallow back can for limited cavity space
4" mineral-loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
0.75" ferrofluid cooled soft dome neodymium high-frequency driver
Wide constant directivity dispersion for optimum coverage
EN 54-24 certified for fire detection and fire alarm systems
UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure
Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input
Low insertion loss 15 W line transformer with easily accessible tapping switch
Semi-matte white finish fits unobtrusively in any environment
Powder-coated perforated steel mesh grille with dust protection
Mounting C-ring and ceiling tile rails included
Phoenix connector with steel cover and EN 54 compliant strain relief clamping mechanism for fire-rated cable

Coaxial full range low profile ceiling loudspeaker for installation applications
40 Watts continuous, 160 Watts peak power
Shallow back can for limited cavity space
4" mineral-loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
0.75" ferrofluid cooled soft dome neodymium high-frequency driver
Wide constant directivity dispersion for optimum coverage
EN 54-24 certified for fire detection and fire alarm systems
UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure
Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input
Low insertion loss 15 W line transformer with easily accessible tapping switch
Semi-matte white finish fits unobtrusively in any environment
Powder-coated perforated steel mesh grille with dust protection
Mounting C-ring and ceiling tile rails included
Phoenix connector with steel cover and EN 54 compliant strain relief clamping mechanism for fire-rated cable

CVS 4 MICRO (EN 54)

The CVS 4 MICRO (EN 54) is a compact 160-Watt shallow back can ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 4 MICRO (EN 54) offers the power handling, wide frequency response and low distortion more typically found in a studio reference monitor than a ceiling loudspeaker. The resulting sound is warm, with a nuanced and pristine clarity that envelopes the listener – without intruding. EN 54-24 certification for fire detection and fire alarm systems makes the CVS 4 MICRO (EN 54) the perfect choice where safety is a top priority.

Exceptional Sound and Reliability

The design comprises a 100 mm (4.00") mid bass driver with a coaxially mounted 19 mm (0.75") high frequency section mounted in an injection moulded semi matt white front baffle made of UV/weather resistant UL 94 V-0 ABS material that fits unobtrusively into any environment. The mineral loaded polypropylene cone material and nitrile rubber surround enhance durability and long-term reliability. Thanks to the shallow back can depth of less than 4" (98.3 mm), CVS 4 MICRO (EN 54) is perfect for applications where above-ceiling space is limited, but exceptional sonic quality and reliability are a requirement.

Comprehensive Installation Package

Supplied with an integral plated steel shallow back can, Phoenix * connector with steel cover, and an EN 54 compliant strain relief clamping mechanism for fire rated cable, the CVS 4 MICRO (EN 54) satisfies the vast majority of installation application requirements. Input is via a low insertion loss 15 W line transformer with multiple taps for 70 V and 100 V line systems or 6 Ohm direct input. Installation is quick and easy with two tile support rails and one C-ring included in the package. A plaster (mud) ring is available as an optional accessory.
