Steinway Lyngdorf Head unit processor
Steinway & Sons

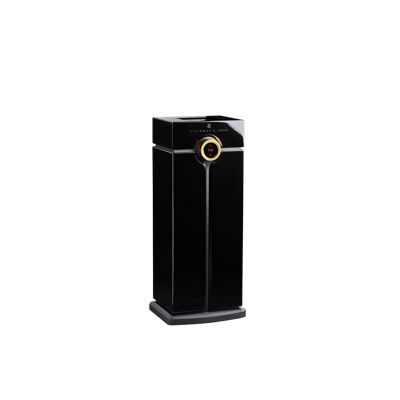

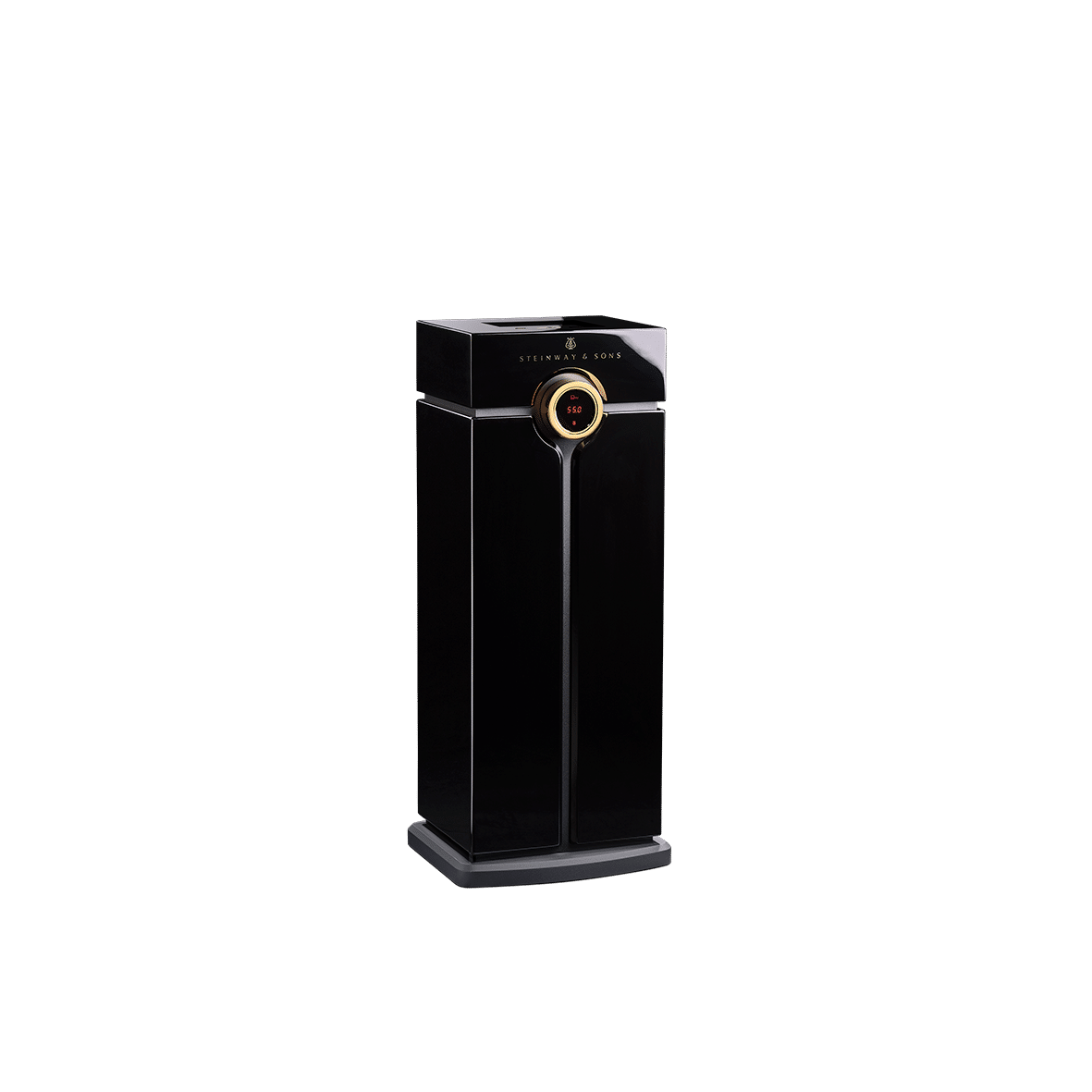

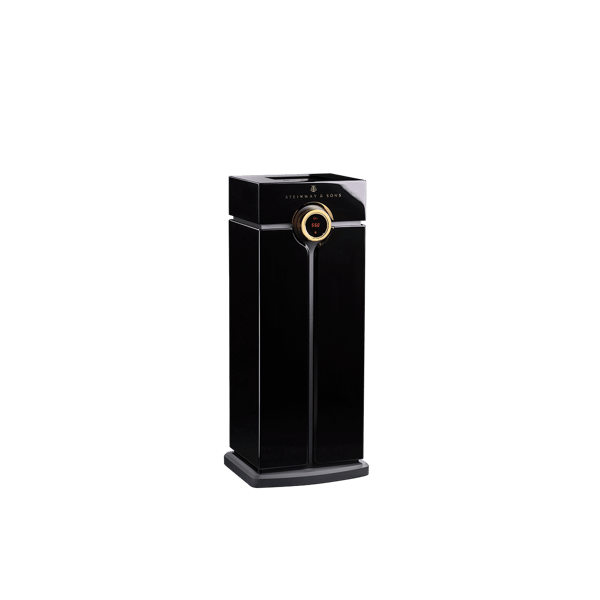

The Head Unit Processor is a testament to both craftsmanship and control. Its distinctive volume wheel is crafted from 1 kg of gold-plated brass and mounted on precision-machined Swiss bearings. The Head Unit Processor is an in-room statement processor. Together with the iconic volume wheel and piano lacquer, it is the perfect partner for the equally outstanding Steinway loudspeakers.
Media center for surround sound systems
Now featuring HDMI inputs and outputs, the Head Unit Processor can function as a media center for high-performance stereo systems and surround sound systems (up to 12 native channels). It also supports immersive video formats, including 8K with the new high dynamic range formats.
Unique features
Iconic volume wheel design
The gold-plated volume wheel with double Swiss bearings is iconic for Steinway Lyngdorf – it dates back to the company’s very first product, the milestone-setting digital amplifier Lyngdorf Millennium. Adjusting the volume level is a haptic experience, while the central display shows volume level and other information.
Full control panel on top
While the front wheel is intuitively reduced to controlling the volume level, the top panel gives full control over all functions. Some main functions have direct buttons, while the scroll wheel and push button in the middle operate the menu shown in the main display. The Head Unit can also be controlled over the Steinway Lyngdorf app.
Complete audio/video media center
The elegant design hides a complete media control center. It can be the centerpiece of a pure stereo music system capable of high-res audio, or even control the audio and video of a multichannel home cinema. The Head Unit also incorporates RoomPerfect™, a technology to adapt the Steinway & Sons speakers to the acoustics of your room, always ensuring the best sound performance.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
No reviews found yet
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Decoding
- 12 native channels, Dolby Atmos®, Dolby Digital, EX & Plus, Dolby TrueHD, DTS:X, AURO-3D®, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS 96/24, DTS-HD High Res. Audio, DTS-HD Master Audio
- Post processing
- Dolby surround, AURO-MATIC®, DTS Neural:X, DTS NEO:X
- Audio inputs
- 3 x HDMI™ (≤192kHz/24bit) 3 x S/P-DIF coaxial inputs (≤192kHz/24bit) 4 x S/P-DIF optical inputs (≤96Hz/24bit) 1 x USB audio input (≤192/24bit) 1 x microphone input (XLR) for RoomPerfect™ calibration
- Audio outputs
- 1 x S/P-DIF coaxial digital output (fixed 96kHz/24bit) 1 x RCA analog output
- Audio specifications
- Frequency response: ±0,5dB from 20 to 20,000 Hz Total harmonic distortion: 0.005% max from 20 to 20,000 Hz
- Interface options
- RS232, Ip, Web interface, Ihiji, Remote Control App on iOS and Android platforms
- EQ
- RoomPerfect™ 32 x adjustable voicings holding ≤8 shelving, high/low pass or parametric filters with adjustable gain and Q
- Mediaplayer
- Internet radio (vTuner, airable) AirPlay 2 Spotify Connect Tidal Connect with Dolby Atmos Music Roon Ready DLNA Support of FAT32 based media storage
- Video inputs
- 3 x HDMI 2.1 (HDCP 2.3) Accepts 8k30 RGB/YCbCr 4:4:4 10-bit video 8k60 YCbCr 4:2:0 10-bit high definition video 4k120 4:4:4 10-bit high frame rate video Variable refresh rate (VRR) Fast vactive (FVA) Auto low latency mode (ALLM) Accepts HDR, Dolby Vision™ and HLG
- Video outputs
- 2 x HDMI 2.1 (HDCP 2.3)
- Video scaling
- Upscaling of all video to 4K ultra high definition No downscaling of 4K video
- Control interfaces
- 1 x DB9 RS232 connector 2 x IR sensor inputs 1 x IR output (loop from one of the sensor inputs) 1 x trigger input 4 x trigger outputs 1 x RJ45 ethernet LAN connector 2 x USB connectors 1 x SD card slot (Backup – storage for system software and settings)
- Optional upgrade
- Iconic RF remote
- Placement options
- Freestanding
- Cooling
- Passive / no noise
- Dimensions
- 440 x 1042 x 396 mm / 17.3 x 40.9 x 15.6 inches
- Weight
- 57 kg / 125.7 lb
- Finish
- Black piano finish, custom finishes available
