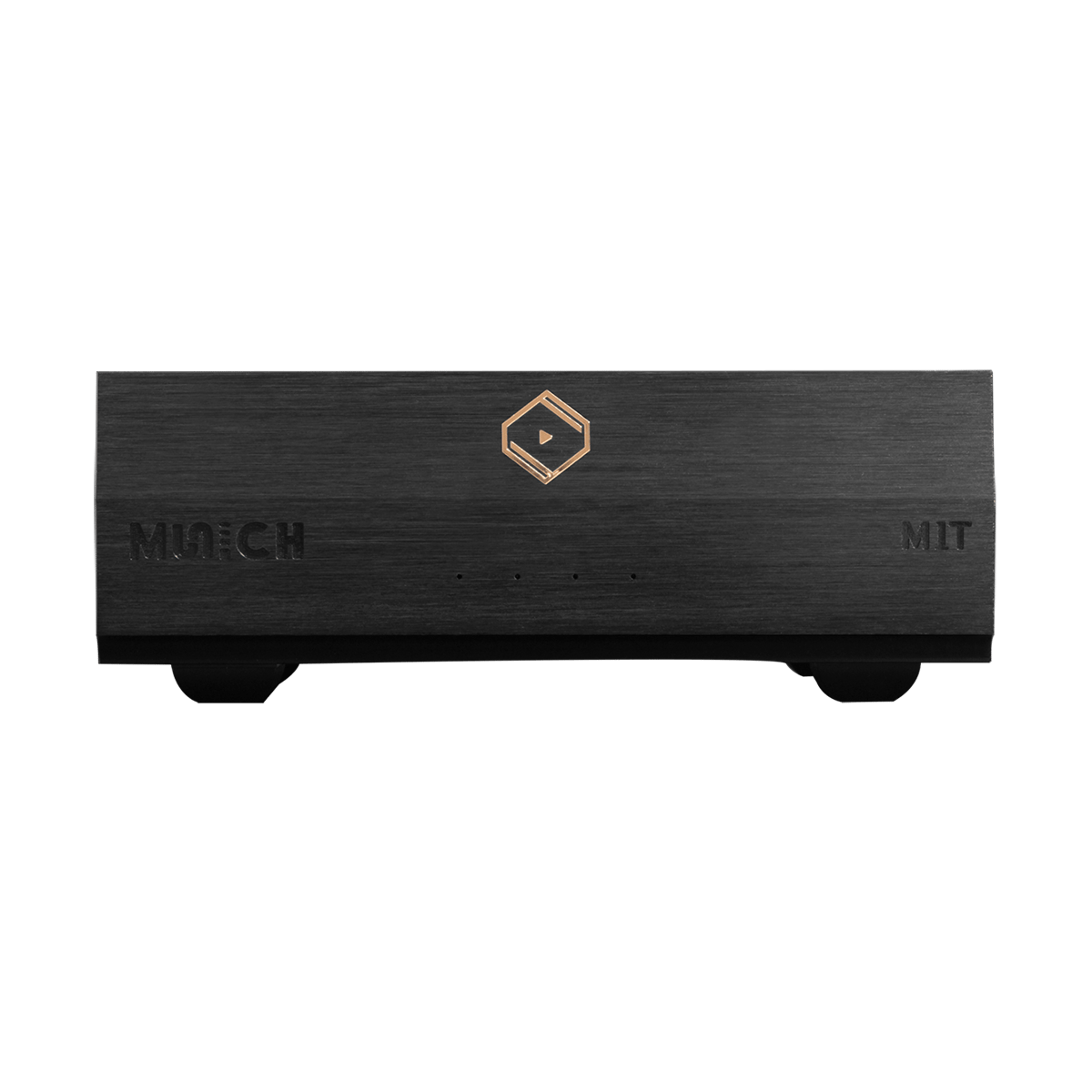

Silent Angel Munich M1T

Easy to Use, Pleasant User Experience

• Easy to set up & connect to an external DAC or speaker(s) through digital audio outputs
• Stay connected to digital music. Play and enjoy anytime without a PC involved.
• Master your music at your fingertips via mobile app, VitOS Orbiter.
• New Update: Munich M1T is now officially MQA-supported and certified

Mobile App, VitOS Orbiter

Easily locate and set up a new device, browse and stream music. Listen to all your favorite songs with details displayed such as bitrate, sample rate, bit depth and format (e.g. DSD, WAV or FLAC).

Superior Hardware System

The M1T is born to pursue superior audio performance without any compromise.

• Elegant metal enclosure with a solid aluminum alloy front panel
• High-performance yet low-power CPU, 4-core 1.5GHz ARM Cortex-A72
• Substantial system memory for large streaming buffers and caches to run multiple applications simultaneously
• Digital output: AES/EBU, I2S, Coaxial. Sampling rate up to PCM 384KHz & DSD 5.6MHz (DSD128)
• USB-Audio output: Up to PCM 768KHz & DSD 11.2MHz (DSD256)
• Advanced circuitry with high quality components
• Fan-less heat dissipation with a highly efficient heat-sink (~20˚C lower after applied)
• A highly permeable EMI absorber (>120 @1MHz) to reduce electrical interference
• Gold plated ports (Coaxial & AES/EBU)

Obtain More Audio Sources For HiFi Systems

• High-resolution streaming services and Internet radios
• Play various music file formats and SACD files(Native DSD up to DSD256, and DoP up to DSD128).

Stream and Play in an Audio Network

• Play high-resolution streaming services and Internet radio
• Roon Ready player
• Play music from network shared storage (over SMB/CIFS)
• DLNA renderer (player)

Further Upgrade - The Combo Setup

Power Source Purifier

Connect the M1 to the Forester F1 linear power supply (supplying 5V 2A DC) to further improve power source and reduce the noise signal.

Network Purifier

Use the Bonn N8 as the hub. Connect audio devices to the N8 switch and create an isolated audio network. (*Related models: N8N8 Pro, and N16-LPS
