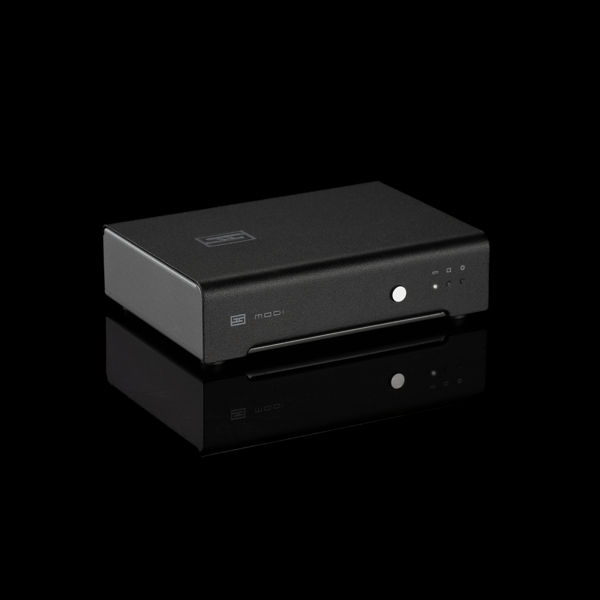

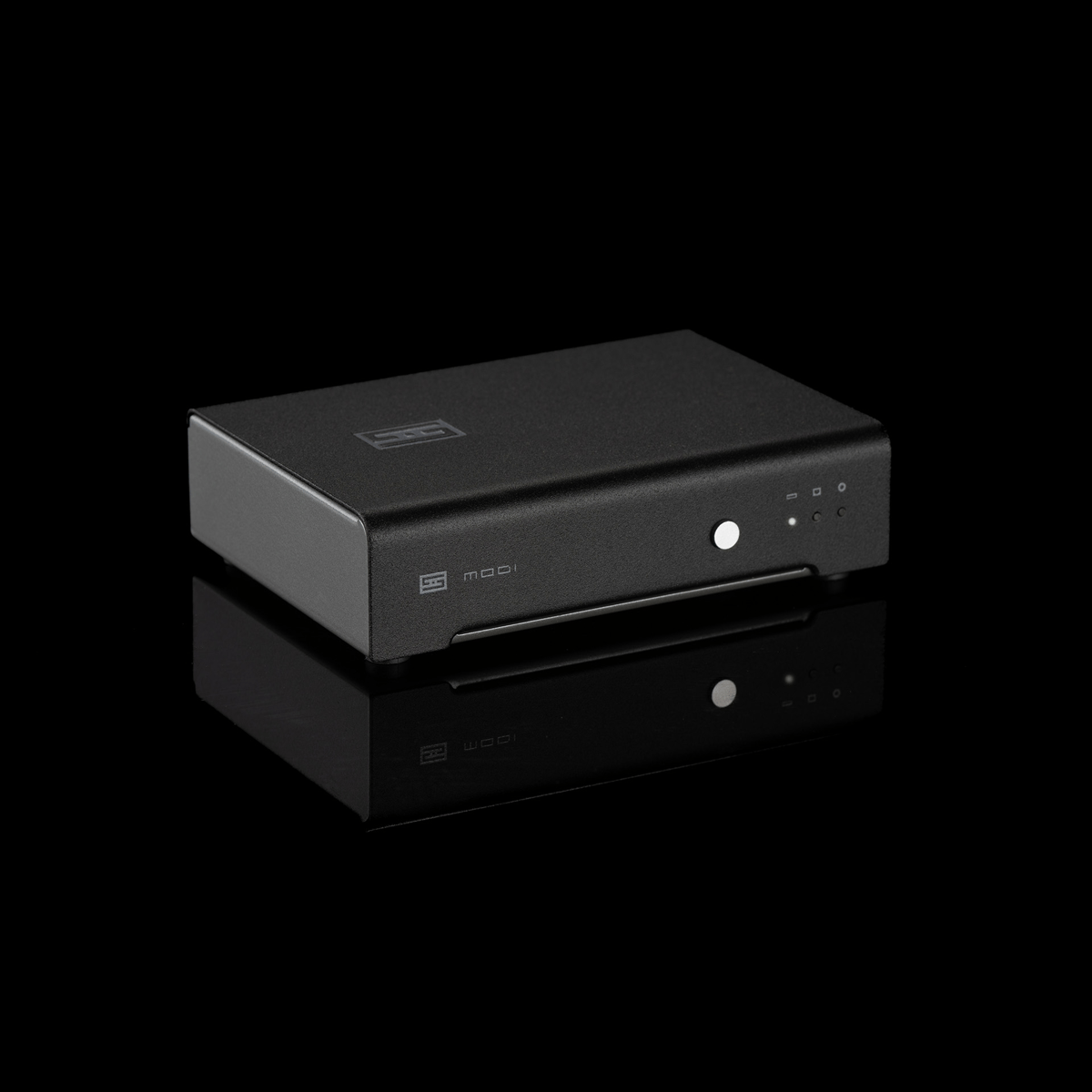

Schiit Audio Modi 5
Need an excellent standalone DAC, but don’t want to spend a fortune? Here you go: Modi 5 gives you our unique Mesh™ conversion, Unison 384, and Linear Override. The result? The most flexible, best-sounding inexpensive DAC out there.
Mesh: Sounds Expensive. Isn't.
All of our True Multibit or Multiform DACs have used our own proprietary digital filter, developed through decades of R&D. Mesh brings this unique digital filter to a much more affordable price point, by meshing (ahem) a 32-bit Microchip processor with a standard delta-sigma modulator. The result? Something that sounds a lot more like our more expensive DACs.
All Inputs Covered
Just need a USB DAC? One cable and you’re done. Modi 5 is USB powered for maximum transportability and flexibility—it’ll even run your optical and coax inputs with USB power. Or, plug in our optional external AC wall-wart to engage Linear Override for much higher voltage rails (and higher output).
Designed and Built in the USA. For Real.
By “designed and built in the USA," we mean it. We do our own PCBs, assembly, test, and QC in Corpus Christi. Our chassis are made in California. No joking, no fooling, no games.
2-Year Warranty, 15-Day Easy Returns
Modi 5 is covered by a 2-year limited warranty that covers parts and labor. And if you don’t like your Modi, you can send it back for a refund, minus 15% restocking fee, within 15 days of receiving it.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
Forum Mentions
No forum mentions found yet
Specifications
- Distortion
- inaudible; 100-1000x lower than any transducer (speaker or headphone) you're using
- Noise
- inaudible; far below a typical headphone or speaker amp
- Input capability
- accommodates all actual music recordings from all typical sources
- Heat
- runs mildly warm; this is normal
- Size
- very desk-friendly
- Frequency Response
- 20Hz-20KHz, +/-0.04dB
- THD+N
- 0.0003%
- IMD
- 0.0004%, CCIR
- S/N
- 118dB, referenced to full output, with or without external power
- Crosstalk
- 125dB, 20-20kHz
- USB input
- Unison 384, up to 32 bits/384kHz supported, full UAC2 compliance
- Other inputs
- Optical SPDIF, Coaxial SPDIF, up to 24/192
- D/A Conversion
- Schiit Mesh, a unique combination of our time- and frequency-domain optimized digital filter and a standard delta-sigma modulator, in this case an ES9018
- Analog Stage
- Based on OPA1656, with precision thin-film resistors and film capacitors, DC coupled
- Output
- RCA single-ended
- Maximum Output
- 1.5V RMS when powered via USB cable\n2.0V RMS with Linear Override AC wall-wart
- Output Impedance
- 75 ohms
- Power Supply
- USB powered with charge pump rail generator for +/-5V rails, reports as 500mA USB device, Linear Override via 12-16VAC, 0.5A+ wall-wart, provides +/-12V rails and reports as 0mA USB device
- Size
- 5 x 3.5 x 1.25
- Weight
- 1 lb
