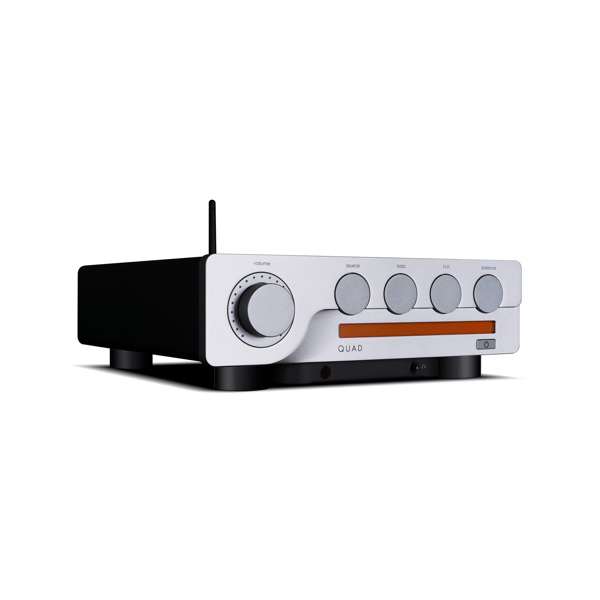

Quad QUAD 3

Classic Elegance, Modern Tastes

Inspired by the iconic QUAD 22 pre-amplifier, it takes on a fresh, sophisticated aesthetic that resonates with the latest QUAD 33 and 303 iterations. With its sleek, compact form factor and a touch of vintage charm, it complements modern living spaces and technology while staying true to QUAD's rich heritage in audio design and performance.

Uncompromised Connectivity for the Modern Audiophile

Digital Versatility

USB Audio Input:Supports hi-res audio up to 768kHz/DSD512, ensuring flawless connection for PC & Mac.

Coaxial and Optical S/PDIF Inputs:Handle hi-res audio up to 192kHz, ideal for CD players, streamers, and digital sources.

HDMI ARC Input:Brings TV sound directly to your audio system with the convenience of using your TV's remote to control volume and power.

Wireless Freedom

Bluetooth 5.1:Enables seamless streaming from smart devices. With support for the aptX HD codec, enjoy 24-bit hi-res audio over Bluetooth without compromise.

Phono Perfection

Vinyl enthusiasts will delight in the high-definition MM phono stage, offering low-noise performance and precise RIAA equalisation. This built-in preamp provides superior sound quality compared to standard phono stages in this price range.

Analogue Purity

Two line-level RCA inputs ensure seamless integration with analogue sources.

High-Resolution Audio from Your PC: USB Connectivity

For those who prefer to stream high-resolution audio directly from their computer, it features a dedicated USB-B input that supports hi-res playback up to 768kHz PCM and DSD512 formats. This makes it an ideal solution for audiophiles who rely on their PC or laptop as a primary source for digital music. With plug-and-play functionality, it effortlessly transforms your computer into a high-end digital audio source, delivering pristine sound quality and unlocking the full potential of high-resolution music files. Whether you're using streaming platforms, local files, or advanced playback software, it ensures every detail is captured and reproduced with breathtaking clarity.

Advanced Digital Architecture for Exceptional Sound

At the heart of the digital brain lies a state-of-the-art ESS9038Q2M DAC chipset, expertly implemented to deliver precise and detailed sound. Paired with a Class A post-DAC filter circuit, this configuration extracts the maximum sonic potential from digital sources.

Upsampling

Upsampling can be applied to the audio from both SPDIF and USB audio sources. The digital audio is upsampled to either 352.8kHz or 384kHz.

Power and Precision at Your Fingertips

Despite its modest footprint, it is a compact powerhouse. The Class AB Amplification stage is equipped with a custom engineered power supply.

A robust 235VA toroidal transformer feeds the amplifier, supported by a 30,000uF reservoir to ensure dynamic headroom and low distortion. Rated at 65W per channel (8 ohms) and peaking at 100W (4 ohms), it effortlessly drives demanding loudspeakers with control and authority - in proper QUAD form!

Dedicated Headphone Amplifier

For headphone aficionados, it includes a separate current-feedback headphone amp circuit that mirrors the precision of the main amplifier. Expect flawless transient reproduction and distortion-free listening.

Signature QUAD Touches

The QUAD 22 influences can be seen in the subtle accents of the facia, and neat row of digital encoders. These tactile rotary controllers provide volume control, source selection, bass control, QUAD 'tilt' control and balance adjustment. The bass adjust allows +/-3dB adjustment of the low-end frequencies, adding richness and depth or removing rumble according to your components, system or room. But the 'Tilt' control differs by adjusting both ends of the frequency spectrum together, either attenuating the bass and lifting the treble or lifting the bass and attenuating the treble in 1dB steps. 'Tilting' the audible frequency range on a 700Hz axis, thereby adjusting the overall sound balance to make it either 'warmer' or 'cooler' to suit the recording and/or the room acoustics.

Convenience at Your Fingertips: Full‑Function Remote Control

It doesn't just offer superior audio performance — it also delivers a seamless user experience with its full-function remote control. Designed with intuitive navigation in mind, the remote allows users to effortlessly adjust volume, switch between sources, fine-tune bass and treble, engage the renowned 'Tilt' control, and navigate through the extensive menu options with ease. Whether you're across the room or in the comfort of your listening chair, the remote gives you complete command over your listening experience, making it as convenient as it is high-performing.

A Benchmark for Style, Value, and Performance

It is more than an amplifier — it's a statement. With its blend of classic aesthetics, exceptional audio performance, and future-proof connectivity, it redefines what an integrated amplifier can offer. Whether you're a vinyl purist, digital devotee, AV advocate, it is built to accommodate and designed to impress.
