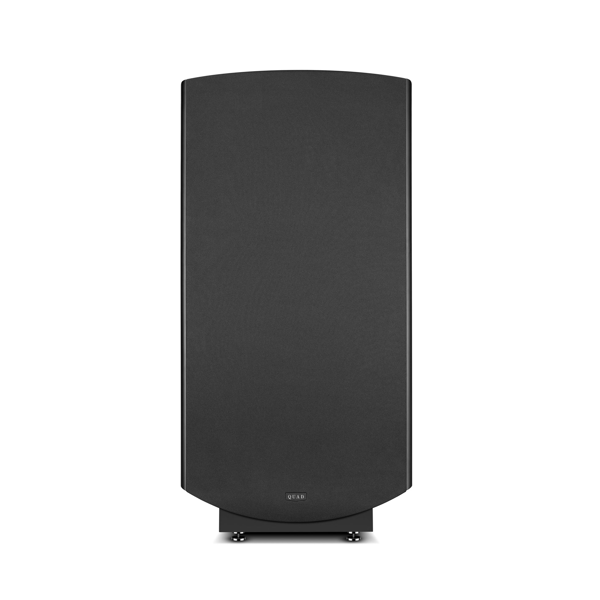

Quad ESL 2912X

The Beginning

The ESL X concept began in 2019 as part of an intensive review of the QUAD Electrostatic manufacturing facility—a suite dedicated solely to the production of QUAD ESL loudspeakers.

The ESL 2912X is the flagship QUAD electrostatic loudspeaker. Featuring an expanded six-panel design for increased radiating area, higher sound pressure levels, dynamics and extension, the ESL 2912X delivers an immersive listening experience with deeper bass and rich textures, bringing even the most complex music to life. Built for the ultimate audiophile experience, it offers enhanced dynamic range, improved headroom, and a spacious soundstage.

The Heart

One would be rightly forgiven for knowing of the ESL but not knowing how the ESL differs from typical loudspeakers. It us correct to begin with the fact that a QUAD ESL is not your typical loudspeaker! Unlike conventional speakers that use moving-coil drivers, the ESL employs a completely different principle: an electrostatic panel.

At the heart of a QUAD ESL are panels containing a diaphragm of fine Mylar film, ten times thinner than a human hair. The Mylar film is coated with a high resistance conductive material and suspended between two perforated metal plates called stators.

Point Source Design

QUAD's ESL mid-high frequency panels are configured with a "concentric ring” electrode design, initially conceived for the ground-breaking ESL-63. Rather than allowing all sections of the diaphragm to move uniformly, the speaker is meticulously engineered to ensure that the audio signal seems to emanate from a singular point in space.

High Voltage & Low Distortion

One critical factor influencing the ESL’s performance is its notably high operating voltage – approximately 5,250 volts. This elevated voltage substantially enhances the diaphragm's control and linearity, allowing it to move with precision in response to musical signals while significantly reducing distortion.

The Improvements

The intricate details of the manufacturing process contribute significantly to the refinements that are more than audible in the ESL X. For one, the time taken to manufacture a single QUAD ESL panel is extended, therefore the time frame for a full ESL loudspeaker system to be assembled is much more considered.

Major upgrades

The first technical improvement sees the operational PCB split from a monolithic design into three fully independent modules. The system comprises a High-Voltage Multiplier Module, a Control and Protection Module, and a Low-Voltage Signal Module.

Peter Comeau, QUAD’s Director of Acoustic Design, has monitored the development of the ESL X closely and comments as follows:

Peter Comeau, QUAD’s Director of Acoustic Design, has monitored the development of the ESL X closely and comments as follows:

“The X suffix for the new QUAD ESL 2912 and 2812 speakers suggests something eXtra and that is certainly delivered in the sonic performance of these models.

From the shadows

The QUAD product development team has deepened its understanding of the ESL concept significantly. Peter Walker’s ultimate goal was not merely to achieve technical novelty for its own sake; rather, he sought to ensure that listeners experienced music as it was intended — faithfully, honestly, and without the speaker imposing its character.

When it all converges

The QUAD ESL X embodies six years of obsessive refinement — from heritage blueprint to futuristic electronics architecture.
