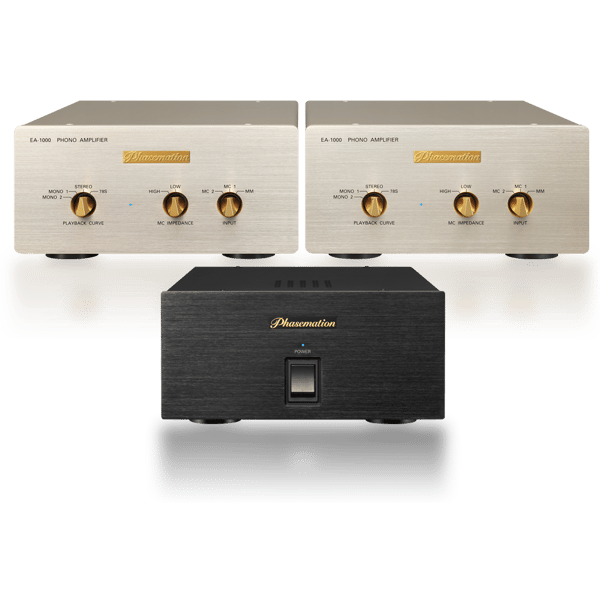

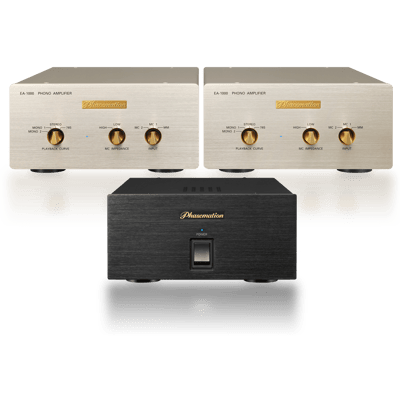

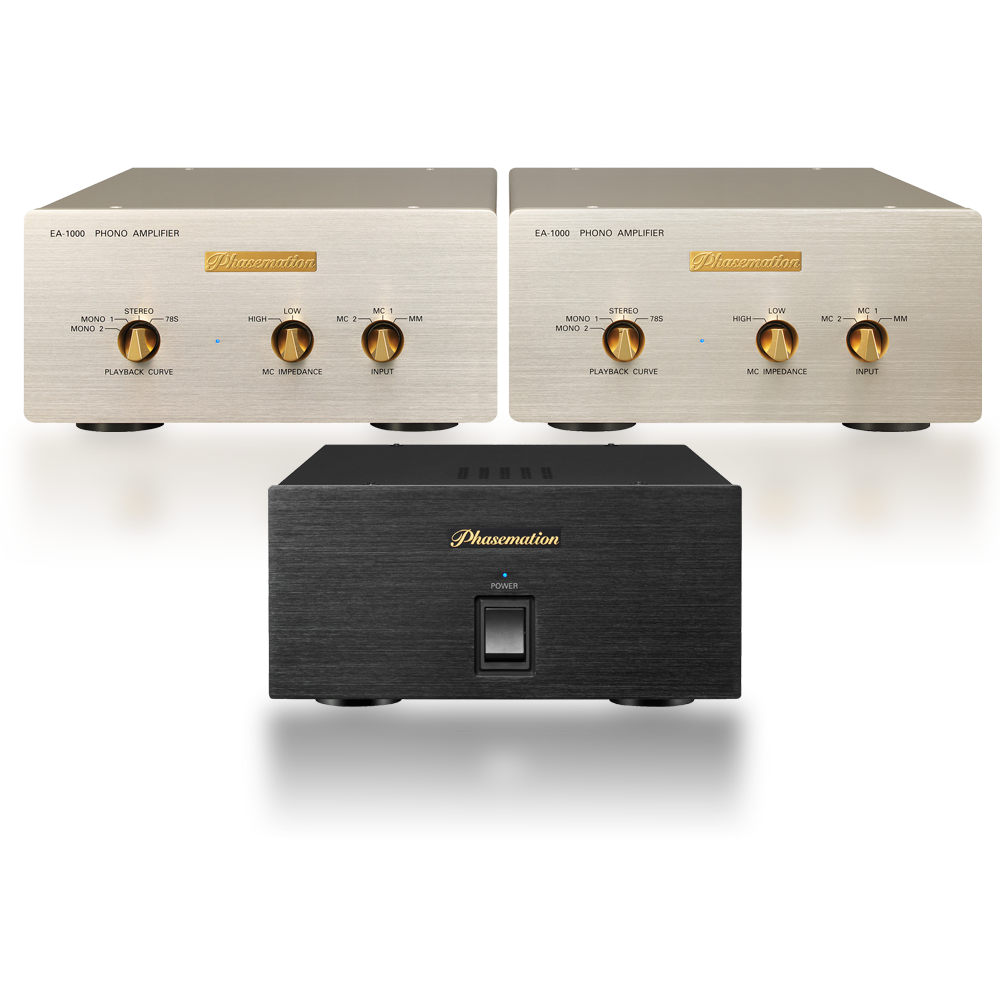

Phasemation EA-1000 / EA-1000G
Product Outline and Concept
We have been developing the audio series of the MC cartridge P-1 released in 2002, Phono amplifier,Pre-amplifier and Main amplifier with utilizing the non-feedback circuit, and Passive attenuator. saying"Analog audio products are not fully mastered yet" as our catchword
During these years, the concern with the analog audio playback system has been furthermore enhanced and a variety of new products has been released.
We release the highest peak of Tube Phono Amplifier, EA-1000, to feel the newest analog disc playback for the booming analog audio markets with our thoroughgoing preparations.
Main feature
I. Phono Equalizer consisting of two Monoblock units
The Phono Equalizer unit consists of the shaved 12mm thick aluminum front panel, 2mm thick copper plating steel chassis base and 2mm thick aluminum cover; so, it has the strong chassis.
The equalizer units separated into L/R and the separated powerful power supply unit support the playback sound by which you can enjoy music expressing the overwhelming liveliness and recreation of vistaed stage because of the high resolution and high S/N ratio.
II. Separated Power supply unit adopting the Large capacity R-core Transformer and Directly-heated Rectifier Tube
The luxurious rectifier circuit consisting of the R-core transformer having more capacity than necessary and the rectifier tube not generating a switching noise principally, 5U4G and two choke transformers separated to L/R is adopted.
In addition, the high S/N ratio is achieved by adopting the DC heater circuit using a 3-terminal regulator for the tube heater power supply.
III. Adopting a variety of input-switching functions
1. Three lines, MC1, MC2 and MM, are installed; and in addition to RCA terminals, the balanced input terminals of XLR connector are installed for MC1.
2. The new step up voltage transformer originally produced by our company is incorporated for the MC input line and the input impedance switch (LOW: 10 ohm or less, HIGH: 10 ohm or more) is installed.
IV. Non-feedback Equalizer consisting of Tube Unit Amplifiers
1. The non-feedback SRPP amplifier circuit which excels in transient characteristics and has a reputation for sound quality is adopted as a unit amplifier. You can enjoy charming vigorous sound quality because a tube amplifier has wide dynamic range.
2. CR equalizer circuit is adopted.
In addition to the RIAA characteristics for stereo system, the monaural characteristics, Mono-1 using in DECCA label, Mono-2 using in Columbia label, and SP characteristics are installed. Even in the monaural playback, music can be played truthfully furthermore.
V. Texture Securement
WDT I/O terminals evaluated as high product quality and high sound quality are adopted. The shaved 12mm thick aluminum front panel and the 2mm thick top cover are galvanized to champagne gold color and the shaved brass operation buttons are decorated with 24-carat gold; therefore, the dignity finish having high universality will not disappoint you on the owner's joy.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Product
- MM/MC CR type Phono Amplifier
- Input type (Cartridge)
- MM MC
- Input sensitivity
- MM: 2.3 mV MC: Low: 0.09 mV/High:0.22 mV
- Output impedance for the cartridge
- MM: 47k ohm or less MC: Low:10 ohm or less High:10 ohm or more
- Gain
- MM: 39 dB MC: Low: 67 dB/High: 59 dB
- S/N ratio for input
- MM: -120 dBV MC: -150 dBV
- Maximum permissible input
- MM: 250 mV MC: 11 mV
- Rated output voltage
- 200 mV (1 kHz)
- RIAA curve deviation
- ±0.3 dB (20 Hz to 20 kHz)
- Output impedance
- 750 ohm
- Channel separation
- 100 dB or more (20 Hz to 20 kHz: Both of MM and MC)
- Power consumption
- 40W (115 or 220 VAC, 50/60 Hz)
- Dimensions (mm)
- Phono Equalizer Units: 210(w) × 103(h) × 347(d) Power Supply Unit: 210(w) ×103(h) × 333(d)
- Mass
- Phono Equalizer Units: 4.5 kg a channel Power unit: 7 kg
