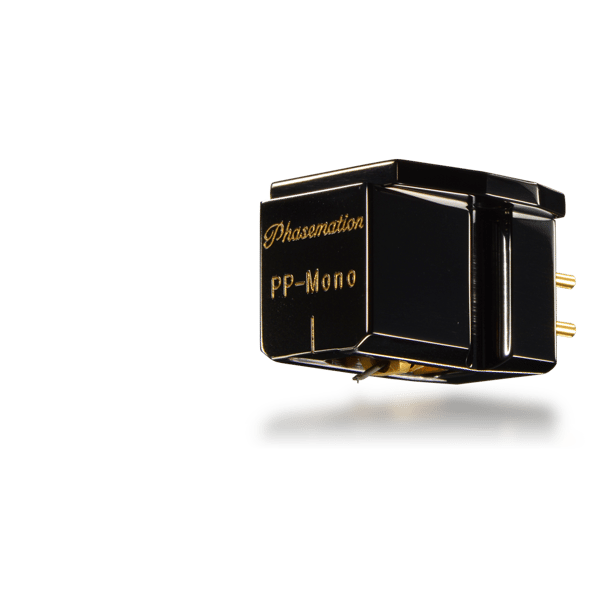

Phasemation PP-Mono
Product Outline and Concept
A monaural cartridge remains firm favorites of analog audiophiles. However, some of them say the current sound cannot provide enough satisfaction. So, after the long development period, Phasemation has successfully created almost ultimate harmony between 'the midrange-treble-part with high freshness' and 'the resonant bass part' for even monaural cartridge.
We release PP-Mono, the model of 10th anniversary of our brand establishment, as the culmination of cartridge development for more than a decade.
Main feature
1. Newly-designed Magneto System
The appearance and material of magneto system are newly designed about the high efficiency and high resolution for providing for monaural. R of end of stylus chip to key of tracing is set to 0.65 mil. For cantilever, the aluminum pipe, which is light and strong and excellent to capability tracing a monaural signal, is adopted. By combining the originally-designed magneto coil with this, the recreation of excellent feeling of sound field and freshness has been successfully realized, which has been difficult for the conventional monaural cartridges.
2. Strong Body Structure
As the materials of base and body we adopt stainless material and duralumin respectively. Furthermore, DLC (Diamond Like Carbon) *1) coating is conducted; thereby, the structure excellent at rigidity and vibration-damping characteristics is realized.
*1) DLC (Diamond Like Carbon） is a generic name of carbon film to be produced with vapor phase synthesis utilizing ion processing; and the high rigidity and high electric insulation similar to a diamond are provided for it.
3. Inheriting the Materials for High Quality Audio Sound
We inherit the following materials for high quality audio sound well-acknowledged in our PP-1000: samarium-cobalt magnet, magneto coil made of 6N oxygen-free copper wire, pure iron coil bobbin and others.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Magneto method
- Moving coil method
- Impedance
- 4 ohms
- Appropriate stylus pressure
- 2.0 g
- Output voltage
- 0.38 mV(1 kHz, 50 mm/s, Horizontal direction)
- Compliance
- 8.0x10(e-6) cm/dyne
- Playable frequency range
- 10Hz to 30kHz
- Channel balance
- 1 dB or less (1 kHz)
- Mass of body
- 14.7 g
- Stylus chip
- Diamond (Round pin; Curvature: 0.65 mil)
Manufacturer's Description — Phasemation
Product Outline and Concept
A monaural cartridge remains firm favorites of analog audiophiles. However, some of them say the current sound cannot provide enough satisfaction. So, after the long development period, Phasemation has successfully created almost ultimate harmony between 'the midrange-treble-part with high freshness' and 'the resonant bass part' for even monaural cartridge.
We release PP-Mono, the model of 10th anniversary of our brand establishment, as the culmination of cartridge development for more than a decade.
Main feature
1. Newly-designed Magneto System
The appearance and material of magneto system are newly designed about the high efficiency and high resolution for providing for monaural. R of end of stylus chip to key of tracing is set to 0.65 mil. For cantilever, the aluminum pipe, which is light and strong and excellent to capability tracing a monaural signal, is adopted. By combining the originally-designed magneto coil with this, the recreation of excellent feeling of sound field and freshness has been successfully realized, which has been difficult for the conventional monaural cartridges.
2. Strong Body Structure
As the materials of base and body we adopt stainless material and duralumin respectively. Furthermore, DLC (Diamond Like Carbon) *1) coating is conducted; thereby, the structure excellent at rigidity and vibration-damping characteristics is realized.
*1) DLC (Diamond Like Carbon） is a generic name of carbon film to be produced with vapor phase synthesis utilizing ion processing; and the high rigidity and high electric insulation similar to a diamond are provided for it.
3. Inheriting the Materials for High Quality Audio Sound
We inherit the following materials for high quality audio sound well-acknowledged in our PP-1000: samarium-cobalt magnet, magneto coil made of 6N oxygen-free copper wire, pure iron coil bobbin and others.
