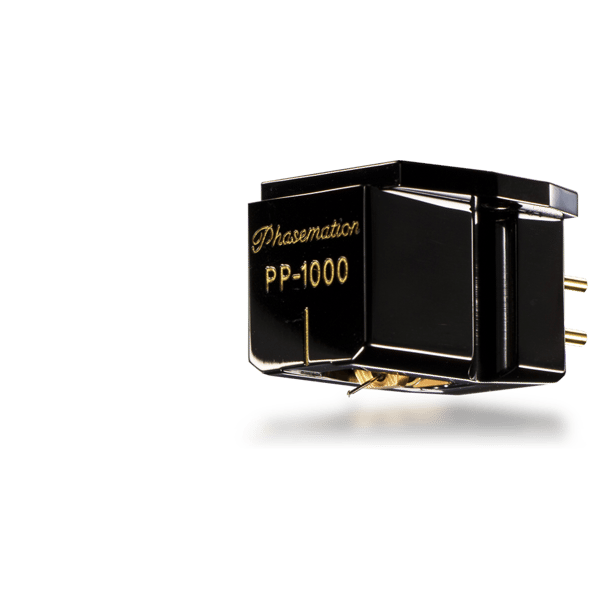

Phasemation MC Phono Pickup CartridgePP-1000

Main feature

Redesigning the magnetic circuit

The magnetic circuit of P-1G has been reconsidered in full scale; as a result, the shapes of front yoke and pole piece have been redesigned. Therefore, the shapes well suited for efficiency and magnetic uniformity have been successfully realized. It has been realized that the output is increased without increasing the mass of vibration section.

Redesigning the body structure

The material of P-1 body has been reconsidered from the beginning in order to get the best balance of sound quality. The materials of base and body have been respectively changed to stainless material and duralumin. Furthermore, DLC (Diamond Like Carbon) *1) coating is conducted; thereby, the sound quality being well suited for the rigidity and vibration-damping properties and being also suitable to be a flagship has been realized.

*1 DLC（Diamond Like Carbon）is a generic name of carbon film to be produced with vapor phase synthesis utilizing ion processing; and the high rigidity and high electric insulation similar to a diamond are provided for it.

Inheriting the high quality materials for audio sound

High quality materials for audio sound verified in P-1G and other models are inherited; and they are well-acknowledged until now for the following parts:
Cantilever made of pure boron material,
Magneto coil, pure iron coil, bobbin and wire damper made of 6N oxygen-free copper wire, and others.

Needle exchange

Please contact the dealer when exchanging the needle.
