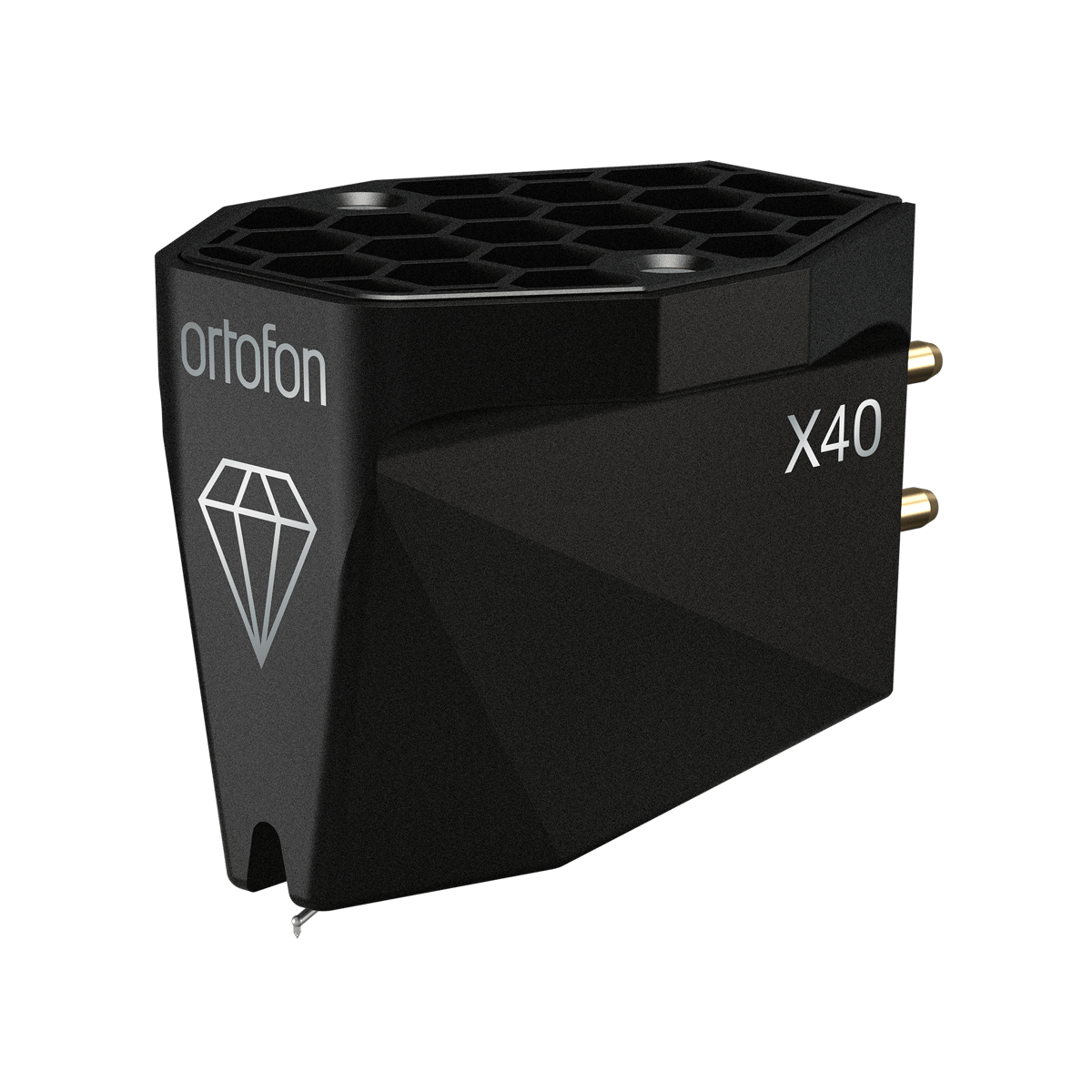

Ortofon MC X40
The Ortofon MC X40 brings open, finely resolved treble, authoritative dynamics and remarkably stable, deep imaging to serious vinyl playback. Its boron cantilever, nude Shibata stylus and silver coils uncover texture without sacrificing flow, while Tracking Angle and HiFi News found its balance, tracking and value exceptional for a sub-£1,000 moving-coil design.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Deliciously Crispy
Sound Quality
95/100
Build Quality
91/100
Features Usability
90/100
Value for Money
96/100
Pros
Exceptionally even, uncoloured tonal balance combines musical flow with clean, extended highs and controlled, punchy bass.
Precise, stable imaging and convincing soundstage depth give instruments realistic scale and clearly defined positions.
Strong groove tracing and fine-detail retrieval, especially toward inner grooves, elevate it beyond typical moving-coil tracking performance.
Boron cantilever, nude Shibata stylus and silver coils deliver performance reviewers consider outstanding for the price.
Cons
As a 0.4mV moving-coil cartridge, it requires a quiet MC-capable phono stage or suitable step-up transformer, and loading choice materially affects performance.
Surface-noise suppression is acceptable rather than class-leading, and the stage prioritises depth over ultimate width.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
What Reviewers Are Saying
SOUND QUALITY PERFORMANCE 95/100
Reviewers consistently found the MC X40 exceptionally balanced, natural and musically involving, combining a relaxed sense of ease with speed, clarity and substantial dynamic authority. Its presentation is especially praised for stable imaging, convincing depth, fine transient work and a revealing but unfatiguing top end.
Overall Sound
96/100
Stereophile heard a tactile, focused and natural presentation that could disappear behind the music, while Tracking Angle praised its effortless balance, harmonic generosity and overall sense of rightness. SoundStage Solo similarly found it coherent from top to bottom, equally satisfying with delicate classical works and forceful rock, with crisp but glare-free highs and controlled, punchy bass.
Tracking Retrieval
94/100
Hi-Fi News found tracking unusually capable for a moving-coil design, particularly toward the inner grooves, while Tracking Angle reported clean tracking at the 80µm test level. Reviewers repeatedly praised delicate transients, natural fine-detail recovery and insight into instrumental textures; SoundStage Solo found surface-noise performance acceptable rather than class-leading.
Soundstage Imaging
95/100
Image placement is repeatedly described as exceptionally stable, precise and solid, with individual performers clearly located in space. Hi-Fi News heard particularly well-defined depth and image specificity, while SoundStage Solo and Tracking Angle praised realistic image scale, strong solidity and convincing three-dimensionality; the stage is characterized more by depth than extreme width.
FEATURES USABILITY PERFORMANCE 90/100
Tonearm compatibility / system fit.
Tonearm Compatibility
90/100
At 8.6g and with moderate compliance, Hi-Fi News expects the MC X40 to work without issue in the majority of tonearms, and StereoNET likewise considers it suitable for most modern arms. As a 0.4mV moving-coil cartridge, it still needs an appropriately quiet MC-capable phono stage or step-up transformer; SoundStage Solo preferred a 100-ohm load and found higher loading less controlled.
Assessments of Build Quality, Usability, and Overall Propositions.
Build Quality
91/100
The MC X40 uses a stainless-steel honeycomb MIM frame, silver-wound coils, boron cantilever and nude Shibata stylus, with the frame designed to combine stiffness, damping and manageable mass. Reviewers describe the construction as upmarket and thoughtfully engineered, although StereoNET notes that the outer body itself is high-quality plastic.
Value for Money
96/100
At roughly £875/€999, reviewers repeatedly regard the MC X40 as unusually strong value among high-performance moving-coils. Hi-Fi News calls it an undeniable bargain, SoundStage Solo says it performs well above its price, and Tracking Angle describes the performance improvement over the Quintet Black as vast and the result as a remarkable achievement for the cost.
Reviews & Sources
Professional reviews and sources for this product's Watt'n Potatoes analysis.
Online Reviews & Mentions
YouTube Reviews
Forum Mentions
No forum mentions found yet
Specifications
- Channel balance at 1 kHz
- 0.5 dB
- Output voltage at 1 kHz, 5cm/sec
- 0.4 mV
- Channel separation at 1 kHz
- 26 dB
- Frequency response 20 Hz - 20 kHz
- +/-1 dB
- Compliance, dynamic, lateral
- 15 μm/mN
- Cantilever material
- Boron
- Stylus type
- Nude Shibata
- Stylus tip radius
- r/R 6/50 μm
- Stylus suspensions
- Ortofon exclusive
- Coil system
- Quad coils
- Tracking force, recommended
- 2.0 grams
- Internal impedance, DC resistance
- 6 Ω
- Coil wire material
- High-purity silver
- Cartridge weight
- 8.6 grams
- Recommended load resistance
- > 50 Ω
Manufacturer's Description — Ortofon
MC X40 is designed for audiophiles seeking exceptional transparency, speed, and refinement. Featuring a nude Shibata diamond stylus mounted on a rigid and lightweight boron cantilever, it delivers outstanding detail retrieval, expansive soundstaging, and highly accurate musical reproduction.
Honoured with StereoNet’s “Product of the Year” award in the Phono Cartridge category, the MC X40 is celebrated for delivering a “lovely, smooth, delicate and open sound that echoes the character of genuine high-end designs."
A New Benchmark in Analog Perfection
In the world of vinyl playback, the cartridge is where the journey begins. A pivotal point where music rises from the groove and transforms into immersive soundscapes. With the MC X Series, Ortofon sets a new benchmark in MC cartridge design, pushing premium Moving Coil technology to unprecedented levels of performance.
Pure Silver Coil System
All MC X cartridges feature coils wound with high-purity silver wire. The use of premium materials is to ensure exceptional signal clarity, delivering sound with unmatched precision and preserving every detail without interference.
Magnet system
The MC X Series introduces a newly developed magnet system with a one-piece pole cylinder integrated into a rear magnet yoke. Engineered for maximum magnetic efficiency and paired with pure silver coils, this configuration ensures a clean, powerful signal path that elevates overall performance.
Custom-Developed Rubber Dampers
In-house produced and developed rubber compounds form the core of the MC X Series’ mechanical damping system. Rubber dampers are essential for controlling the physical movement of the coils, maintaining stability, minimizing unwanted vibrations, and enabling precise coil motion. The result is superior tracking, reduced distortion, and musical accuracy.
Experience the depth. Hear every detail.
At the core of the MC X Series is an advanced honeycomb-structured stainless-steel frame, created using Metal Injection Molding (MIM) technology. This refined construction ensures superior mechanical stability, providing an ideal foundation for precise and accurate sound reproduction.
After molding and sintering, a Physical Vapor Deposition (PVD) surface treatment is applied to enhance surface appearance and maintain material integrity over time.
The Shape of Sound
The MC X Series embodies modern elegance with a distinctive design that seamlessly complements the tonearm. From afar, its silhouette speaks of minimalist refinement; up close, its intricate detailing reveals craftsmanship at every level. True to Ortofon’s signature aesthetic, it’s a sophisticated fusion of form and function.
