Orchard Audio 1200W 4/3/2 CHANNEL PLATE AMPLIFIER WITH DSP

Starkrimson Ultra

Starkrimson 25

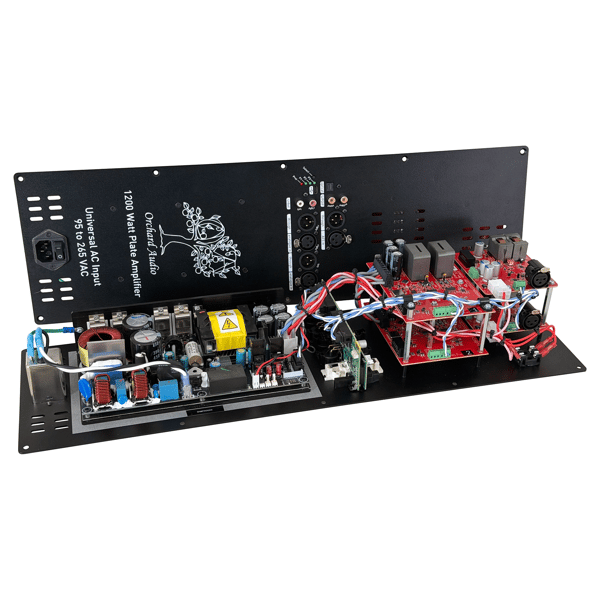

At the core is a high‑efficiency 1200W supply feeding up to four discrete amplifier channels. The plate can be configured in multiple ways—4‑channel, 3‑channel, or 2‑channel—allowing designers to tailor output power and topology to the loudspeaker’s drivers.StartFragment

Amplifier Module Options

• 1 or 2 × Starkrimson Ultra Modules
  • 250W / 500W into 8Ω / 4Ω
  • GaN‑based architecture for ultra‑low distortion and exceptional transient accuracy
  • Ideal for bass and mid-range drivers
  • Specifications for Starkrimson Ultra Modules are at
• 1 or 2 × Starkrimson 25 Modules
  • 75W / 150W into 8Ω / 4Ω
  • GaNM‑based architecture for ultra‑low distortion, wide bandwidth, and exceptional transient accuracy
  • Ideal for tweeters, midrange drivers
  • Specifications for Starkrimson 25 Modules are at

Modules can be mixed or doubled, enabling 2, 3, and 4 channels of amplification.EndFragment StartFragment

Integrated DSP for Complete System Control

DSP3‑224

DIGin3‑322

Designed for Active Loudspeakers

Every aspect of the plate amplifier—from thermal layout to module selection to DSP integration—has been optimized for active loudspeaker builders who demand accuracy, reliability, and configurability. Whether powering a 2‑way monitor or a high‑output 3/4‑way tower, this amplifier provides the foundation for a truly reference‑grade active system.

Hypex DSP3-224 and DIGin-332

Filter design and system configuration are handled via Hypex Filter Design (HFD) software, with support for IIR and FIR filters. Output routing allows flexible assignment, including BTL operation when connected to compatible two-channel amplifiers.

Highlights of the DSP3-224

• Four-channel active filtering
• Stereo input XLR & RCA
• Stereo input FIR (2048 taps) or four mono output FIR (1024 taps per channel)
• Three programmable presets

Highlights of the DIGin3-322

• AES input and output
• SPDIF input and output
• Optical input
• Low jitter
• IR remote control and OLED displays may be added.
  • Remote control
  • Remote control kit
  • OLED display

Warranty / Returns

• There are no returns on this product.
• This product is covered under our 1-year warranty.
