Octave Audio Input Modules

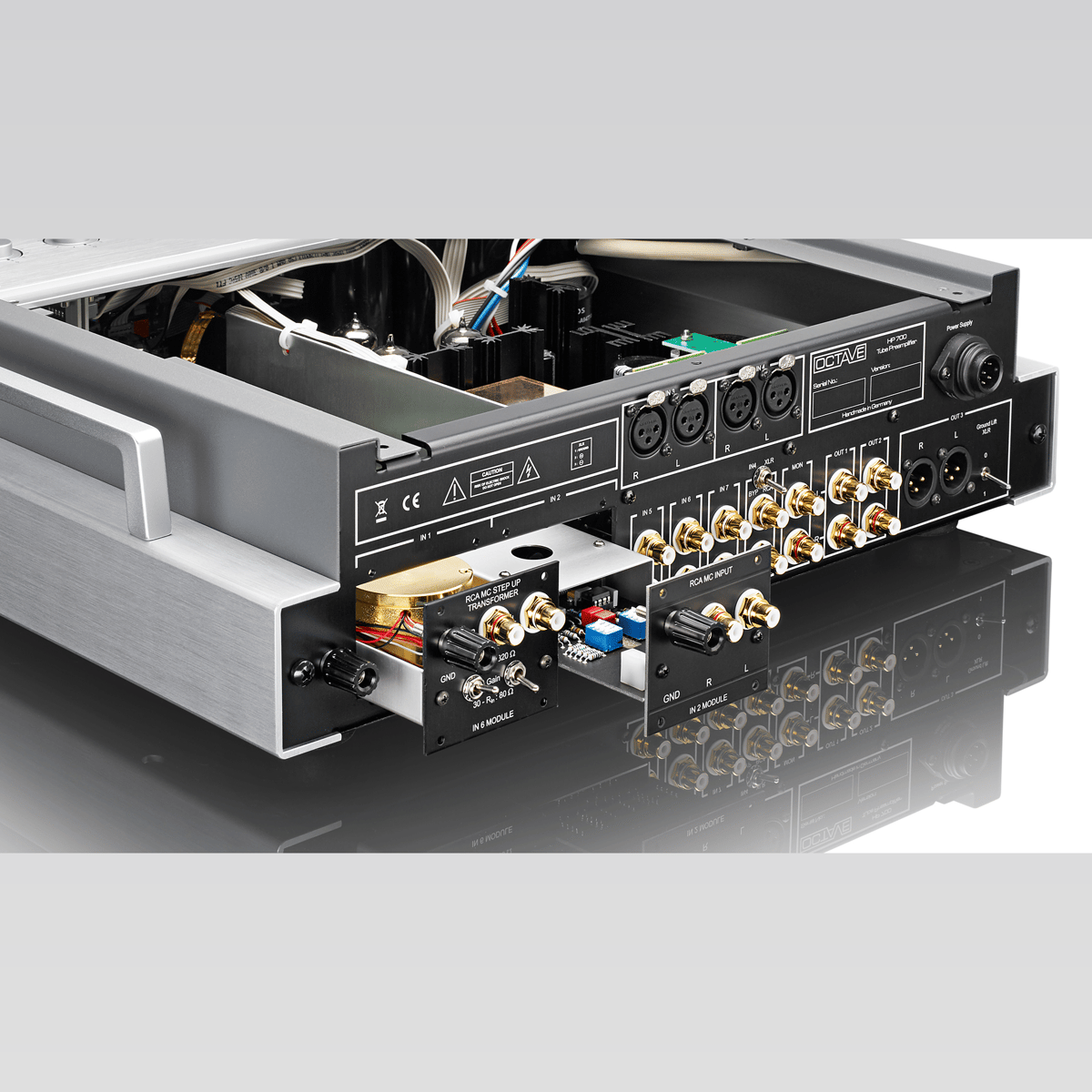

The Octave Phono Module and the Octave HP 700 (SE) preamplifier offer the option of installing or retrofitting various input modules.
The range of input modules ranges from electronic high level and MC inputs, symmetrical and unbalanced, to input modules for high level and phono MC in transformer technology. Transformer-coupled inputs (step up transformers) are the optimal solution for the highest quality natural reproduction.
This modular flexibility means that every high-end system can be adjusted to the individual needs and preferences of the listener.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
No reviews found yet
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Input sensitivity
- 3 - 5 mV
- Input impedanz
- 1 kOhm / 47 kOhm / 220 pF
- Gain factor
- 38 dB
- Signal to Noise Ratio
- 77 dB Broadband / 94 dB Band-pass at 1 kHz
- Input sensitivity
- 0.1 - 1 mV
- Input impedance
- 62 - 1000 Ohm || 4.7 nF
- Gain factor
- 65 dB Gain high, 58 dB Gain low
- Signal to Noise Ratio
- 69 dB Gain high; -75 dB Gain low ; Broadband
- Input sensitivity
- 0.1 - 1 mV
- Input impedance
- 62 Ohm - 1 kOhm / 4.7 nF
- Gain factor
- 65 dB Gain high, 58 dB Gain low
- Signal to Noise Ratio
- 72 dB Gain high, -78 dB Gain low
- Input sensitivity
- 100 mV - 7 V
- Input impedance RCA / XLR
- 50 kOhm / 25 kOhm
- Gain factor RCA / XLR
- 0 dB / +6 dB
- Signal to Noise Ratio
- -120 dB fixed output
- Distortion factor Cinch / XLR
- -125 dB
- Input sensitivity Gain 15 / 30
- 0.2 - 2 mV / 0.2 - 1 mV
- Input impedance Gain 15 / 30
- < 320 Ohm / < 80 Ohm | 30 Hz - 40 kHz
- Gain factor
- 15 / 30
- Pickup internal resistance Gain 15 / 30
- 5 - 25 Ohm / 0.5 - 5 Ohm
- Input sensitivity
- 0.2 - 2 mV
- Input impedance
- < 200 Ohm | 30 Hz - 40 kHz
- Gain factor
- 20
- Pickup internal resistance
- 1 - 25 Ohm
- Input sensitivity
- 100 mV - 6 V
- Input impedance
- 10 kOhm
- Gain factor
- 0 dB / transformer 1 : 1
- Signal to Noise Ratio
- -115 dB
- Frequency range
- 30 Hz - 80 kHz / -1 dB
- Input sensitivity
- 100 mV - 6 V
- Input impedance
- 10 kOhm
- Gain factor
- 0 dB / transformer 1 : 1
- Signal to Noise Ratio
- -115 dB
- Frequency range
- 30 Hz - 80 kHz / -1 dB
Manufacturer's Description — Octave Audio
The Octave Phono Module and the Octave HP 700 (SE) preamplifier offer the option of installing or retrofitting various input modules.
The range of input modules ranges from electronic high level and MC inputs, symmetrical and unbalanced, to input modules for high level and phono MC in transformer technology. Transformer-coupled inputs (step up transformers) are the optimal solution for the highest quality natural reproduction.
This modular flexibility means that every high-end system can be adjusted to the individual needs and preferences of the listener.
