Monitor Audio CLG-W12

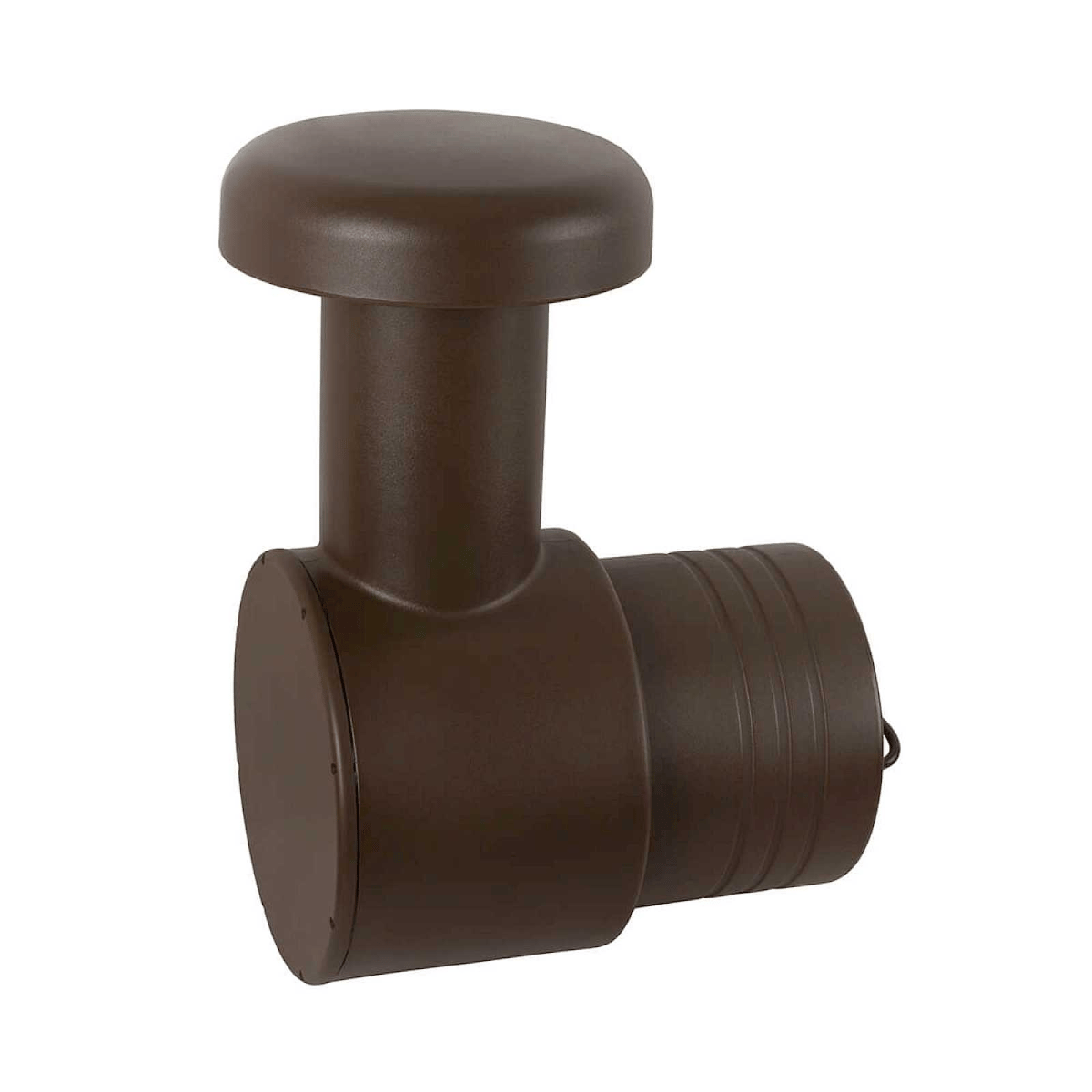

The CLG-W12 is a passive subwoofer. Optimised for discreet sub-surface installation, its proprietary Monitor Audio bandpass design incorporates an internally loaded 12" C-CAM driver, which sits in a waterproof rotationally moulded polymer enclosure buried below the garden surface—only the CLG-W12’s domed output port is visible.

Features at a glance:
12" C-CAM driver  |  Fully waterproof  |  Extended response down to 30 Hz  |  Long throw 12" sub-woofer driver  |  70/100 V and 4 ohm tap  |  Robust-moulded cabinet  |  Certified to IP54  |  Various outdoor applications

Bringing indoor high-fidelity audio outside

From this little ‘chimney’ powerfully taut bass frequencies will join the clean mids and highs of the surrounding CLG140CLG160 satellites for punchy and articulate full-range garden sound.

The CLG-W12 can be powered from a single amplifier channel at 4 ohms, with its 70/100 V line option recommended for cable runs over 10m (30ft) and for adding subwoofers to the system. In this line configuration, the CLG140/CLG160 satellites are daisy-chained to the CLG-W12, one after the other, up to a recommended maximum of twelve per subwoofer. System expansion to larger garden spaces simply involves the addition of amplifier channels, subwoofers and satellites.

In the simplest designs, satellites are connected in a mono configuration to one amplifier channel, the other channel powering the subwoofer. The use of a stereo power amplifier with 70/100-volt line capability and crossover features will allow the adjustment of levels between bass and mid-high range. Alternatively, the system can be designed to provide stereo operation by adding elements to create left/right zones.

When installed, the Climate Garden System delivers a smooth, wide-open, and controlled frequency response from 30 Hz to 30 kHz in the targeted environment: better than many home audio systems! For patio or deck applications, the CLG-W12 will install within a planter box to enhance Monitor Audio’s CL Series all-weather cabinet speakers with deep bass frequencies, giving custom installers additional design options.
