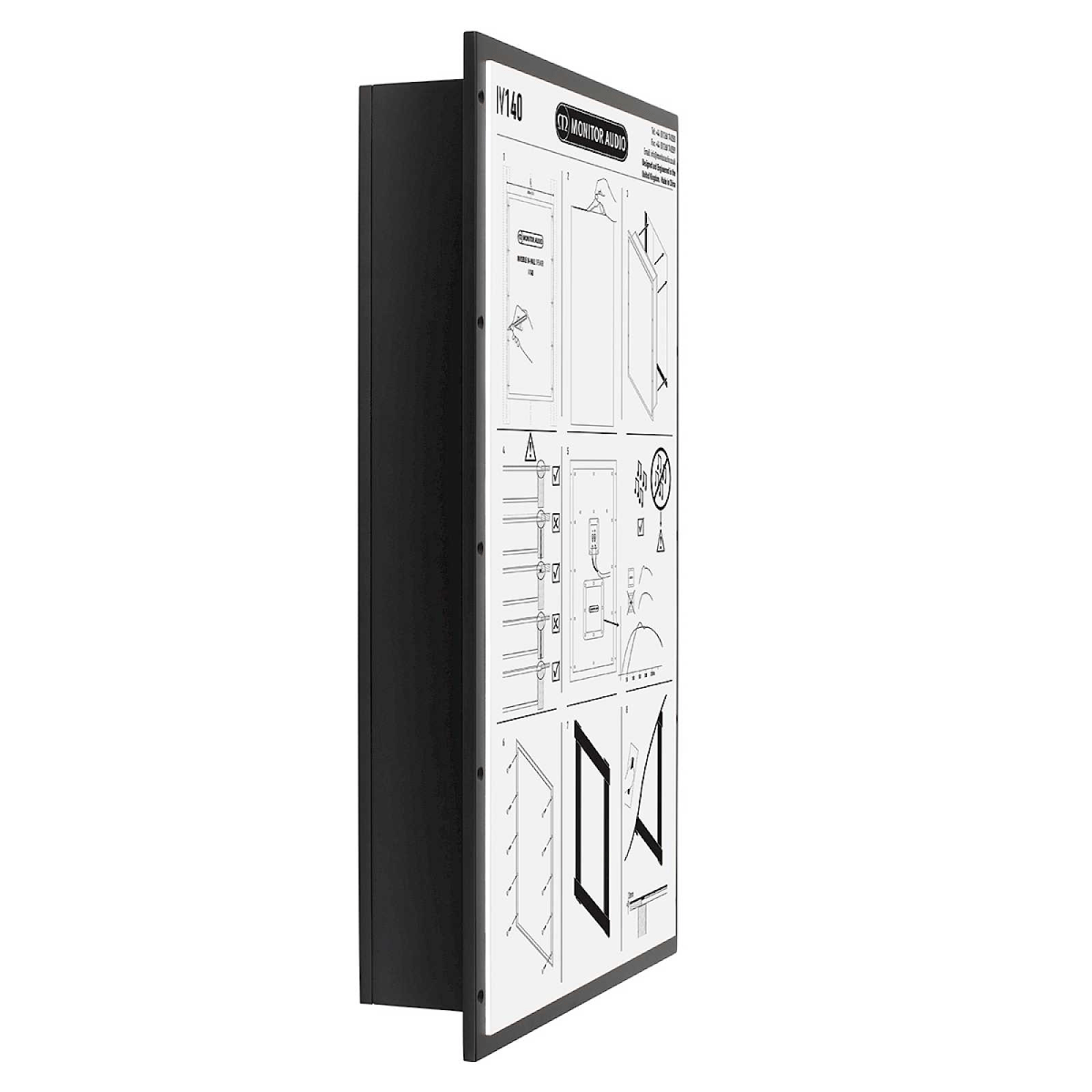

Monitor Audio IV140
The Monitor Audio IV140 invisible speaker is designed to deliver ‘best in class’ audio performance in concealed in-wall and in-ceiling applications.
Features at a glance:
Low-Frequency transducer | Dual High-Frequency transducer | Integrated ‘hybrid’ controlled performance back box system | Rigid MDF back box construction | Gold-plated Sprung push-type terminals | WBIV140 Pre-Construction Bracket | Self-tapping screw
Innovative sound solutions
Concealed in-wall or in-ceiling, the speaker fits into all conventional 4" stud bays, leaving enough room for cabling. Once installed and skimmed with plaster, the speaker is completely out of sight, with paint, light wallpaper, or fabric hiding it from view.
A large low-frequency transducer and two high-frequency transducers provide punchy, high-power bass and sound vibration. This two-way transducer design also features an integrated crossover to generate a wider frequency range and deliver crystal clear sound quality with smoother overall balance and character.
An integrated back box design isolates sound and ensures consistent, controlled performance. This rigid back box reduces sound emitted from the rear of the speaker, minimising leakage into other rooms.
Monitor Audio’s IV140 is protected against overload by automatic resetting circuit breakers (PTC). These will attenuate output for a specific time period to allow the system to cool until normal operation can safely resume.
5-Year Warranty
Due to the confidence we have in the quality, robust design, and sound performance of our speakers, Monitor Audio offers a 5-year warranty on our IV140 speakers, matching or exceeding market standards.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Frequency Response (-6 dB)
- 75 Hz — 18 kHz (CP sealed) 55 Hz — 18 kHz (Open back)
- Sensitivity (1W@1M)
- 82 dB (when installed as directed)
- Nominal Impedance
- 8 ohms
- Maximum SPL
- 102.8 dBA
- Power Handling (RMS)
- 50 Watts (full range – IEC268-5 rating) 100 Watts Music program (Using Minimum 80Hz High Pass filter)
- Recommended Amplifier Requirements
- 20-50 Watts (full range) 20-100 Watts (Using Minimum 80 Hz High Pass filter)
- Drive Unit Complement
- 1 x Low-Frequency transducer 2 x High-Frequency transducer
- Overall Dimensions (Including Grille (H x W x D))
- 642 x 401.5 mm (251/4 x 1513/16")
- Overall Depth
- 106 mm (43/16")
- Cut-Out Dimensions
- 591 x 350.5 mm (231/4 x 1313/16")
- Mounting Depth
- 94 mm (311/16")
- Connection
- Sprung push type terminals – Gold plated
- Fixing Type
- Self-tapping screw
- Construction Material
- 9 mm MDF
- Colour / Finish
- Black painted, white membrane
- Pre-Construction Bracket
- WBIV140 Pre-Construction Bracket
- Weight
- 9 kg (20 lb)
- Sold As
- Single Unit
- Warranty
- 5 years
Manufacturer's Description — Monitor Audio
The Monitor Audio IV140 invisible speaker is designed to deliver ‘best in class’ audio performance in concealed in-wall and in-ceiling applications.
Features at a glance:
Low-Frequency transducer | Dual High-Frequency transducer | Integrated ‘hybrid’ controlled performance back box system | Rigid MDF back box construction | Gold-plated Sprung push-type terminals | WBIV140 Pre-Construction Bracket | Self-tapping screw
Innovative sound solutions
Concealed in-wall or in-ceiling, the speaker fits into all conventional 4" stud bays, leaving enough room for cabling. Once installed and skimmed with plaster, the speaker is completely out of sight, with paint, light wallpaper, or fabric hiding it from view.
A large low-frequency transducer and two high-frequency transducers provide punchy, high-power bass and sound vibration. This two-way transducer design also features an integrated crossover to generate a wider frequency range and deliver crystal clear sound quality with smoother overall balance and character.
An integrated back box design isolates sound and ensures consistent, controlled performance. This rigid back box reduces sound emitted from the rear of the speaker, minimising leakage into other rooms.
Monitor Audio’s IV140 is protected against overload by automatic resetting circuit breakers (PTC). These will attenuate output for a specific time period to allow the system to cool until normal operation can safely resume.
5-Year Warranty
Due to the confidence we have in the quality, robust design, and sound performance of our speakers, Monitor Audio offers a 5-year warranty on our IV140 speakers, matching or exceeding market standards.
