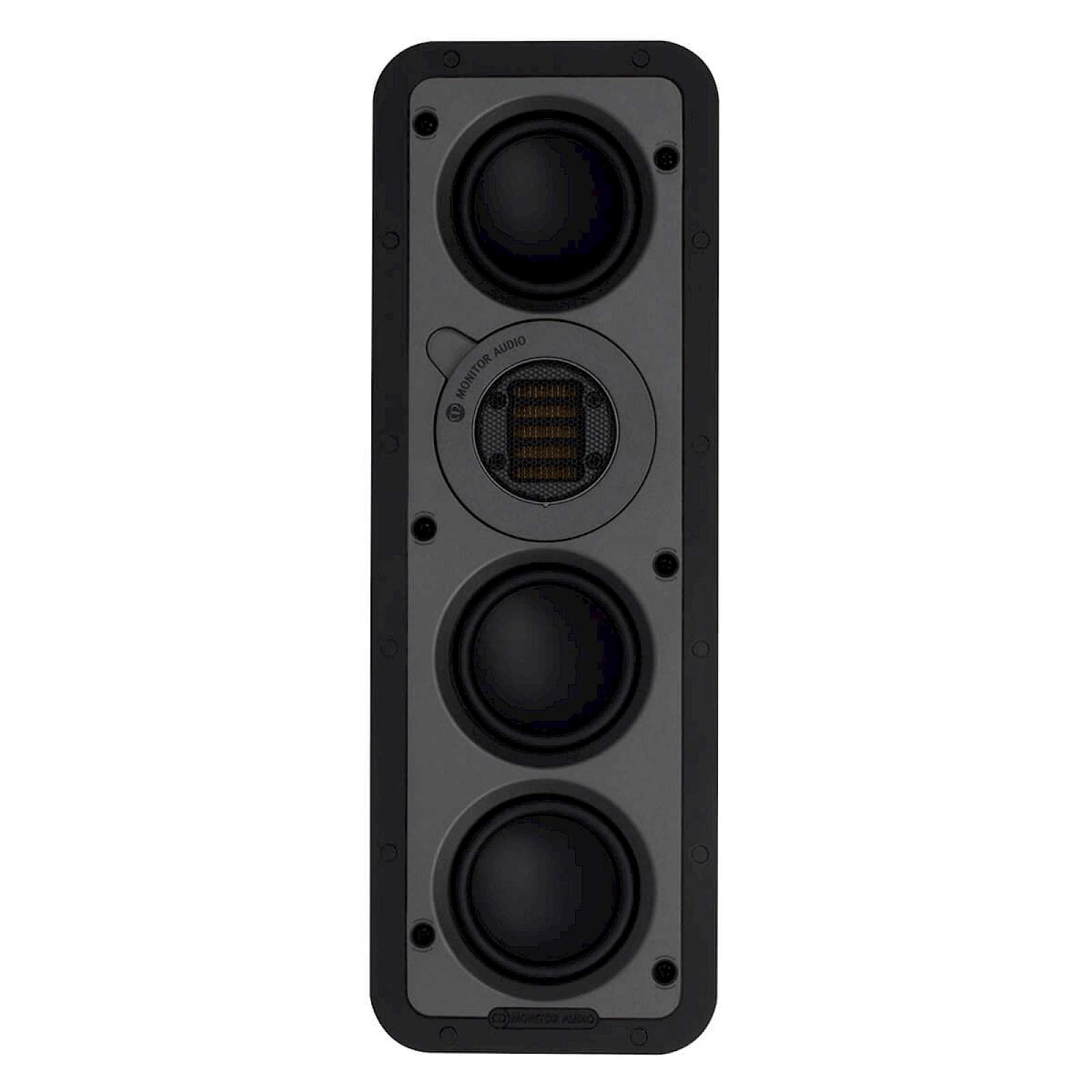

Monitor Audio WSS430
Our Super Slim in-wall range flagship, the WSS430 effortlessly delivers the most critical audiophile and cinema experiences. Using design principles and technology from our flagship Platinum II speaker models, performance from this formidable in-wall challenges that from the best high-end box speaker designs.
Features at a glance:
Super-slim design and profile | Portrait or landscape installation | 1 x 1" MPD High frequency transducer—rotatable for portrait or landscape application | 3 x 3" MMP II cone bass-mid drivers | Gold plated sprung push terminals | Tri-Grip II for easy and secure fitment | Paintable grille | Compatible with WB3 pre-construction bracket
British High-Fidelity Architectural Sound Redefined
The WSS430 flagship maintains its siblings’ shallow depth—all three feature identical footprints—and offers supreme audio performance, drawing on design principles and materials from Monitor’s Audio’s high-end Platinum II speakers.
The WSS430 range topper employs dished C-CAM cones to ensure ultimate diaphragm rigidity; the main aim here is to reduce distortion. High-strength Neo magnets and larger voice coils provide incredible driving force, low magnetic leakage, and a slim profile. The magnetic system provides an ‘under-hung’ motor arrangement, ensuring the coil stays in the gap, reducing distortion further and increasing power handling.
Still just 50 mm deep, there is a lot going on with the WSS430. The MPD high frequency transducer technology—also from Monitor Audio’s flagship Platinum II designs—ensures incredibly low distortion, delivering clear high frequency to over 50 kHz. Remove the model’s magnetic front trim, and you can rotate the tweeter to provide the optimum dispersion when using the model in landscape orientation.
Lifetime Warranty
Due to the confidence we have in the quality, robust design, and sound performance of our architectural speakers, Monitor Audio offers a lifetime warranty across our Creator Series speakers, matching or exceeding market standards.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Frequency Response (-6 dB)
- 70 Hz – 50 kHz
- Sensitivity (1W@1M)
- 87 dB
- Nominal Impedance
- 8 ohms
- Maximum SPL
- 106.5 dBA
- Power Handling (RMS)
- 75 W Full range (120 W with crossover set to 100 Hz @ 12 dB/Octave)
- Recommended Amplifier Requirements
- 10 – 120 W
- Drive Unit Complement
- 3 x 3" dished C-CAM cone bass-mid drivers 1 x MPD High frequency transducer – rotatable for portrait or landscape application
- Crossover Recommendation using AVR/Processor
- 100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)
- Overall Dimensions
- 385 x 140.5 mm (15 x 51/2")
- Overall Depth (Including Grille)
- 54.25 mm (21/8")
- Cut-Out Dimensions
- 346 x 101 mm (131/2 x 4")
- Mounting Depth
- 50 mm (2")
- Connection
- Gold Plated Sprung push terminals – For bare wire connection up to 3 mm2
- Fixing Type
- 6 position Tri-Grip dog leg fixings
- Weight
- 1.1 kg (2 lb 6 oz)
- Construction Material
- Mineral filled ABS Plastic, RoHS2 Compliant. Painted steel grille
- Pre-Construction Bracket
- WB3 Pre-Construction Bracket (Dark Blue)
- Sold As
- Single Unit
- Warranty
- Lifetime
Manufacturer's Description — Monitor Audio
Our Super Slim in-wall range flagship, the WSS430 effortlessly delivers the most critical audiophile and cinema experiences. Using design principles and technology from our flagship Platinum II speaker models, performance from this formidable in-wall challenges that from the best high-end box speaker designs.
Features at a glance:
Super-slim design and profile | Portrait or landscape installation | 1 x 1" MPD High frequency transducer—rotatable for portrait or landscape application | 3 x 3" MMP II cone bass-mid drivers | Gold plated sprung push terminals | Tri-Grip II for easy and secure fitment | Paintable grille | Compatible with WB3 pre-construction bracket
British High-Fidelity Architectural Sound Redefined
The WSS430 flagship maintains its siblings’ shallow depth—all three feature identical footprints—and offers supreme audio performance, drawing on design principles and materials from Monitor’s Audio’s high-end Platinum II speakers.
The WSS430 range topper employs dished C-CAM cones to ensure ultimate diaphragm rigidity; the main aim here is to reduce distortion. High-strength Neo magnets and larger voice coils provide incredible driving force, low magnetic leakage, and a slim profile. The magnetic system provides an ‘under-hung’ motor arrangement, ensuring the coil stays in the gap, reducing distortion further and increasing power handling.
Still just 50 mm deep, there is a lot going on with the WSS430. The MPD high frequency transducer technology—also from Monitor Audio’s flagship Platinum II designs—ensures incredibly low distortion, delivering clear high frequency to over 50 kHz. Remove the model’s magnetic front trim, and you can rotate the tweeter to provide the optimum dispersion when using the model in landscape orientation.
Lifetime Warranty
Due to the confidence we have in the quality, robust design, and sound performance of our architectural speakers, Monitor Audio offers a lifetime warranty across our Creator Series speakers, matching or exceeding market standards.
