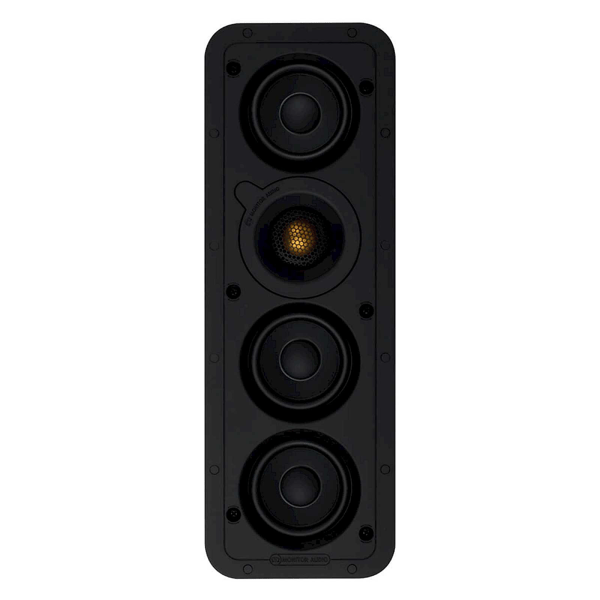

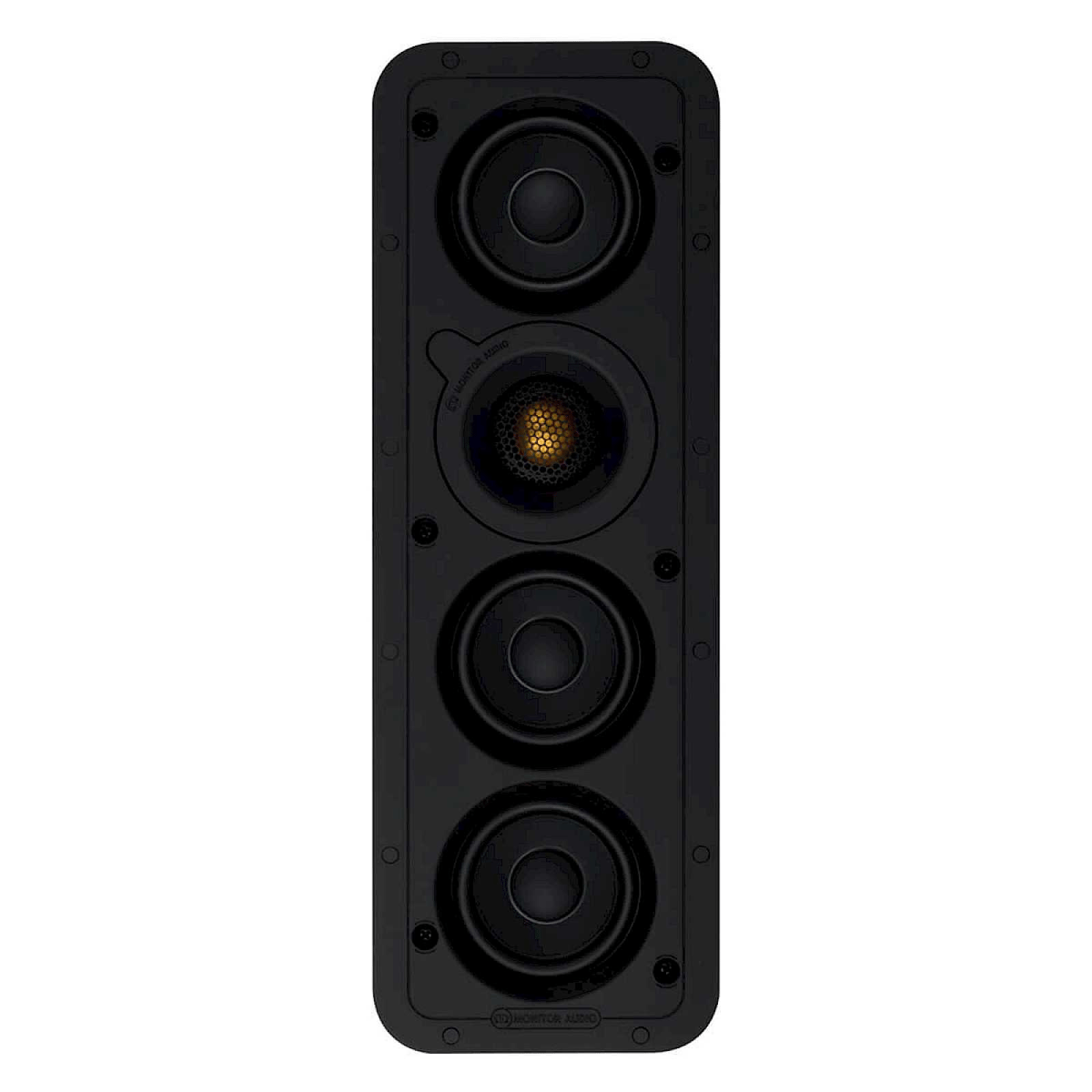

Monitor Audio WSS230
The WSS230 design brings with it our renowned C-CAM metal cone drivers, resulting in added sonic precision and detail. Offering a step-up from the WSS130, this Super Slim in-wall model is one for projects where (even) more critical music reproduction is required.
Features at a glance:
Super-slim design and profile | portrait or landscape installation | 1 x 1" C-CAM Gold Dome tweeter | 3 x 3" MMP II cone bass-mid drivers | Gold plated sprung push terminals | Tri-Grip II for easy and secure fitment | Paintable grille | Compatible with WB3 pre-construction bracket
British High-Fidelity Architectural Sound Redefined
The mid-point WSS230 offers a step-up in performance; additions here include Monitor Audio’s renowned C-CAM metal drivers, delivering increased precision and detailed sonic characteristics.
The WSS230 makes you think again—the possibility of installation in constructions featuring 2" studs slips effortlessly into view. Mounting restricted by AVC ducts, cabling, or pipework? No problem with this in-wall speaker or any of the speakers in this range. These models can also be installed between a standard 14" stud bay when used in a horizontal (portrait) orientation. Consequently, the same speakers can be installed around a screen, keeping the same neat visuals as well as identical L-C-R performance.
To provide protection from damage by residual masonry or building materials, Monitor Audio designed a protective cover to keep the drivers and crossover safe. And the trim-less grille not only provides protection, it also adopts an incredibly discreet and low-profile aesthetic appearance. These covers can be painted to achieve seamless décor integration, with the supplied replacement scrim maintaining the stealthy presence of the speaker once decorating is done. Nice and neat. Super strong, magnetically attached rare earth magnets ensure long-term security, coupled with easy installation and servicing.
Lifetime Warranty
Due to the confidence we have in the quality, robust design, and sound performance of our architectural speakers, Monitor Audio offers a lifetime warranty across our Creator Series speakers, matching or exceeding market standards.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Frequency Response (-6 dB)
- 75 Hz – 30 KHz
- Sensitivity (1W@1M)
- 87 dB
- Nominal Impedance
- 8 ohms
- Maximum SPL
- 105.6 dBA
- Power Handling (RMS)
- 60 W Full range (100 W with crossover set to 100 Hz @ 12 dB/Octave)
- Recommended Amplifier Requirements
- 10 – 100 W
- Drive Unit Complement
- 3 x 3" C-CAM cone bass-mid drivers 1 x 25 mm (1") C-CAM Gold Dome tweeter
- Crossover Recommendation using AVR/Processor
- 100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)
- Overall Dimensions
- 385 x 140.5 mm (15 x 51/2")
- Overall Depth (Including Grille)
- 54.25 mm (21/8")
- Cut-Out Dimensions
- 346 x 101 mm (131/2 x 4")
- Mounting Depth
- 50 mm (2")
- Connection
- Gold Plated Sprung push terminals – For bare wire connection up to 3 mm2
- Fixing Type
- 6 position Tri-Grip dog leg fixings
- Construction Material
- Mineral filled ABS Plastic, RoHS2 Compliant. Painted steel grille
- Weight
- 1.4 kg (3 lb 2 oz)
- Pre-Construction Bracket
- WB3 Pre-Construction Bracket (Dark Blue)
- Sold As
- Single Unit
- Warranty
- Lifetime
Manufacturer's Description — Monitor Audio
The WSS230 design brings with it our renowned C-CAM metal cone drivers, resulting in added sonic precision and detail. Offering a step-up from the WSS130, this Super Slim in-wall model is one for projects where (even) more critical music reproduction is required.
Features at a glance:
Super-slim design and profile | portrait or landscape installation | 1 x 1" C-CAM Gold Dome tweeter | 3 x 3" MMP II cone bass-mid drivers | Gold plated sprung push terminals | Tri-Grip II for easy and secure fitment | Paintable grille | Compatible with WB3 pre-construction bracket
British High-Fidelity Architectural Sound Redefined
The mid-point WSS230 offers a step-up in performance; additions here include Monitor Audio’s renowned C-CAM metal drivers, delivering increased precision and detailed sonic characteristics.
The WSS230 makes you think again—the possibility of installation in constructions featuring 2" studs slips effortlessly into view. Mounting restricted by AVC ducts, cabling, or pipework? No problem with this in-wall speaker or any of the speakers in this range. These models can also be installed between a standard 14" stud bay when used in a horizontal (portrait) orientation. Consequently, the same speakers can be installed around a screen, keeping the same neat visuals as well as identical L-C-R performance.
To provide protection from damage by residual masonry or building materials, Monitor Audio designed a protective cover to keep the drivers and crossover safe. And the trim-less grille not only provides protection, it also adopts an incredibly discreet and low-profile aesthetic appearance. These covers can be painted to achieve seamless décor integration, with the supplied replacement scrim maintaining the stealthy presence of the speaker once decorating is done. Nice and neat. Super strong, magnetically attached rare earth magnets ensure long-term security, coupled with easy installation and servicing.
Lifetime Warranty
Due to the confidence we have in the quality, robust design, and sound performance of our architectural speakers, Monitor Audio offers a lifetime warranty across our Creator Series speakers, matching or exceeding market standards.
