Monitor Audio W3L

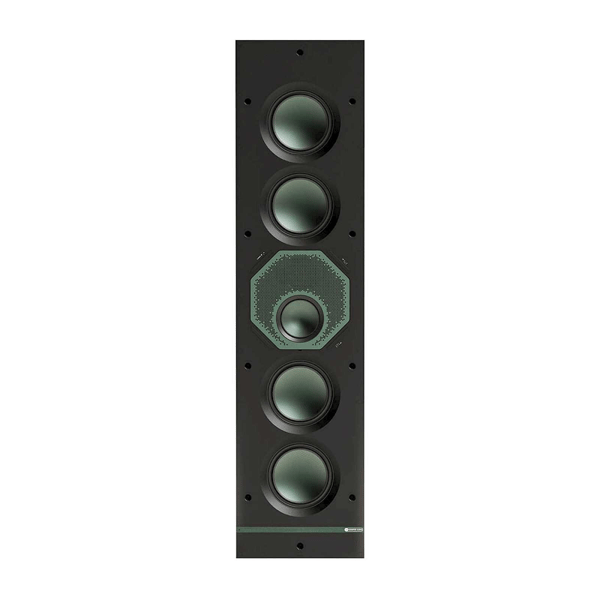

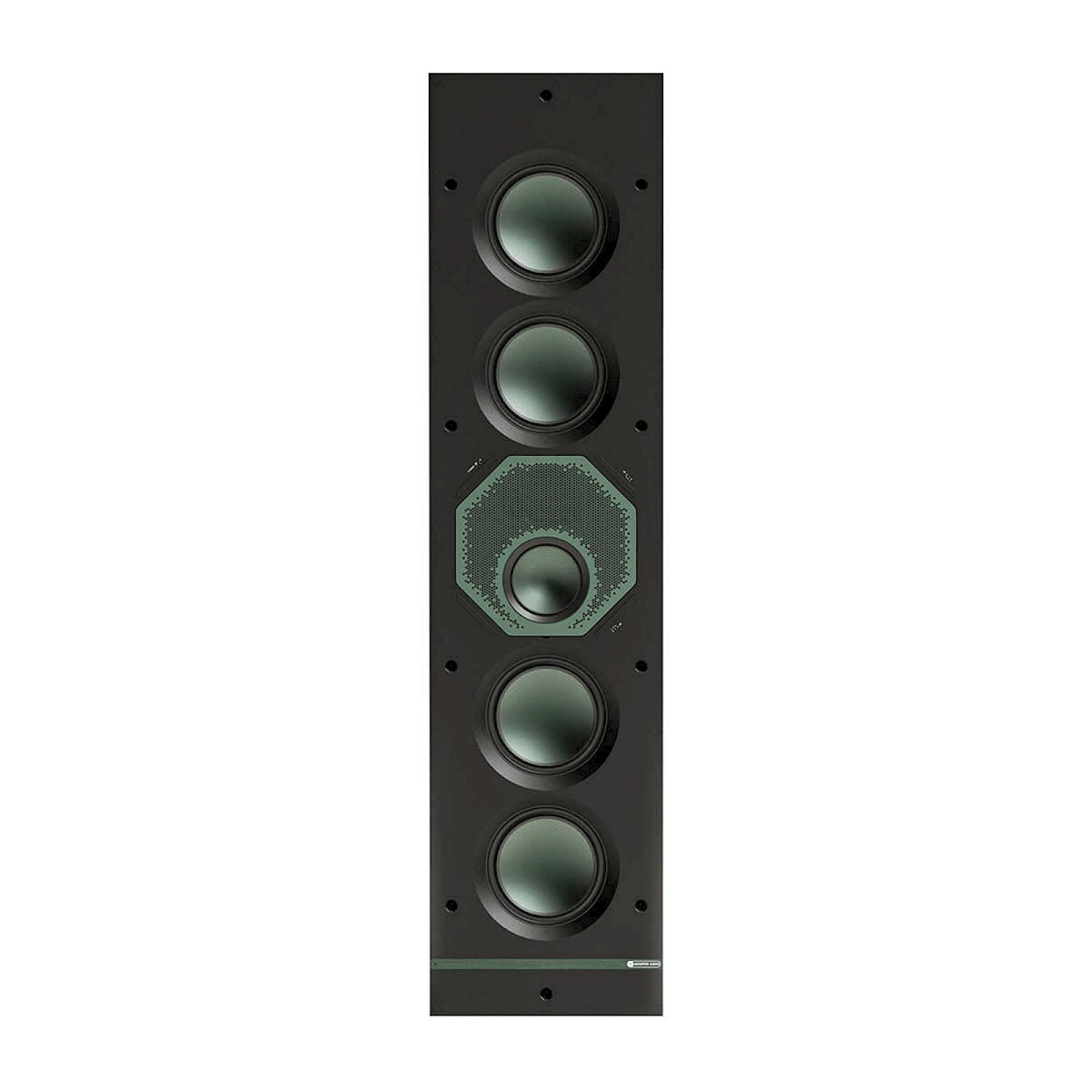

This high-performance, large-sized Tier 3 in-wall loudspeaker is a three-way model featuring four RDT III bass drivers, a C-CAM midrange driver, and an MPD II transducer. It has a cut-out dimension of 880 x 202 mm and revolutionary Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.
Features at a glance:
Ideal for installations where high-performance acoustics are desired | Three-way design | 1 x 1" MPD II transducer | 4 x 5" RDT III bass drivers | 1 x 3" C-CAM midrange driver | Quik-Link speaker cable connector for quicker installation | Tri-Grip II for easy and secure fitment
British High-Fidelity Architectural Sound Redefined
This high-performance, large Tier 3 in-wall loudspeaker is designed to deliver pristine, engaging acoustics where pristine sound quality is desired. It is a three-way model based on the Platinum Series 3G and features the very latest acoustic technologies from Monitor Audio. This includes an MPD II high-frequency transducer, developed for the THX Certified Ultra Cinergy range. The precision specification of the Micro Pleated Diaphragm technology is designed to produce accurate, lifelike sound without any distortion. This is coupled with a C-CAM midrange driver and four RDT III bass drivers.
This combination ensures levels of acoustic transparency and detail found in Monitor Audio’s premium loudspeaker ranges, where much of its acoustic technology was developed. This really is the last word in installed performance.
It has a cut-out dimension of 880 x 202 mm and uses the Quik-Link speaker cable connector, which revolutionises the ease and speed of speaker installation. Tri-Grip has also evolved for simple, reliable, and strong fitment.
Lifetime Warranty
Due to the confidence we have in the quality, robust design, and sound performance of our architectural speakers, Monitor Audio offers a lifetime warranty across our Creator Series speakers, matching or exceeding market standards.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- System Format
- 3–Way
- Frequency Response, Installed (-6dB)
- 36 Hz – 60 kHz
- Sensitivity (2.83Vrms@1m, Installed)
- 89 dB
- Nominal Impedance
- 4 Ohms
- Minimum Impedance (20Hz to 20kHz)
- 4.5 Ohms @ 1.2 kHz
- Maximum Peak SPL (AES75, Z-weighted)
- 123 dB
- Continuous Power Handling (CTA 426-B)
- 300 W
- Recommended Amplifier Power (RMS, Music Signal)
- 150 – 600 W into 4 ohms 75 – 300 W into 8 ohms
- Bass Alignment
- Sealed
- Crossover Frequency
- LF/HF: 700 kHz MF/HF: 3.25 kHz
- Drive Unit Complement
- 4 x 5" (127 mm) RDT III bass driver 1 x 3" (76 mm) C-CAM midrange driver 1 x MPD II transducer
- Mounting Depth
- 85 mm (33/8")
- Cutout L x W
- 880 x 202 mm (345/8 x 715/16")
- Pre-Construction Bracket
- WL-B
- External Dimensions with all accessories fitted (H x W x D)
- 909 x 231 x 93 mm (221/16 x 91/8 x 39/16")
- Weight (each)
- 12.4 kg (27 lb 5 oz)
- Cabinet Finish
- Matte black & Orange & Green
- Sold As
- Single Unit
- Warranty
- Lifetime
Manufacturer's Description — Monitor Audio
This high-performance, large-sized Tier 3 in-wall loudspeaker is a three-way model featuring four RDT III bass drivers, a C-CAM midrange driver, and an MPD II transducer. It has a cut-out dimension of 880 x 202 mm and revolutionary Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.
Features at a glance:
Ideal for installations where high-performance acoustics are desired | Three-way design | 1 x 1" MPD II transducer | 4 x 5" RDT III bass drivers | 1 x 3" C-CAM midrange driver | Quik-Link speaker cable connector for quicker installation | Tri-Grip II for easy and secure fitment
British High-Fidelity Architectural Sound Redefined
This high-performance, large Tier 3 in-wall loudspeaker is designed to deliver pristine, engaging acoustics where pristine sound quality is desired. It is a three-way model based on the Platinum Series 3G and features the very latest acoustic technologies from Monitor Audio. This includes an MPD II high-frequency transducer, developed for the THX Certified Ultra Cinergy range. The precision specification of the Micro Pleated Diaphragm technology is designed to produce accurate, lifelike sound without any distortion. This is coupled with a C-CAM midrange driver and four RDT III bass drivers.
This combination ensures levels of acoustic transparency and detail found in Monitor Audio’s premium loudspeaker ranges, where much of its acoustic technology was developed. This really is the last word in installed performance.
It has a cut-out dimension of 880 x 202 mm and uses the Quik-Link speaker cable connector, which revolutionises the ease and speed of speaker installation. Tri-Grip has also evolved for simple, reliable, and strong fitment.
Lifetime Warranty
Due to the confidence we have in the quality, robust design, and sound performance of our architectural speakers, Monitor Audio offers a lifetime warranty across our Creator Series speakers, matching or exceeding market standards.
