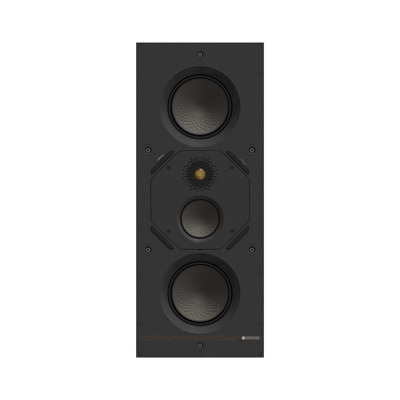

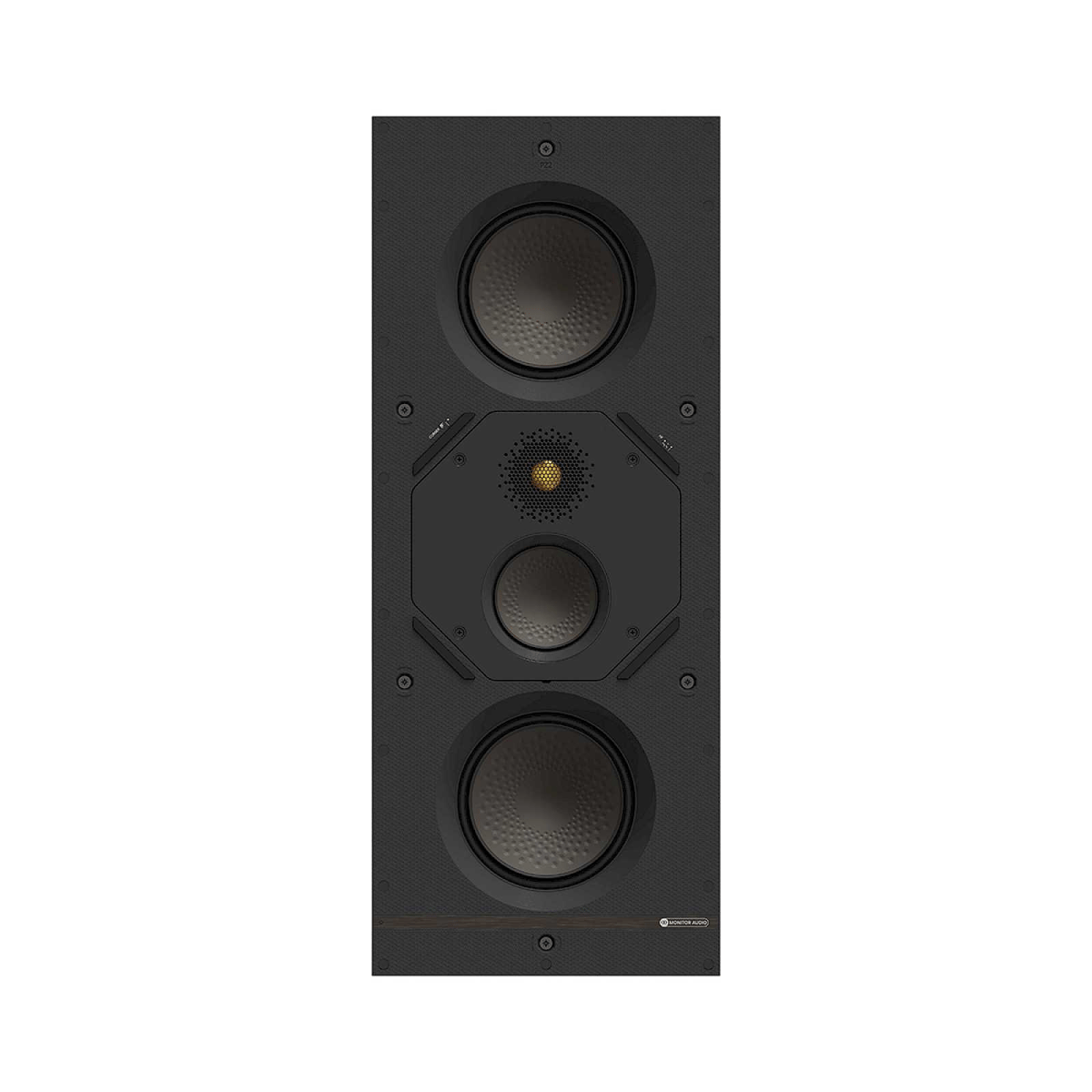

Monitor Audio W2M-CP
This medium-sized Tier 2 in-wall loudspeaker is a three-way model featuring two RST II bass drivers, an RST II mid-range driver, and a C-CAM tweeter. Its fully sealed back box delivers consistency of performance, no matter where it is used. It has a cut-out dimension of 527 x 198 mm and a revolutionary Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.
Features at a glance:
Ideal for installations where pristine acoustic performance is required | Filled back box | Three-way design | 1 x 1" C-CAM tweeter with UD Waveguide II for lifelike sound | 1 x 3" RST II mid-range driver | 2 x 5" RST II bass drivers | Quik-Link speaker cable connector for quicker installation | Tri-Grip II for easy and secure fitment
British High-Fidelity Architectural Sound Redefined
This medium-sized Tier 2 in-wall loudspeaker is designed to deliver pristine, engaging acoustics where high-performance sound is a key requirement. It is a three-way model featuring two RST II bass drivers, an RST II mid-range driver, and a C-CAM tweeter. This combination of clear and lifelike high-fidelity sound is of the quality you’d expect from any Monitor Audio passive box loudspeaker.
As a Controlled Performance (CP) model, it is fitted with a fully sealed back box that provides an ideal air load for the drivers, optimising mid-range and bass performance while maintaining sonic consistency regardless of interior wall construction. These rigid, mineral-filled enclosures reduce the sound from the back of the cabinet by around 30 dB. This range guarantees excellent audio quality and versatility for a superior level of sound isolation between rooms and floors.
It has a cutout dimension of 527 x 198 mm and uses the Quik-Link speaker cable connector, which revolutionises the ease and speed of speaker installation. Tri-Grip has also evolved for simple, reliable, and strong fitment.
Lifetime Warranty
Due to the confidence we have in the quality, robust design, and sound performance of our architectural speakers, Monitor Audio offers a lifetime warranty across our Creator Series speakers, matching or exceeding market standards.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
Forum Mentions
No forum mentions found yet
Specifications
- System Format
- 3–Way
- Channels
- 1
- Frequency Response, Installed (-6dB)
- 60 Hz – 35 kHz
- Nominal Impedance
- 6 ohm
- Minimum Impedance (20Hz to 20kHz)
- 4.8 Ohm @ 1 kHz (4.3 Ohm @ 15 kHz)
- Sensitivity (2.83Vrms@1m, Installed)
- 87 dB
- Maximum Peak SPL* (single speaker @ 1m Z-Weighted)
- 118 dB
- Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)
- 100 W
- Recommended Amplifier Power (RMS into 8 OHM, Music Signal)
- 40 – 150 W
- Drive Unit Complement
- 2 x 5" (127 mm) RST II bass driver 1 x 3" (76 mm) RST II mid-range driver 1 x 1" (25 mm) C-CAM tweeter
- Crossover Frequency
- LF/HF: 550 kHz MF/HF: 3 kHz
- Bass Alignment
- Sealed
- Mounting Depth
- 97 mm (313/16")
- Cutout L x W
- 527 x 198 mm (203/4 x 713/16")
- External Dimensions (Including Grille (H x W x D))
- 560 x 231 x 102 mm (221/16 x 91/8 x 41/64")
- Weight (each)
- 4.4 kg (9 lb 11 oz)
- Pre-Construction Bracket
- WM-B
- Cabinet Finish
- Matte black & Orange & Bronze
- Sold As
- Single Unit
- Corner Switch
- On/Off
- HF Switch
- - /0/ +
- Warranty
- Lifetime
Manufacturer's Description — Monitor Audio
This medium-sized Tier 2 in-wall loudspeaker is a three-way model featuring two RST II bass drivers, an RST II mid-range driver, and a C-CAM tweeter. Its fully sealed back box delivers consistency of performance, no matter where it is used. It has a cut-out dimension of 527 x 198 mm and a revolutionary Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.
Features at a glance:
Ideal for installations where pristine acoustic performance is required | Filled back box | Three-way design | 1 x 1" C-CAM tweeter with UD Waveguide II for lifelike sound | 1 x 3" RST II mid-range driver | 2 x 5" RST II bass drivers | Quik-Link speaker cable connector for quicker installation | Tri-Grip II for easy and secure fitment
British High-Fidelity Architectural Sound Redefined
This medium-sized Tier 2 in-wall loudspeaker is designed to deliver pristine, engaging acoustics where high-performance sound is a key requirement. It is a three-way model featuring two RST II bass drivers, an RST II mid-range driver, and a C-CAM tweeter. This combination of clear and lifelike high-fidelity sound is of the quality you’d expect from any Monitor Audio passive box loudspeaker.
As a Controlled Performance (CP) model, it is fitted with a fully sealed back box that provides an ideal air load for the drivers, optimising mid-range and bass performance while maintaining sonic consistency regardless of interior wall construction. These rigid, mineral-filled enclosures reduce the sound from the back of the cabinet by around 30 dB. This range guarantees excellent audio quality and versatility for a superior level of sound isolation between rooms and floors.
It has a cutout dimension of 527 x 198 mm and uses the Quik-Link speaker cable connector, which revolutionises the ease and speed of speaker installation. Tri-Grip has also evolved for simple, reliable, and strong fitment.
Lifetime Warranty
Due to the confidence we have in the quality, robust design, and sound performance of our architectural speakers, Monitor Audio offers a lifetime warranty across our Creator Series speakers, matching or exceeding market standards.
