Monitor Audio W1M-E

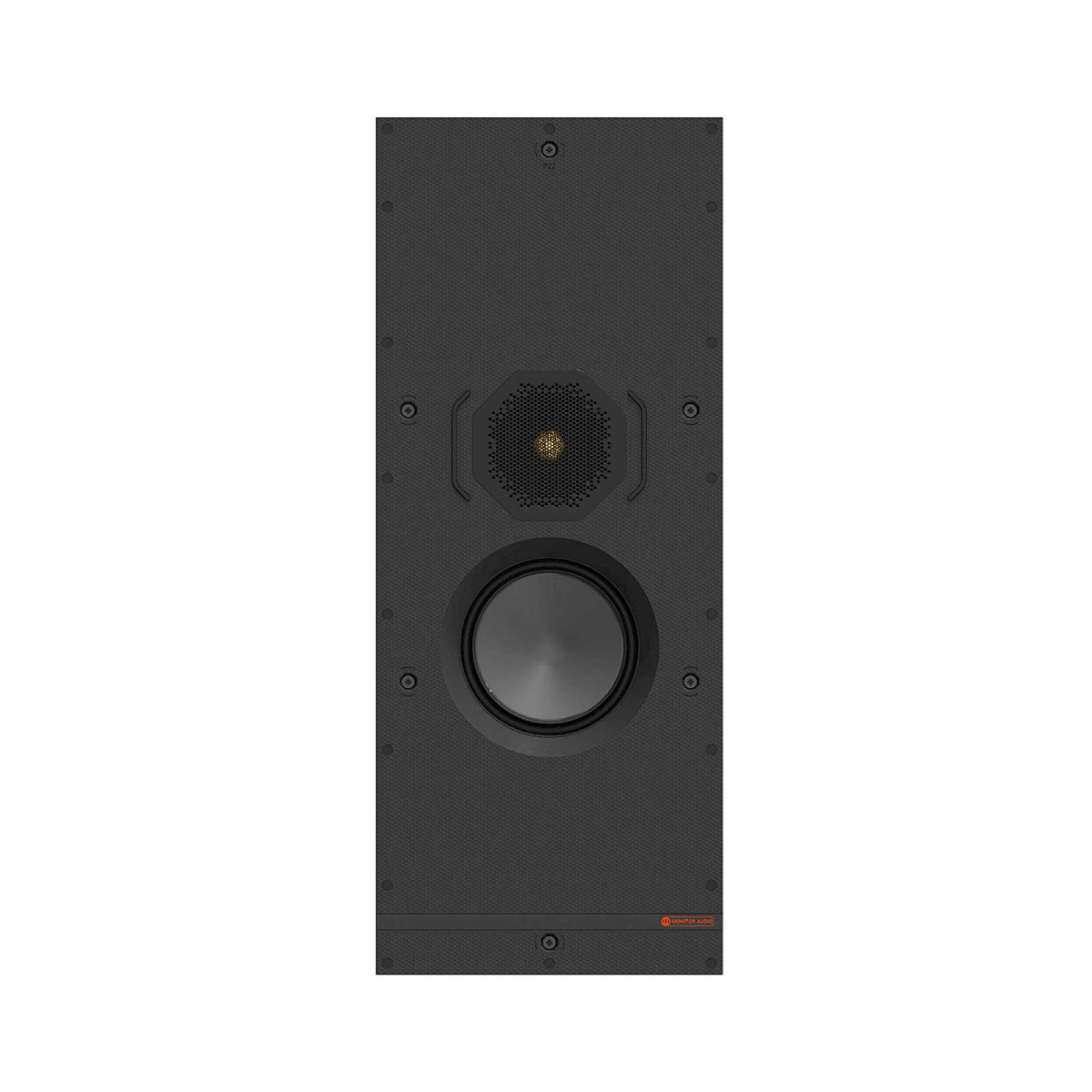

This medium-sized Tier 1 in-wall loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 527 x 198 mm and a revolutionary Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.
Features at a glance:
Ideal for cost-effective installations | Two-way design | 1 x 1" C-CAM tweeter with UD Waveguide I 1 x 5" C-CAM mid-bass driver | Quik-Link speaker cable connector for quicker installation | Tri-Grip II for easy and secure fitment
British High-Fidelity Architectural Sound Redefined
This medium-sized Tier 1 in-wall loudspeaker is designed for cost-effective installations, where product simplicity and solid acoustic performance is required. It is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 527 x 198 mm and uses the Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Lifetime Warranty
Due to the confidence we have in the quality, robust design, and sound performance of our architectural speakers, Monitor Audio offers a lifetime warranty across our Creator Series speakers, matching or exceeding market standards.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- System Format
- 2–Way
- Channels
- 1
- Frequency Response, Installed (-6dB)
- 40 Hz – 30 kHz
- Nominal Impedance
- 8 ohm
- Minimum Impedance (20Hz to 20kHz)
- 6.5 Ohm @ 200 Hz (6.2 Ohm @ 20 kHz)
- Sensitivity (2.83Vrms@1m, Installed)
- 84 dB
- Maximum Peak SPL* (single speaker @ 1m Z-Weighted)
- 110 dB
- Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)
- 50 W
- Recommended Amplifier Power (RMS into 8 OHM, Music Signal)
- 25 – 100 W
- Drive Unit Complement
- 1 x 5" (127 mm) C-CAM mid-bass driver 1 x 1" (25 mm) C-CAM tweeter
- Crossover Frequency
- LF/HF: 2.5 kHz
- Mounting Depth
- 85 mm (33/8")
- Cutout L x W
- 527 x 198 mm (203/4 x 713/16")
- External Dimensions (Including Grille (H x W x D))
- 560 x 231 x 90 mm (221/16 x 91/8 x 39/16")
- Weight (each)
- 2.6 kg (5 lb 11 oz)
- Pre-Construction Bracket
- WM-B
- Cabinet Finish
- Matte black & Orange
- Sold As
- Single Unit
- Warranty
- Lifetime
Manufacturer's Description — Monitor Audio
This medium-sized Tier 1 in-wall loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 527 x 198 mm and a revolutionary Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.
Features at a glance:
Ideal for cost-effective installations | Two-way design | 1 x 1" C-CAM tweeter with UD Waveguide I 1 x 5" C-CAM mid-bass driver | Quik-Link speaker cable connector for quicker installation | Tri-Grip II for easy and secure fitment
British High-Fidelity Architectural Sound Redefined
This medium-sized Tier 1 in-wall loudspeaker is designed for cost-effective installations, where product simplicity and solid acoustic performance is required. It is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 527 x 198 mm and uses the Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Lifetime Warranty
Due to the confidence we have in the quality, robust design, and sound performance of our architectural speakers, Monitor Audio offers a lifetime warranty across our Creator Series speakers, matching or exceeding market standards.
