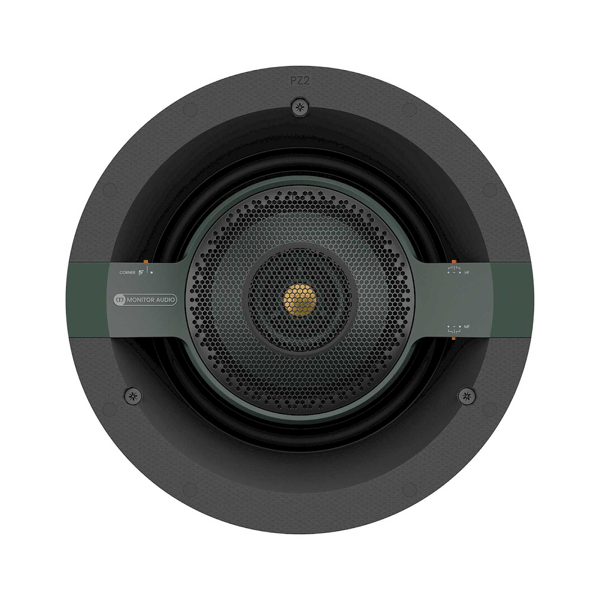

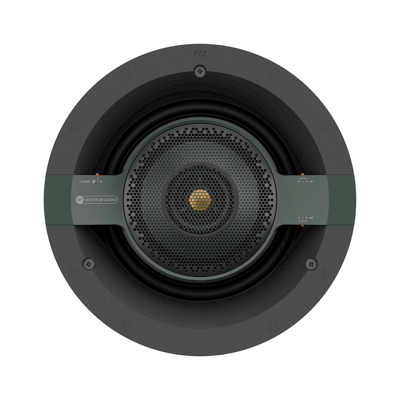

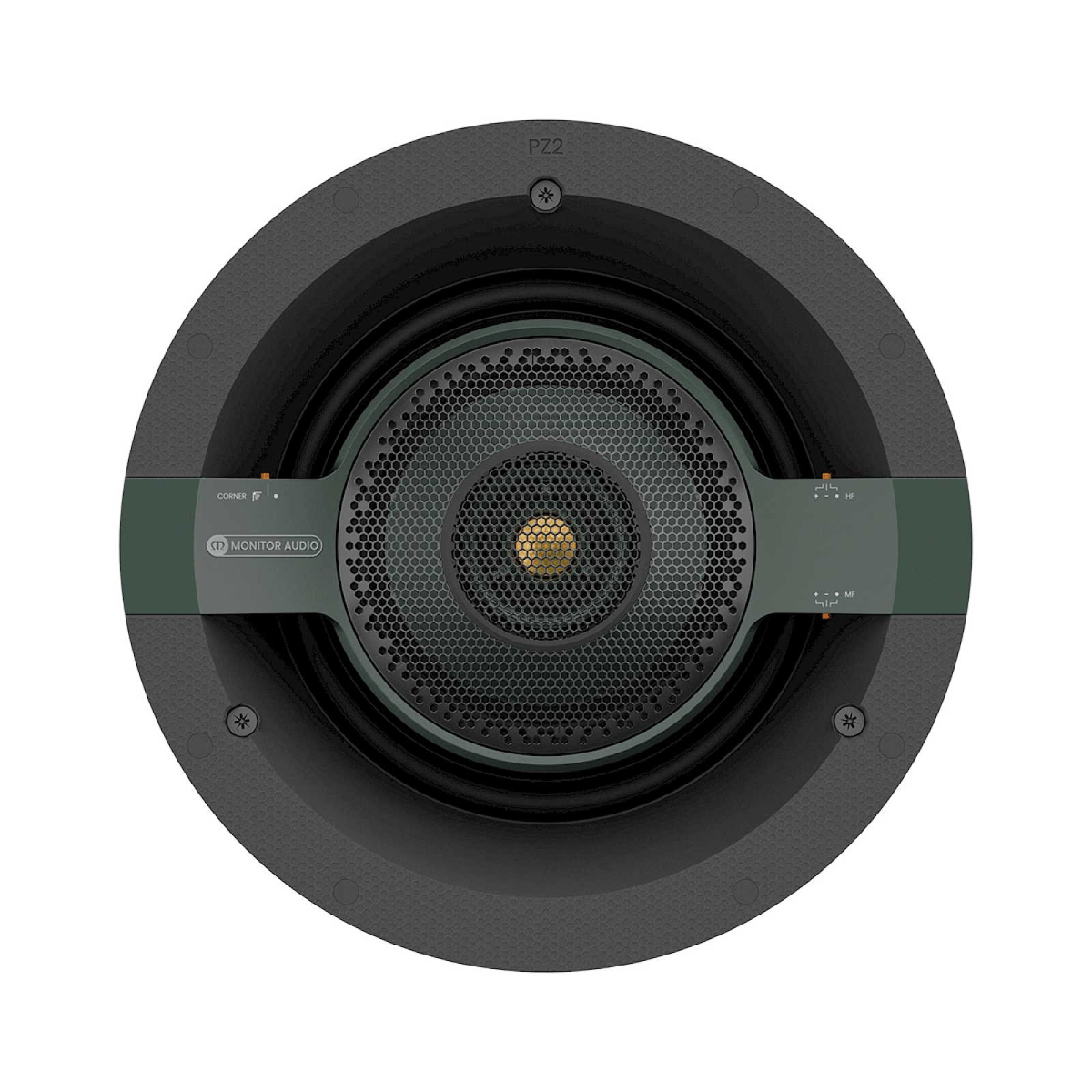

Monitor Audio C3M
This high-performance, medium-sized Tier 3 in-ceiling loudspeaker is a three-way model featuring an RDT III bass driver, IDC II midrange driver and IDC II tweeter with UD Waveguide II. It has a cut-out dimension of 212 mm and a revolutionary Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.
Features at a glance:
Ideal for installations where high-performance acoustics are desired | Three-way design | Mid-frequency ‘mid-pod array’ | 1 x 1" IDC II tweeter with UD Waveguide II for lifelike sound | 1 x 7" RDT III bass driver | 1 x 4" IDC II midrange driver | Quik-Link speaker cable connector for quicker installation | Tri-Grip II for easy and secure fitment
British High-Fidelity Architectural Sound Redefined
This high-performance, medium Tier 3 in-ceiling loudspeaker is designed to deliver pristine, engaging acoustics where pristine sound quality is desired. It is a three-way model featuring the very latest acoustic technologies from Monitor Audio.
This really is the last word in installed performance, featuring an RDT III bass driver, IDC II midrange driver, and IDC II tweeter with UD Waveguide II. This high-end combination ensures levels of acoustic transparency and detail found in Monitor Audio’s premium loudspeaker ranges, where much of his acoustic technology was developed. It has a cutout diameter of 212 mm and uses the Quik-Link speaker cable connector, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable, and strong fitment.
An optional square or premium grille can be used with this model.
A Choice of Grilles offering Timeless Style
All Creator Series in-ceiling speakers come, as standard, with white grilles.
For those that want to ‘hide’ or ‘blend’ their integrated speakers with darker décor, black grilles are also available as an optional accessory in round and square designs.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- System Format
- 3–Way
- Channels
- 1
- Frequency Response, Installed (-6dB)
- 45 Hz – 35 kHz
- Nominal Impedance
- 6 ohm
- Minimum Impedance (20Hz to 20kHz)
- 4.8 Ohm @ 2 kHz
- Sensitivity (2.83Vrms@1m, Installed)
- 87 dB
- Maximum Peak SPL* (single speaker @ 1m Z-Weighted)
- 116 dB
- Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)
- 120 W
- Recommended Amplifier Power (RMS into 8 OHM, Music Signal)
- 45 – 180 W
- Drive Unit Complement
- 1 x 7" (178 mm) RDT III bass driver 1 x 4" (102 mm) IDC II midrange driver 1 x 1" (25 mm) IDC II tweeter
- Crossover Frequency
- LF/MF: 800 Hz MF/HF: 3.5 kHz
- Mounting Depth
- 148 mm (513/16")
- Cut-Out Hole Diameter
- 212 mm (83/8")
- External Dimensions (Including Grille (H x W x D))
- 242 x 242 x 151 mm (91/2 x 91/2 x 515/16”)
- Weight (each)
- 3.4 kg (7 lb 8 oz)
- Pre-Construction Bracket
- CM-B
- Cabinet Finish
- Matte black & Orange & Green
- Sold As
- Single Unit with CM-Round Grille (white)
- Corner Switch
- On/Off
- HF Switch
- - /0/ +
- MF Switch
- - /0/ +
- Warranty
- Lifetime
