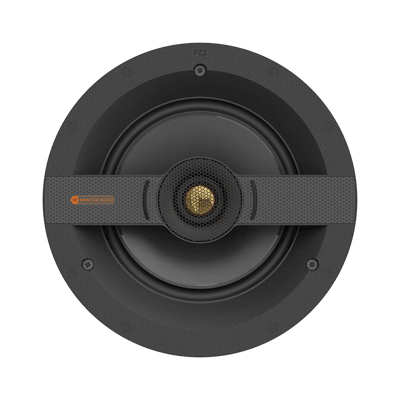

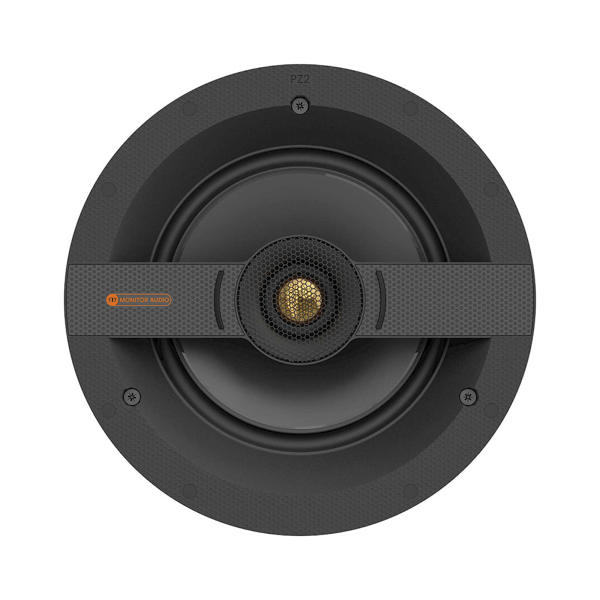

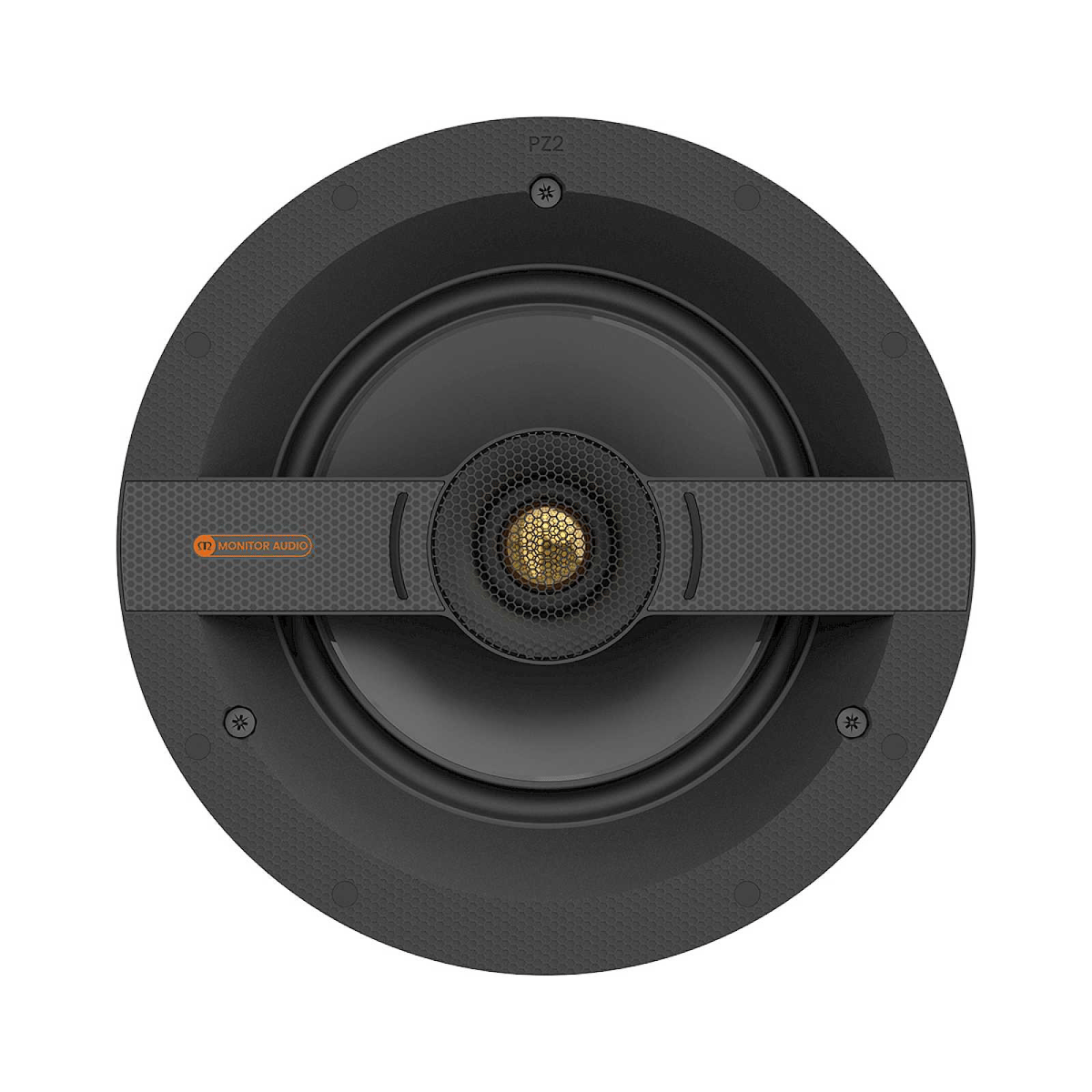

Monitor Audio C1M
This medium Tier 1 in-ceiling loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 212 mm, a revolutionary Quik-Link speaker cable connector, and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.
Features at a glance:
Ideal for cost-effective installations | Two-way design | 1 x 1" C-CAM tweeter with UD Waveguide I 1 x 7" C-CAM mid-bass driver | Quik-Link speaker cable connector for quicker installation | Tri-Grip II for easy and secure fitment
British High-Fidelity Architectural Sound Redefined
This medium-sized Tier 1 in-ceiling loudspeaker is designed for cost-effective installations where product simplicity and solid acoustic performance are required. It is a two-way model featuring a C-CAM mid-bass driver and a C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear, lifelike, high-fidelity sound—of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 212 mm and uses the Quik-Link speaker cable connector, which revolutionises the ease and speed of speaker installation. Tri-Grip has also evolved for simple, reliable, and strong fitment.
A Choice of Grilles offering Timeless Style
All Creator Series in-ceiling speakers come, as standard, with white grilles.
For those that want to ‘hide’ or ‘blend’ their integrated speakers with darker décor, black grilles are also available as an optional accessory in round and square designs.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Forum Mentions
Specifications
- System Format
- 2–Way
- Channels
- 1
- Frequency Response, Installed (-6dB)
- 35 Hz – 30 kHz
- Nominal Impedance
- 8 ohm
- Minimum Impedance (20Hz to 20kHz)
- 6.5 Ohm @ 150 Hz
- Sensitivity (2.83Vrms@1m, Installed)
- 86 dB
- Maximum Peak SPL* (single speaker @ 1m Z-Weighted)
- 113 dB
- Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)
- 65 W
- Recommended Amplifier Power (RMS into 8 OHM, Music Signal)
- 35 – 130 W
- Drive Unit Complement
- 1 x 7" (178 mm) C-CAM mid-bass driver 1 x 1" (25 mm) C-CAM tweeter
- Crossover Frequency
- LF/HF: 2 kHz
- Mounting Depth
- 99 mm (37/8")
- Cut-Out Hole Diameter
- 212 mm (83/8")
- External Dimensions (Including Grille (H x W x D))
- 242 x 242 x 103 mm (91/2 x 91/2 x 44/16")
- Weight (each)
- 1.9 kg (4 lb 3 oz)
- Pre-Construction Bracket
- CM-B
- Cabinet Finish
- Matte black & Orange
- Sold As
- Single Unit with CM-Round Grille (white)
- Warranty
- Lifetime
Manufacturer's Description — Monitor Audio
This medium Tier 1 in-ceiling loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 212 mm, a revolutionary Quik-Link speaker cable connector, and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.
Features at a glance:
Ideal for cost-effective installations | Two-way design | 1 x 1" C-CAM tweeter with UD Waveguide I 1 x 7" C-CAM mid-bass driver | Quik-Link speaker cable connector for quicker installation | Tri-Grip II for easy and secure fitment
British High-Fidelity Architectural Sound Redefined
This medium-sized Tier 1 in-ceiling loudspeaker is designed for cost-effective installations where product simplicity and solid acoustic performance are required. It is a two-way model featuring a C-CAM mid-bass driver and a C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear, lifelike, high-fidelity sound—of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 212 mm and uses the Quik-Link speaker cable connector, which revolutionises the ease and speed of speaker installation. Tri-Grip has also evolved for simple, reliable, and strong fitment.
A Choice of Grilles offering Timeless Style
All Creator Series in-ceiling speakers come, as standard, with white grilles.
For those that want to ‘hide’ or ‘blend’ their integrated speakers with darker décor, black grilles are also available as an optional accessory in round and square designs.
