MiniDsp WI-DG

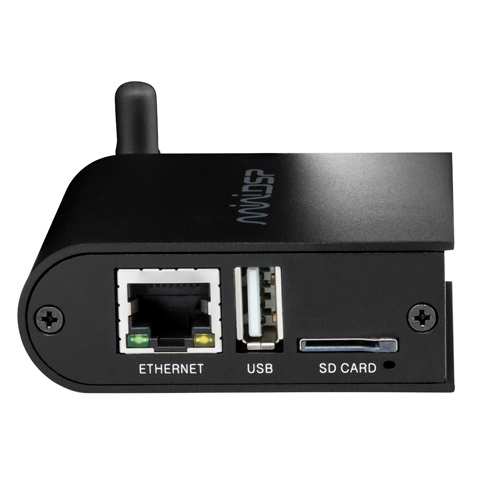

The WI-DG is a Wifi/Ethernet to USB bridge that is pre-configured for Plug&Play discovery and control over IP networks. The Wi-DG is a tiny adaptor that interfaces to the USB port of a miniDSP hardware unit and acts as a Wi-Fi to USB bridge. Supported miniDSP plugins transparently detect and communicate with the miniDSP via the Wi-DG, enabling control and configuration over the network. Normally, the computer running the appropriate miniDSP plugin is connected directly to the miniDSP hardware unit using a USB cable. With the Wi-DG, however, the computer connects using Wi-Fi in 2 possible modes of operations: Station mode or Access Point mode. Please check out the user manual for more details.

Last but not least, all below supported platform can be controlled by miniDSP's free IoSAndroid platform for basic control of Preset/Master Volume and active source. Check out our application note for more details.

WARNING: The WIDG is only compatilbe with miniDSP plugins. Unfortunately it can't be used with Dirac Live software for control. Also note that only ONE WIDG can be used in a system at a time. Using multiple unit can lead to some unknown configurations.

Features

• 2.4GHz b/g/n Wifi Router (Access point/Station Mode)
• Ethernet/Wifi control of miniDSP platforms over plugin/apps

Product Downloads

• WI-DG Product Datasheet
• WI-DG User Manual

What's in the box?

• 1 x WI-DG interface
• 1 x 1m microUSB cable
• 1 x USB power supply with US/UK/EU plugsremoved on 17May2021

Supported plugins (IP field & Self discovery)

• miniDSP 2x4HD (Available)
• SHD series (available)
• Flex / Flex DL (Available)
• Flex Eight/Eight DL (Requires fw v0.95 upgrade)
• Flex HT/HTx (Requires fw v0.95 upgrade)
• DDRC-24 (Available)
• miniDSP 2x8/8x8/4x10/10x10 (Available)
• nanoDIGI 2x8 (Available)
• C-DSP 6x8 (Available)
• C-DSP 8x12 (Available)
• OpenDRC series (Available)
• DDRC-22 series (Future)
• DDRC-88A/D (Available)
• SHD series (Available)

Setting up WI-DG with your Android/IoS app
