MiniDsp UMIK-2
MiniDSP is pleased to introduce the UMIK-2, its second-generation omni-directional acoustic measurement microphone. The UMIK-2
However, the UMIK-2 is also a significant upgrade in performance and functionality. A larger 1/2-inch microphone capsule provides lower noise and lower distortion, which is preserved by the 32-bit ADC (analog-to-digital convertor) built into the microphone shell. Furthermore, sample rates are selectable from 44.1 to 192 kHz for compatibility with the widest possible range of measurement and recording software.
The UMIK-2 is of course fully compatible with REW (Room EQ Wizard) and Dirac Live (version 3 and later). Driverless operation with macOS, Linux, Android and iOS, and a supplied ASIO driver for Windows ensure simple integration into many other measurement and recording applications. With the UMIK-2, miniDSP once agains stretch the limits of affordable acoustic measurement gear. Let the measurement fun begin!
Features
- USB Audio Reference Measurement Microphone
- 1/2" capsule on 60 UNS thread
- 32bit 44.1~192kHz recording, Custom Windows ASIO drivers and Plug&Play on Linux/Mac OSx
- Low noise floor preamps, 120DR ADC
- Plug&Play compatible with wide range of software, including REW & Dirac Live platforms
Product Downloads
- UMIK-2 Product datasheet
- UMIK-2 User Manual
- Win Driver download link ( Please read manual for installation details)

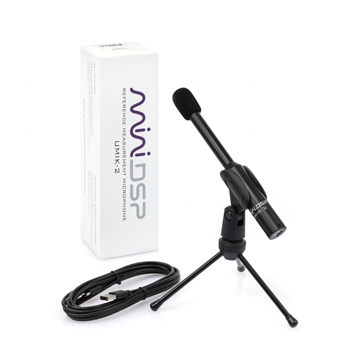

What's in the box?
- 1 x UMIK-2 microphone
- 1 x shielded USB type C cable (2m)
- 1 x mini Tripod + Mic Clamp
- 1 x wind screen
Which calibration file should I use and where to point the UMIK-2?
- For stereo system (e.g. 2ch dirac live, single speaker measurement), use the 0deg file and point the UMIK-2 at the speakers
- For multichannel system (E.g. 5.1/7.1) or a surround application where multiple speakers are spreadout around the room, use the 90deg file and point the UMIK-2 at the ceiling.
Recommended by our Friends
The miniDSP team built long term relationships with the following leading software applications and is proud to showcase them as our recommeded software solutions:
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- USB Audio Controller
- XMOS 500MHz multicore processor, USB Audio Class 2 (UAC2) 32bit 44.1~192kHz sample rate
- ADC
- 32bit ADC with embedded PGA for up to 60dB analog gain 120dB SNR, Gain control via Mac/Win application
- Capsules
- 1/2” Low noise Pre-polarized condenser on 60UNS thread Sensitivity: -34 dBfs @ 0dB Gain (94 dB SPL. 1 kHz) Noise level: -105.3dBfs (A) @ 0 dB gain MAX SPL(0dBfs): 125dB SPL Equivalent Input Noise (EIN): 20dB SPL @ 0dB gain
- Connectivity
- USB 2.0 streaming, USB Type C connector
- Software
- As a standard USB audio microphone, UMIK-2 is compatible with any software. The following proven platforms with plug&play integration. - Room EQ Wizard freeware for acoustic measurements - Dirac Live Room Correction software
- USB Audio
- Mac OSx/Linux/Android Driverless ASIO compatible driver for Windows via miniDSP's UAC2 drivers iOS support with USB camera adaptor
- Accessories
- 1 x miniTRIPOD with microphone clamp 1 x windscreen 1 x USB 2m long usb cable
- Dimensions (W x D) / Weight
- 21 x 185 mm, 150g
- Construction
- Aluminum body
Manufacturer's Description — MiniDsp
MiniDSP is pleased to introduce the UMIK-2, its second-generation omni-directional acoustic measurement microphone. The UMIK-2
However, the UMIK-2 is also a significant upgrade in performance and functionality. A larger 1/2-inch microphone capsule provides lower noise and lower distortion, which is preserved by the 32-bit ADC (analog-to-digital convertor) built into the microphone shell. Furthermore, sample rates are selectable from 44.1 to 192 kHz for compatibility with the widest possible range of measurement and recording software.
The UMIK-2 is of course fully compatible with REW (Room EQ Wizard) and Dirac Live (version 3 and later). Driverless operation with macOS, Linux, Android and iOS, and a supplied ASIO driver for Windows ensure simple integration into many other measurement and recording applications. With the UMIK-2, miniDSP once agains stretch the limits of affordable acoustic measurement gear. Let the measurement fun begin!
Features
- USB Audio Reference Measurement Microphone
- 1/2" capsule on 60 UNS thread
- 32bit 44.1~192kHz recording, Custom Windows ASIO drivers and Plug&Play on Linux/Mac OSx
- Low noise floor preamps, 120DR ADC
- Plug&Play compatible with wide range of software, including REW & Dirac Live platforms
Product Downloads
- UMIK-2 Product datasheet
- UMIK-2 User Manual
- Win Driver download link ( Please read manual for installation details)
What's in the box?
- 1 x UMIK-2 microphone
- 1 x shielded USB type C cable (2m)
- 1 x mini Tripod + Mic Clamp
- 1 x wind screen
Which calibration file should I use and where to point the UMIK-2?
- For stereo system (e.g. 2ch dirac live, single speaker measurement), use the 0deg file and point the UMIK-2 at the speakers
- For multichannel system (E.g. 5.1/7.1) or a surround application where multiple speakers are spreadout around the room, use the 90deg file and point the UMIK-2 at the ceiling.
Recommended by our Friends
The miniDSP team built long term relationships with the following leading software applications and is proud to showcase them as our recommeded software solutions:
