MiniDsp UMA-8 USB mic array - V2.0

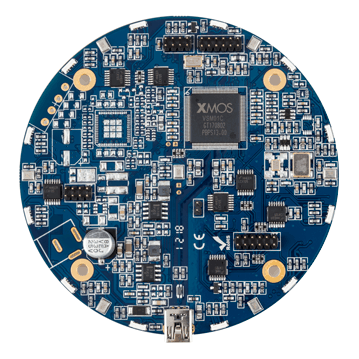

The UMA-8 v2 is a high-performance yet low cost multichannel USB microphone array built around XMOS Vocal fusion series (XVF3000) with improved adaptive beamformer, full duplex AEC and barge-in, noise suppression, AGC. Seven high-performance MEMS microphones are configured in a circular arrangement to provide high-quality voice capture for a wide range of applications. Leveraging the onboard DSP processing, the UMA-8 supports voice algorithms including beamforming, noise reduction, acoustic echo cancellation and de-reverb. The UMA-8 is a fully compliant UAC2 audio interface with driverless support for Mac/Linux and ASIO drivers for Windows.

From DIYers to OEM, this pocket-size platform is engineered for flexibility in firmware, software and hardware. Precompiled firmware versions, expansion connectors providing connectivity for additional PDM microphones, I2S in/out expansion and GPIO... It’s all there to grow with your application!

Features

• Multichannel USB microphone array for voice command
• Onboard DSP for beamforming/ noise reduction / echo cancellation / de-reverd / Direction of Arrival (DOA) / Voice Activaty Dectection (VAD)
• 11 x RGB LED in ring configuration
• High quality MEMS from Knowles SPH1668LM4H
• Flexible Firmware (DSP mode @2ch beamformed, RAW mode @8ch audio from MEMS)
• Step by step app notes for Google SDKAlexa-PiCortana, Siri, IBM Watson and Matlab. More coming up soon...
• External enclosure is available here

Product Downloads

• UMA-8 v2 Product datasheet (XVF3000 Chipset)
• UMA-8 v2 User manual

What's in the box?

• 1 x UMA-8 USB microphone array interface
• Access to the UserDownloads section for drivers/firmware/GUI.
• 1 x 1.5m USB type B cable

UMA-8 + RPi + nanoAVR for voice control of your AV system
