MiniDsp U-DIO8

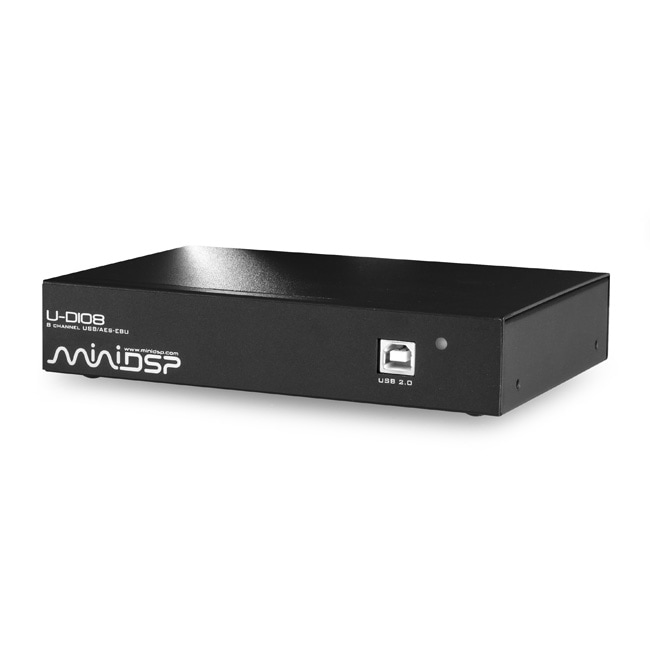

The miniDSP U-DIO8 is a pocket size USB Asynchronous interface with support for up to 8 channels of audio recording and 8 channels of playback. Inputs and outputs are digital and available in 2 versions (AES/EBU or SPDIF). A standard TASCAM pinout DB-25 connector to XLR (AES-EBU version) or DB25 to BNC (SPDIF version) is used for connectivity.
Thanks to 8 channels of high quality sample rate converters on all inputs, the U-DIO8 supports recording of any input rate (44.1~192k). On the output side, the digital output matches the playback sample rate selected in the driver.The U-DIO8 is an ideal solution for high-resolution multi-channel audio, computer-based (HTPC) home theater, live sound, surround-sound mixing and mastering
NOTE: To insure correct impedance matching, note that U-DIO8 comes in two versions. (AES-EBU or SPDIF) with different internal PCB assemblies. Please make sure to select the correct format you'd like to use.
Features
- 5.1/7.1 USB audio interface
- Broadcasting/Studio/Live Sound AES-EBU or SPDIF interface
- Multi-room audio streaming
- Bi-directional USB audio Streaming up to 192kHz
- Transformer isolated inputs&outputs
Product Downloads
- U-DIO8 Product datasheet
- U-DIO8 User manual
What's in the box?
- 1 x U-DIO8 USB audio interface
- 1 x DB25 to XLR cable (AES-EBU version selected) OR dB25 to BNC cable (SPDIF version selected)
- 1 x 1.5m USB type B cable
- 1 x 5V universal power supply with US/UK/EU/AU plugs
- Access to the UserDownloads section for ASIO drivers/Firmware updates once the product purchased.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- USB Streaming Engine
- XMOS 16 core / USB 2.0 full speed - USB Audio class 2.0 compliant
- Capabilities
- 8 channel PCM Input (recording) and Output (playback) over USB
- USB Audio Class
- USB Audio Class 2.0 device, Windows ASIO driver, Mac Osx driverless
- Input/Ouput Configuration
- 8 in / 8 out Transformer isolated on both Inputs and Outputs
- Audio Input Connectivity
- 4 x AES/EBU or SPDIF (8 channels) on DB-25 connector (Tascam pinout). Asynchronous sample rate conversion to convert AES-EBU input rates (32 to 216 kHz) to the recording rate configured in your software.
- Audio Output Connectivity
- 4 x AES/EBU or SPDIF (8 channels) on DB-25 connector (Tascam pinout). Sample rate defined by the playback rate in software (44.1~192k)
- TOSLINK Input
- -
- Accessories
- dB25 to XLR cable, 1.5m long. (AES-EBU version) dB25 to RCA cable, 1.5m long (SPDIF RCA version) dB25 to BNC cable, 1.5m long (SPDIF BNC version)
- Dimensions
- 31 x 161 x 108 mm
- Power
- 5Vdc external supply - 500mA requirement Universal supply provided with plugs for EU/UK/US/AU
- Win/Mac Compatible
- ✔
Manufacturer's Description — MiniDsp
The miniDSP U-DIO8 is a pocket size USB Asynchronous interface with support for up to 8 channels of audio recording and 8 channels of playback. Inputs and outputs are digital and available in 2 versions (AES/EBU or SPDIF). A standard TASCAM pinout DB-25 connector to XLR (AES-EBU version) or DB25 to BNC (SPDIF version) is used for connectivity.
Thanks to 8 channels of high quality sample rate converters on all inputs, the U-DIO8 supports recording of any input rate (44.1~192k). On the output side, the digital output matches the playback sample rate selected in the driver.The U-DIO8 is an ideal solution for high-resolution multi-channel audio, computer-based (HTPC) home theater, live sound, surround-sound mixing and mastering
NOTE: To insure correct impedance matching, note that U-DIO8 comes in two versions. (AES-EBU or SPDIF) with different internal PCB assemblies. Please make sure to select the correct format you'd like to use.
Features
- 5.1/7.1 USB audio interface
- Broadcasting/Studio/Live Sound AES-EBU or SPDIF interface
- Multi-room audio streaming
- Bi-directional USB audio Streaming up to 192kHz
- Transformer isolated inputs&outputs
Product Downloads
- U-DIO8 Product datasheet
- U-DIO8 User manual
What's in the box?
- 1 x U-DIO8 USB audio interface
- 1 x DB25 to XLR cable (AES-EBU version selected) OR dB25 to BNC cable (SPDIF version selected)
- 1 x 1.5m USB type B cable
- 1 x 5V universal power supply with US/UK/EU/AU plugs
- Access to the UserDownloads section for ASIO drivers/Firmware updates once the product purchased.
