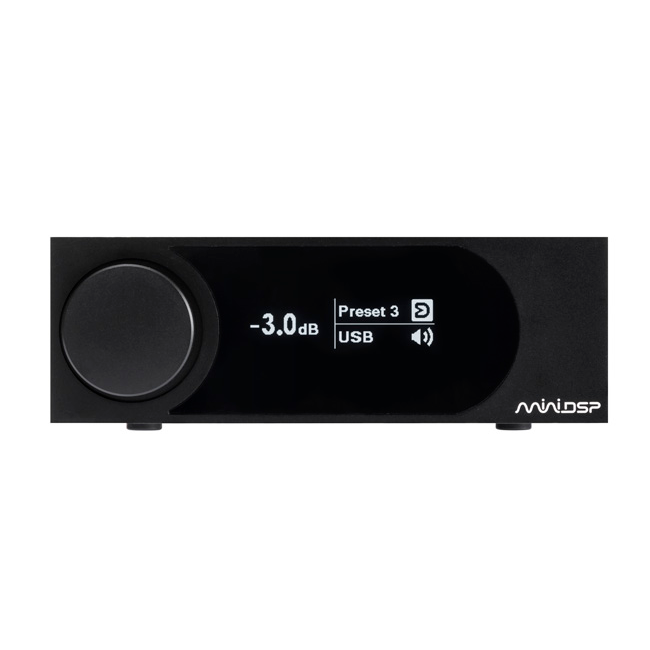

miniDSP is proud to introduce the latest member of the SHD (“Streaming High Definition”) processor family. As with all SHD Series processors, the SHD Power includes Dirac Live®, the world’s premier room correction solution, and a full suite of miniDSP’s powerful but user-friendly audio tuning software.

The SHD Power includes a 120W per channel low-distortion power amplifier for powering main speakers, and two additional analog outputs for connecting a subwoofer or subwoofers. With three digital inputs and high-resolution USB Audio, the SHD Power is the ideal modern integrated amplifier, all packed into an unbelievably compact metal enclosure.

The miniDSP SHD Power is a certified Roon Ready network player. Being Roon Ready means that miniDSP uses Roon streaming technology, for an incredible user interface, simple setup, rock-solid daily reliability, and the highest levels of audio performance, without compromise. The quad-core streaming processor in the SHD Power also runs Volumio, a popular open-source network streamer, providing web-based access to music files from sources as diverse as a USB stick to Internet Radio and Spotify.

Hardware Features

• Processor: 32-bit floating-point 450MHz Analog Devices SHARC DSP
• 32bit Audiophile converters
• Proprietary custom 2 x 120W amplifier (8Ohms/4Ohms), SNR >110dB (at 1kHz A-weighted, 120W in 8Ω),  Embedded PCM1795 DAC chipset + TPA3255 Class D chipset
• Powered by Dirac Live® 3.x Digital Room Correction
• Quad core ARM processor for network audio streaming - Roon Ready and Volumio
• Inputs: Stereo digital (USB Audio/AES-EBU/SPDIF/Optical)
• Outputs: 2 x 120W amplifier output , 2 x analog out (Unbalanced RCA), 4 x digital AES-EBU
• USB audio recording feature (4xCH processed output via USB audio to record digital inputs)
• White/Black OLED front panel controller

Product Downloads / New Device Console

• Product Brief: SHD Power
• SHD Power User manual

What's in the box?

• Dirac Series Audio Processor — SHD Power
• USB Wifi 2.4GHz adaptor
• Dirac Live license 3.x  for miniDSP - Full Range correction
• UMIK-1 calibrated measurement microphone
• IR remote v2
• IEC power plug (UK/EU/US)

NOTE: The UMIK-1/2 are measurement microphones approved by Dirac Research. Knowing the major effect a wrong calibration/measurement would have on the final results of Dirac Live tuning, we strongly recommend that you select a UMIK-1/2 microphone together with your platform for a plug&play experience leading to best results. Any issues related to 3rd party microphones such as ASIO/USB audio driver incompatibility/Latency problems or incorrect calibration process will not be under our support structure by our support team.

Product Reviews

SHD Series is ROON READY

The miniDSP SHD Series processors are certified Roon Ready players. This means that they are certified by Roon Labs to work seamlessly with the Roon software running on your PC, Mac, or Linux-based server! You can also use the Roon Remote for Android or iPhone/iPad for full remote control of your music playback with the miniDSP SHD Series.

Powered by Tidal Connect

Got a Tidal account and want to stream directly your favorite tracks from your PC/Phone/Tablet? Thanks to Tidal Connect support on the SHD Series, we provide a plug&play experience for high bitrate and full volume integration.

Powered by miniDSP's Device Console

Using the Surface Dial to control a miniDSP SHD Series processor

Already got an amplifier?
Check out the SHD and SHD Studio platform.
