MiniDsp PWR-ICE125

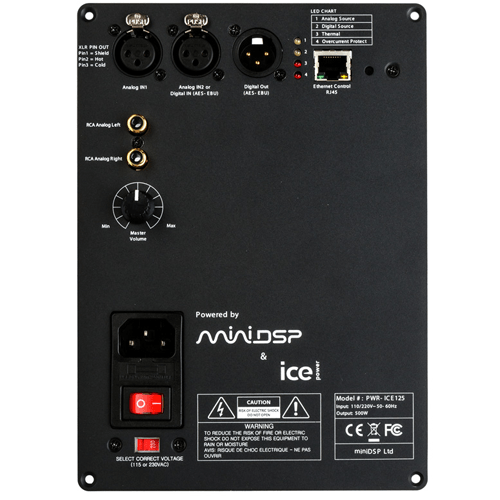

Introducing the PWR-ICE125, a DSP powered plate amplifier module for active 2 way loudspeakers or mono subwoofers. Result of the collaborative effort of two innovative technology companies, the PWR-ICEs series key features are:
- On the processing side is miniDSP's innovative software & firmware allowing a Plug & Play real time control of the onboard DSP over Ethernet/Wifi networks. Using our Zero Conf technology, multiple modules are automatically discovered and controlled from a single User interface in real time. The onboard Digital Signal Processors (DSP) provide real time all the processing a speaker designers will expect to excel at his crossover design task. These include FIR and IIR filters (biquad input), Parametric Equalizers (PEQ), level, crossovers, comp/limiter, delay and more. The Graphical User Interface (GUI) platform is supported on both Mac and Windows environment.
- On the power amplifier side, the ICEpower® modules are complete AC plug-to-speaker amplification audio solutions offering flexible two-channel or bridgeable speaker drive. Their compact size, audiophile audio quality and high power output make them perfect for high-performing audio products. The amplifier is rated for up to 2x125W @ 4Ω or 1 x 450W @ 4Ω.
As for audio connectivity, the PWR-ICE125 is fitted with both analog balanced (XLR) & unbalanced inputs (RCA) to provide maximum compatibility. A digital input (AES-EBU) saves on the A-D conversion for maximum performance while a Digital output (AES-EBU) allows multiple plate amplifiers to be linked to each other.
Features
- DSP Powered plate amplifier
- FIR + IIR filter options / Please consult manual for details.
- Powered by ICEpower® technology for 2x125W @ 4Ω or 1 x 450W @ 4Ω
- Windows & Mac IP control
- Analog & Digital input
- Multi-unit control via Ethernet
Product Downloads
- PWR-ICE125 datasheet
- PWR-ICE125 User manual
- ICEpower® 125ASX2 datasheet
What's in the Box?
- 1 x PWR-ICE125 amplifier module
- 1 x CAT5 patch cable
- 1 x IEC power cord
- 4 x black wood screws for mounting
- 1 x Speaker wire harness to connect amplifier to speaker (60cm long)
- Access to UserDownloads section for free PWR-ICE IIR/FIR plugin.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Digital Signal Processor Engine
- Fixed point processor
- Internal Processing resolution & Sample rate
- 28-56 bit / 96kHz
- Input/Ouput Configuration
- 2 in / 2 out
- Audio Input Connectivity
- 2 x Balanced analog input 2 x Unbalanced analog inputs Stereo Digital: AES-EBU (XLR) Supported ASRC: 44.1k ~ 216kHz
- Audio Output Connectivity
- 1, speaker output: wire type; 2, Stereo Digital: AES-EBU (XLR)
- Input / Output Max Levels
- IN: Unbalanced 2Vrms / Balanced: 2Vrns OUT: SE mode: 2x125W @ 4Ω 1% THD(240V ac);2 BTL mode: 450W @ 4Ω 1% THD(240V ac)
- Input Impendance
- 1 Unbalanced: 10K Ω/ 2, Balanced 47 KΩ
- Output Impedance
- SE-mode: 3Ω; BTL mode 6Ω
- Calibration Software
- PWR-ICE software
- Filtering Technology
- FIR + IIR
- DSP Presets
- Up to 4 presets
- Dimensions
- 216 x 153 x 75 mm
- Power
- AC 110/240V selectable
- Win/Mac Compatible
- ✔
- UMIK-1 Included
- ✘
- Bass Management
- ✘
- Room EQ Wizard Support
- ✔
