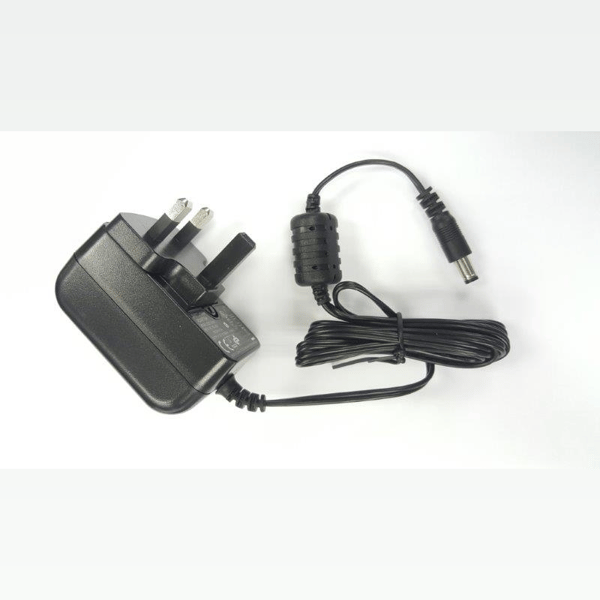

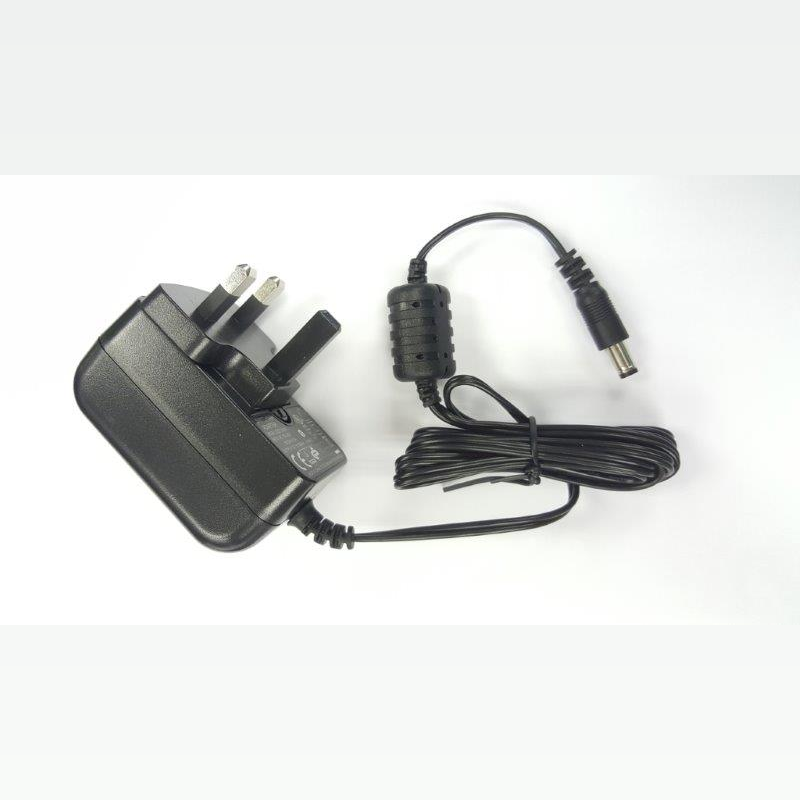

MiniDsp PSU 12V 1600mA
This replacement power supply is used for the SHD Studio/ miniDSP Flex/DDRC-22D and 2x4HD series. It comes with interchangeable plugs for US, UK, EU and AU plugs.
Specifications
Input:100-240V,50/60 Hz 0.5A
Output Voltage:12V,5% tolerance.
Output Current:1.6A max..
Output Power:20W max.
Output Over Current Protection:Over load less than 120% of full load.
Voltage Ripple & Noise:100mV
Efficiency:70%
Insulation Resistance:Input to output: 50M OHM at 500 VDC.
Dielectric Strength (Hi-Pot):Input to Output 3kVAC, 60 sec. Cut off current 10mA Max
Protection Function:Over Voltage Protection;Over Current Protection;Short Circuit Protection;Thermal Shutdown Capability.
MTBF:50,000 hours
Ambient Temperature: 040
Relative Humidity: 10% 90%
Safety Approval:UL,CE,GS,SAA,PSE,KC,FCC,S-TICK.
Standard:EN60335/61558/EN60950
Dimension:69*41*28MM
