MiniDsp N-PW2

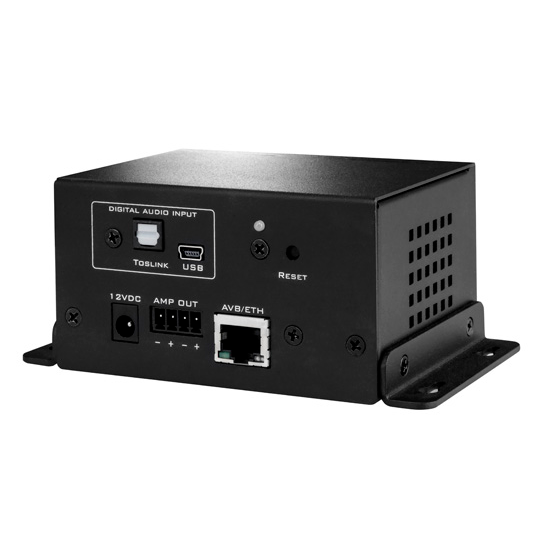

The NPW-2 is a PoE+ amplifier combining network audio streaming, class D amplification and Digital Signal Processor (DSP) into a pocket size enclosure. A single CAT5/6 network cable provides power, low latency audio and control for a true Plug&Play experience. The system consists of three key element:
- The Audio Video Bridging (AVB) technology powered by a 500MHz XMOS processor which provides low latency, uncompressed and tightly synchronized streams to each speaker over standard networks. Thanks to its compliance with IEEE 1722.1, it is plug&play with 3rd party AVB devices such as Apple OSx, Biamp Systems, Audioscience, Echo Audio…
- An on-board 400 MHz Analog Devices SHARC processor also enables substantial signal processing for true high-resolution audio capability and equalization, crossover.
- Finally, a novel multi-level switching audio amplifier technology provides 2x15W for powering up to 2 speakers.
Features
- Stereo Class D Amplifier (2x15Wrms)
- PoE+ powered or External Power supply
- Onboard Sharc DSP processor
Product Downloads
- NPW-2 Product datasheet
- AVB End Points User Manual
What's in the box?
- 1 x NPW-2 AVB Amplifier interface
- 1 x 1.5m Ethernet CAT5 cable
OPTION: External 12V power supply
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
No reviews found yet
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Digital Signal Processor
- 32-bit Floating point Analog Devices SHARC ADSP21489 / 400 MHz
- USB / AVB Processor
- XMOS XCore200 for digital audio streaming Asynchronous USB audio UAC2.0, Driverless for Mac OS X, ASIO driver for Windows platforms Audio Video Bridging (AVB) streaming - Gigabit Ethernet
- Digital audio input
- TOSLINK optical input. The input signal is processed by a high quality onboard Asynchronous Sample Rate Converter for compatibility with most common sample rates (20–216kHz)
- Digital Audio amplifier
- Dual channel amplifier for Master + Slave configuration. 2x15W RMS @ 8Ohm under +12V configuration 2x12W RMS @ 8Ohm under PoE+ mode (power carried over CAT5/6)
- DSP capabilities
- Crossover, PEQ, Matrix, Delay, Comp/lim. Please check user manual for more details.
- Filter storage
- Four on-board presets, selectable by IP control
- USB port
- USB port type Mini-B for audio streaming (USB audio firmware) Real time control and firmware upgrade
- Power supply
- 12 VDC single supply (optional if PoE powered) PoE/PoE+ powered
- Dimensions (H x W x D) mm
- 55 x 100 x 77mm / 0.4kg
- Enclosure / Finish
- Metal enclosure, black textured paint
Manufacturer's Description — MiniDsp
The NPW-2 is a PoE+ amplifier combining network audio streaming, class D amplification and Digital Signal Processor (DSP) into a pocket size enclosure. A single CAT5/6 network cable provides power, low latency audio and control for a true Plug&Play experience. The system consists of three key element:
- The Audio Video Bridging (AVB) technology powered by a 500MHz XMOS processor which provides low latency, uncompressed and tightly synchronized streams to each speaker over standard networks. Thanks to its compliance with IEEE 1722.1, it is plug&play with 3rd party AVB devices such as Apple OSx, Biamp Systems, Audioscience, Echo Audio…
- An on-board 400 MHz Analog Devices SHARC processor also enables substantial signal processing for true high-resolution audio capability and equalization, crossover.
- Finally, a novel multi-level switching audio amplifier technology provides 2x15W for powering up to 2 speakers.
Features
- Stereo Class D Amplifier (2x15Wrms)
- PoE+ powered or External Power supply
- Onboard Sharc DSP processor
Product Downloads
- NPW-2 Product datasheet
- AVB End Points User Manual
What's in the box?
- 1 x NPW-2 AVB Amplifier interface
- 1 x 1.5m Ethernet CAT5 cable
OPTION: External 12V power supply
