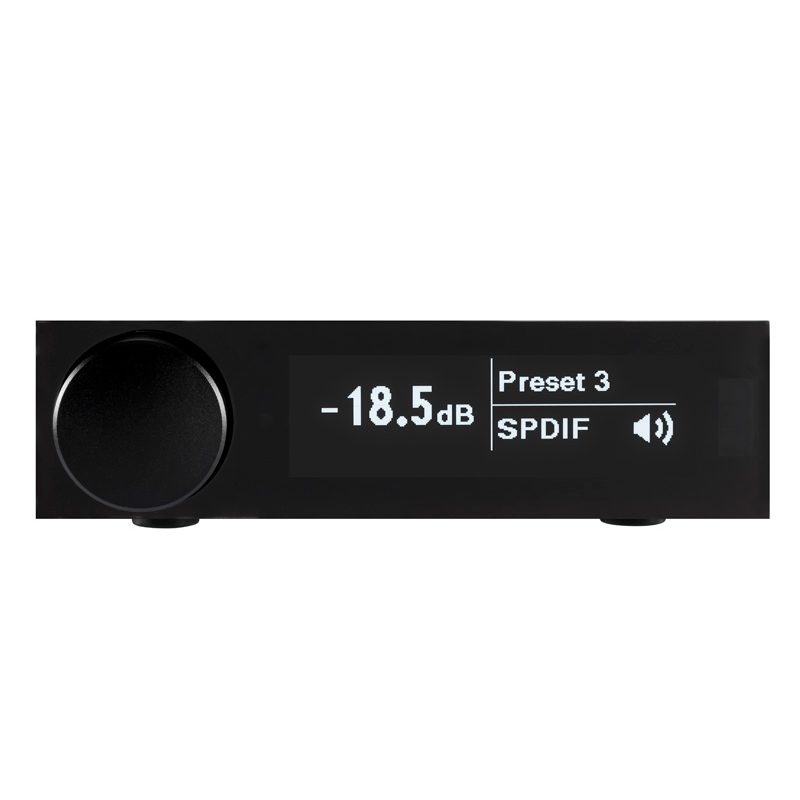

MiniDsp miniDSP Flex HT
The Flex HT is miniDSP’s answer to our customers looking for a pocket sized multichannel processor with HDMI ARC/eARC capabilities . Our team was able to cram a full eight channels of DSP power and a wide range of I/O into the unbelievably compact enclosure.
Eight-channel audio input is via eARC linear PCM over HDMI, or USB Audio. Additional stereo input is supported over SPDIF and TOSLINK optical. Internally, we’ve provided a full suite of miniDSP flexible’s routing and audio processing features: bass management, parametric EQ, crossovers, advanced biquad programming and delay/gain adjustments. In addition, the miniDSP Flex HT is software-upgradable with full-frequency Dirac Live®, the world’s premiere room correction system.
The eight-channel analog RCA outputs feature class-leading low noise and distortion figures. Last but not least, the Flex HT is miniDSP's first product to include WiSA (“Wireless Speaker and Audio Association”) capability as an optional feature(future). WiSA is designed specifically for low-latency multichannel audio – a perfect match for the Flex HT. The WiSA transmitter will allow lossless transmit of all eight output channels to WiSA-compatible speakers and subwoofers. Note that WISA feature will be a hardware option on future shipments (ETA Q1 2024) and isn't included at this point of time.
The miniDSP Flex HT is the perfect solution for a modern compact processor for home theater and multichannel sound. You just need to let your creativity do the rest!
REMINDER: Please note that the Flex HT does not support bitstream (e.g. Dolby/DTS) decoding. The audio source must be able to output linear PCM (LPCM) for multichannel support over HDMI.
Hardware Features
Processor: 32-bit floating-point 400MHz Analog Devices SHARC DSP
Multi-Core USB Audio processor (XMOS)
HDMI EARC/ARC interface for multichannel audio in PCM. Note that Flex HT doesn't support bistream format (Dolby/DTS encoded).
Optional WISA (Future option / ETA Q1 2024): Multichannel (8ch) low latency, synchronized, Wireless audio. Compatible with compliant Wisa speakers.
Optional upgrade to Dirac Live® 3.x Digital Room Correction, Multichannel (8ch) Full Range Room Correction (20~20kHz)
Audiophile performance with very low noise floor and distortion (SNR @128dB(A), THD+N @ -111dB (0.0003%)
Inputs: Stereo digital (SPDIF/Optical), Multichannel USB Audio streaming (up to 7.1)
Outputs: 8 channels audio duplicated to unbalanced (RCA) and WISA Wireless audio.
White/Black OLED front panel controller with IR control
- Control and configuration by miniDSP Device Console (DC)
Product Downloads
- Product Brief - Flex HT
- Flex HT - User Manual
- Flex HT FAQ - Most Frequently Asked Questions
What's in the box?
- Digital Audio Processor - Flex HT
- IR remote v2
- 12V univeral power supply (UK/EU/US/AU plugs)
- USB cable
Optional Items
- UMIK-1 or UMIK-2 Measurement microphone
- Dirac Live v3.x Upgrade for Multichannel (8ch) Full range correction (20~20kHz) can be selected in the shopping cart as an option OR purchased directly from Device Console as per manual
- Microphone tripod
NOTE: The UMIK-1/2 are measurement microphones approved by Dirac Research. Knowing the major effect a wrong calibration/measurement would have on the final results of Dirac Live tuning, we strongly recommend that you select a UMIK-1/2 microphone together with your platform for a plug&play experience leading to best results. Any issues related to 3rd party microphones such as ASIO/USB audio driver incompatibility/Latency problems or incorrect calibration process will not be under our support structure by our support team.
Audio Precision APX555 measurements
miniDSP Device Console (DC)
Application Notes
The Perfect Apple TV companion
The Apple TV 4k is the perfect streaming partner for the miniDSP Flex HT and Flex HTx. Combined with an eARC-enabled TV, a modern compact A/V system with Dirac Live®, the world's premiere room correction system, has never been easier to set up!
More Details
HDFury + miniDSP
HD Fury has a wide range of adaptors for HDMI interfacing that fits perfectly along with miniDSP's Flex HT/HTx series. Our team therefore decided to give you the option to package your Flex HT together with Arcana or Vrroom devices.
Multiway + Dirac Live
miniDSP's multichannel audio processors with Dirac Live room correction can implement advanced multiway active speakers. Any number of "ways" and speakers can be implemented up to the number of output channels. Check out our app note on how to get started!
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Digital Signal Processing Engine
- Analog Devices Floating point SHARC DSP: ADSP21489 @ 400MHZ
- Processing resolution / Sample rate
- 32 bit/48 kHz
- USB Audio support
- UAC2 Audio - ASIO driver provided (Windows) - Plug&Play (Mac/Linux) Multichannel USB Audio interface (8ch) for up to 7.1 configurations / 32bit / 44.1~96kHz
- Input/Output DSP structure
- 8h IN(USB/HDMI) or 2ch IN(TOSLINK/SPDIF) => DSP => 8 ch OUT (Analog & WISA outputs)
- Digital Stereo Audio Input Connectivity
- 1 x SPDIF (stereo) on RCA connector, 1 x OPTICAL (stereo) on Toslink connector Supported sample rates: 20 – 216 kHz / Stereo source will be automatically assigned to Input 1&2
- HDMI connectivity
- ARC/EARC compliant for up to 8ch of LPCM audio streaming Supported sample rates: 20 – 96 kHz WARNING: No onboard Dolby/DTS decoding. Use your source (E.g. TV) to output in PCM mode.
- WISA (Wireless Audio)
- (Future Option) 8 channels outputs via low latency, uncompressed & tightly synchronized audio via WISA protocol 24bit/48kHz, 5.2ms Fixed latency, +/-2µS synchronization, 5GHz spectrum
- Digital Audio Output Connectivity
- Not Applicable
- Analog Audio Output Connectivity
- 8 x Unbalanced RCA
- Analog Audio Output Impedance
- 200 Ω
- Analog Output Max Level
- 2 V RMS
- Frequency Response
- 20 Hz – 20 kHz ± 0.05 dB
- SNR (Digital to Analog)
- 125 dB(A) with DRE enabled
- THD+N (Digital to Analog)
- -111 dB (0.0003 %)
- Crosstalk (Digital to Analog)
- -120 dB
- Filtering Technology
- miniDSP DSP toolbox (routing, bass management, parametric EQ, crossover, gain/delay). Optional software upgrade to multichannel Dirac Live® 3.x Full Range correction (20Hz ~ 20 kHz)
- DSP Presets
- Up to 4 presets
- Dimensions
- 150x180x41 mm
- Accessories
- IR Remote
- Power Supply
- Included external switching PSU 12V/1.6A (US/UK/EU/AU plugs)
- Trigger out
- 12V trigger out controls external ON/OFF powering of amplifiers
- CEC control
- HDMI CEC command for Mute/Volume/Standby
- Power Consumption
- 4.8 W (idle, Wisa OFF), 6.5W (idle, Wisa ON) 2.9 W (standby)
