MiniDsp EARS

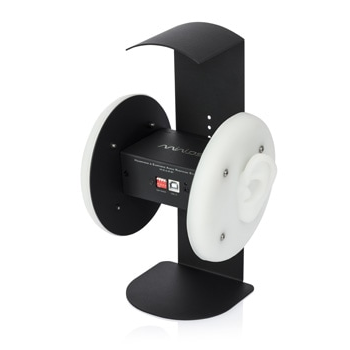

Introducing "EARS", the earphone audio response system. miniDSP EARS brings headphone measurement capability to "the masses" - it's just an extremely affordable measurement rig for headphones and IEMs that we've built using the same technology as our popular UMIK-1 calibrated measurement microphone. Alternatively one could use EARS as a binaural microphone with USB audio streaming.
NOTE: It's written on our user manual (but we do know that not everybody read them..;-) Please note that EARS is not an industry-standard measurement head. Even expensive (i.e. tens of thousands of dollars) test jigs can produce measurements that are different to each other depending on the type of ear simulator. Our goal with the EARS is to produce something that is affordable and fun to use.
Features
- Affordable Headphone test jig
- Plug&play USB audio streaming for Win/Mac/Linux
- Step by step application notes on how to Equalize your headphone using EARS
Product Downloads
- EARS Product datasheet
- EARS User Manual
What's in the box?
- 1 x EARS test jig
- 1 x shielded USB cable (1.5m)
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Capsule Type & Polar pattern
- 6mm electret, Omni-Directional
- Frequency response
- 20 Hz - 20kHz
- USB Audio Class
- USB Audio class 1.0 Driverless interface for Windows, Mac & Linux
- Connector
- USB Connector
- Calibration File
- Unique microphone calibration .txt file referenced to the Serial Number Includes on frequency / Amplitude / Sensitivity drift
- Resolution & Sample rate
- 24bit ADC @ 48kHz
- Max SPL for 1 % TDH @ 1kHz
- 133 dB SPL @OdB gain setting
- Weight
- 1.3kG
- Power
- USB Powered (5V) - Blue LED indicates unit under power
- Win/Mac/Linux Compatible
- ✔
Manufacturer's Description — MiniDsp
Introducing "EARS", the earphone audio response system. miniDSP EARS brings headphone measurement capability to "the masses" - it's just an extremely affordable measurement rig for headphones and IEMs that we've built using the same technology as our popular UMIK-1 calibrated measurement microphone. Alternatively one could use EARS as a binaural microphone with USB audio streaming.
NOTE: It's written on our user manual (but we do know that not everybody read them..;-) Please note that EARS is not an industry-standard measurement head. Even expensive (i.e. tens of thousands of dollars) test jigs can produce measurements that are different to each other depending on the type of ear simulator. Our goal with the EARS is to produce something that is affordable and fun to use.
Features
- Affordable Headphone test jig
- Plug&play USB audio streaming for Win/Mac/Linux
- Step by step application notes on how to Equalize your headphone using EARS
Product Downloads
- EARS Product datasheet
- EARS User Manual
What's in the box?
- 1 x EARS test jig
- 1 x shielded USB cable (1.5m)
