MiniDsp DIGI-FP

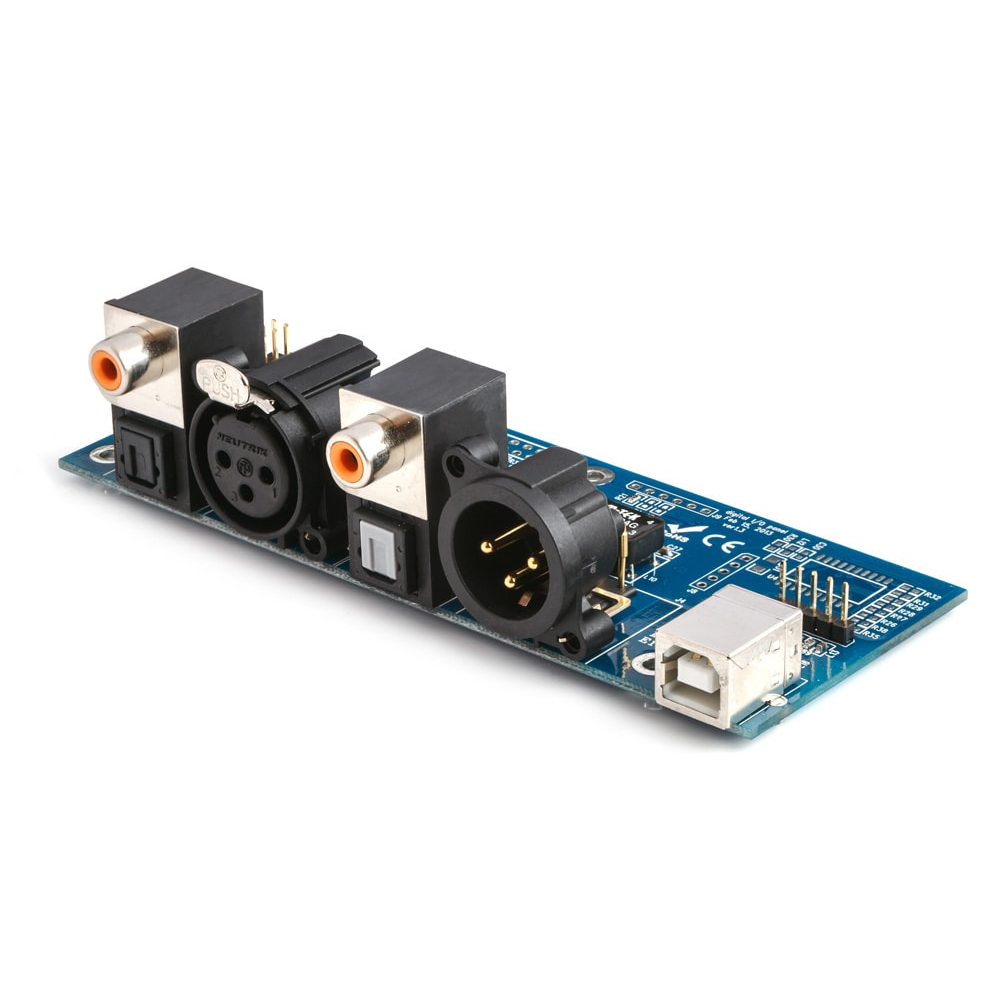

The DIGI-FP is an SPDIF/Toslink/AES-EBU to I2S interface providing digital audio input & output connectivity for miniDSP 2x8/8x8/miniSHARC kits. Based on the awardwinning TI/Burr & Brown IC (SRC4382), the board is compatible with miniDSP 2x8/8x8 and miniSHARC platform. Source selection and correct sample rate are automatically configured from the miniDSP 2x8/8x8 platforms. A USB connector is provided for easy front panel configuration and connectivity to the main board. This USB connection is for control only (no audio streaming).

Features

• Easy integration for 2x8/8x8 DSP
• High quality Neutrik XLR
• Sample Rate Conversion

Product downloads

• DIGI-FP datasheet
• DIGI-FP Connectivity manual

What's in the box?

• 1 x Assembled/Tested DIGI-FP interface
• 2 x Toslink cable of 1m (Optical cable)
• Link cables for interfacing to miniDSP 2x8/8x8/DIGI-FP

Note: If you are ordering this product at a later stage (i.e. separate order) to complete an existing miniDSP 2x8/8x8/miniSHARC kit, please provide some additional information in the comment section.

Optional Accessories

• Rear panel for DDRC/OpenDRC Series
