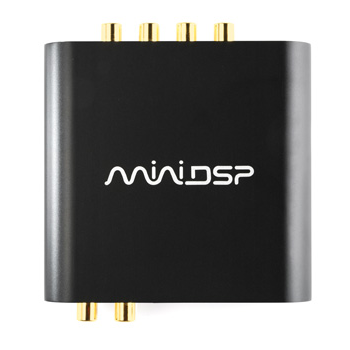

MiniDsp DDRC-24
miniDSP introduces the DDRC-24, the world’s smallest Dirac Live® hardware processor. Dirac Live®, the world’s premier room correction solution, is now available in an unbelievably compact hardware unit. Powered by a 400 MHz Analog Devices SHARC processor, the DDRC-24 retains the 4-channel output of its sister unit, the miniDSP 2x4 Hd, in order to allow applications like subwoofer integration or even 2-way loudspeakers together with Dirac Live® room correction in a single tiny hardware platform. The matrix mixer and crossover functionality is accessed and programmed with miniDSP’s easy-to-use interface software. An all in one unit with USB DAC + Dirac Live Room Correction + Speaker processing.
I/O capabilities get an upgrade too, with the addition of USB audio streaming up to 192 kHz and a TOSLINK digital input. The miniDSP DDRC-24 will find application in full-sized hifi and home theater systems, on desktops, in cars, in recording studios anywhere a compact, powerful room correction processor is needed.
Features
- ADSP21489 400MHz Sharc DSP floating point engine
- XMOS Xcore200 for USB control and bidirectional audio streaming
- 24 bit ADC/DAC resolution
- Dirac Live 3.x for miniDSP with 4 presets, fully configurable target curve
- Unbalanced inputs switchable with a jumper between 4Vrms and 2Vrms
- Toslink digital input
- Unbalanced outputs: Max 2Vrms
- USB Audio Class 2 Audio streaming with ASIO drivers, driverless under MAC OSx
- 4 preset configuration, recallable via IR, Software
- Wifi/Alexa voice control via WI-DG accessory
Product Downloads - Device Console
- DDRC-24 Datasheet
- DDRC-24 User Manual
What's in the box?
- 1 x DDRC-24 including Dirac Live license for miniDSP and DDRC-24 plugin
- 1 x 12V power supply with UK/EU/US/AU plugs
- 1 x shielded USB cable
- 1 x IR remote
- 1 x Dirac live license 3.x for miniDSP, full range correction
- 1 x Device Console for DSP control automatically added to your UserDownloads section on purchase
Optional Accessories
- WI-DG for Wifi/Alexa voice control of your unit. Note only the plugin is controllable via Wifi. Dirac Live still requires a USB connection unfortunately.
- Audio RCA cables
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Digital Signal Processor Engine
- Analog Devices Floating point DSP SHARC ADSP21489
- Internal Processing resolution & Sample rate
- 32 bit / 48kHz
- Input/Ouput Configuration
- 2 in / 4 out
- Audio Input Connectivity
- Unbalanced analog input, RCA terminated Stereo Digital Inputs: TOSLINK (optical) Stereo USB audio input: USB Audio Supported ASCR: 20~216kHz
- Audio Output Connectivity
- Unbalanced output, RCA terminated
- Input / Output Max Levels
- IN: 2Vrms / 4Vrms (jumper-selectable) OUT: 2Vrms
- Input Impendance
- 10 kΩ
- Output Impedance
- 560 Ω
- Calibration Software
- DDRC-24 plugin
- Filtering Technology
- Dirac Live 3.x
- DSP Presets
- Up to 4 presets
- Dimensions
- 27 x 119 x 107 mm
- Power
- 12 VDC single supply 2.1 mm round plug / 2.5W
