Meridian Meridian Ellipse
Meridian’s Ellipse delivers refined detail, convincing scale, and a surprisingly room-filling soundstage from a compact cabinet. The Absolute Sound praised its composure and imaging, while Sound Advice highlighted how easily it creates a three-dimensional, big-system presentation. Its rich streaming support and polished build make it a seriously ambitious one-box speaker.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Nicely Roasted
Sound Quality
89/100
Build Quality
90/100
Value for Money
80/100
Pros
Creates a large, three-dimensional soundstage that sounds bigger than its size.
Delivers refined, detailed, and cohesive sound with strong midrange clarity.
Stays controlled and capable at higher volumes, with enough punch for large rooms.
Offers wide-ranging streaming support and flexible app-based adjustment options.
Cons
Bass is respectable, but not as weighty or forceful as the best rivals.
TV integration is limited by the lack of HDMI ARC and the need to use the app for some functions.
The price is high compared with competing all-in-one speakers.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
What Reviewers Are Saying
SOUND QUALITY PERFORMANCE 89/100
Reviewers consistently describe the Ellipse as unusually accomplished for a compact all-in-one speaker. It sounds refined, detailed, and cohesive, with strong room-filling ability and a convincing sense of scale when positioned well.
Bass
83/100
The reviews suggest bass that is tidy and extended enough for the format, with Meridian's racetrack driver helping it reach down respectably. At the same time, one reviewer calls the bass limited, so it is not a speaker for big, weighty low-end expectations.
Mid
92/100
The midrange is a clear strength, with vocals and instruments described as beautifully resolved, tonally coherent, and highly present. Reviewers repeatedly praise the way it handles piano, voice, and dense mixes without losing composure or natural flow.
Treble
88/100
High frequencies come across as refined and detailed rather than edgy, with good clarity on acoustic guitar, piano, and complex material. The reviews do not suggest obvious brightness or harshness, and the overall presentation is described as smooth and listenable.
Soundstage Imaging
94/100
This is one of the Ellipse's standout talents. Reviewers praise its ability to sound bigger than its size, throw credible stereo images even off to the side, and create a three-dimensional presentation that can seem detached from the box itself.
Dynamics
90/100
Despite modest power on paper, the Ellipse is said to play loudly, keep its composure, and handle orchestral weight and rock passages with ease. Reviewers note that it stays controlled at levels most listeners will ever use, which is impressive for a speaker this compact.
Assessments of Build Quality, Usability, and Overall Propositions.
Build Quality
90/100
Reviewers praise the Ellipse as fastidiously made, with a very nicely implemented top control panel and a sense that real care has gone into the product. The styling is described as subtle rather than flashy, but the construction itself appears well thought through.
Value for Money
80/100
The asking price is clearly a concern in both reviews, with comments that it is expensive and faces strong alternatives at lower prices. That said, both reviewers also acknowledge that the sound goes a long way toward justifying the cost, so the value case is mixed rather than poor.
Reviews & Sources
Professional reviews and sources for this product's Watt'n Potatoes analysis.
Online Reviews & Mentions

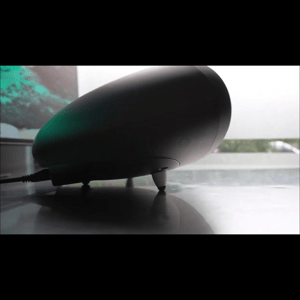

YouTube Reviews
Forum Mentions
No forum mentions found yet
Specifications
- Streaming
- Bluetooth wireless technology, Wi-Fi streaming, Ethernet connectivity. AirPlay, Google Cast, native streaming from Spotify Connect and TIDAL Connect. Roon Ready, UPnP renderer.
- Audio inputs
- Internal streaming source 1 x USB-C supporting sampling rates up to 192kHz @ 24-bit 1 x mini-TOSLINK optical supporting sampling rates up to 96kHz @ 24 bit Stereo analogue with 88kHz/24bit A/D conversion (Optical and analogue share dual-purpose 3.5mm minijack socket)
- Control Options
- Illuminated touch controls located on top of unit Meridian Control app via Wi-Fi or Ethernet connection IR receiver eye (MSR2 remote control available separately) Automation interface via Wi-Fi or Ethernet connection
- Performance
- SPL: 100dB@1m (pink noise source) Frequency response in room within 3dB: 40Hz – 20kHz (volume setting 65)
- Amplification
- 2 x 25W for full-range drivers 1 x 30W for subwoofer driver
- Drive units
- 2 x 90mm polypropylene wide-range drivers 1 x 150mm x 100mm polypropylene long-throw “racetrack” subwoofer driver Crossover frequency = 180Hz
- Wi-fi operation
- Dual band - 2.4GHz and 5GHz compatible
- Dimensions / Weight
- WIDTH: 412mm [16.2in] DEPTH: 223mm [8.8in] HEIGHT: 171mm [6.7in] WEIGHT: 3.9kg [8.6lbs]
- Power
- 100V – 240V AC, Max 70W
Manufacturer's Description — Meridian
Discover Meridian’s first high-performance all-in-one streaming speaker. Elegant, Simple, Powerful.
Streaming Speakers

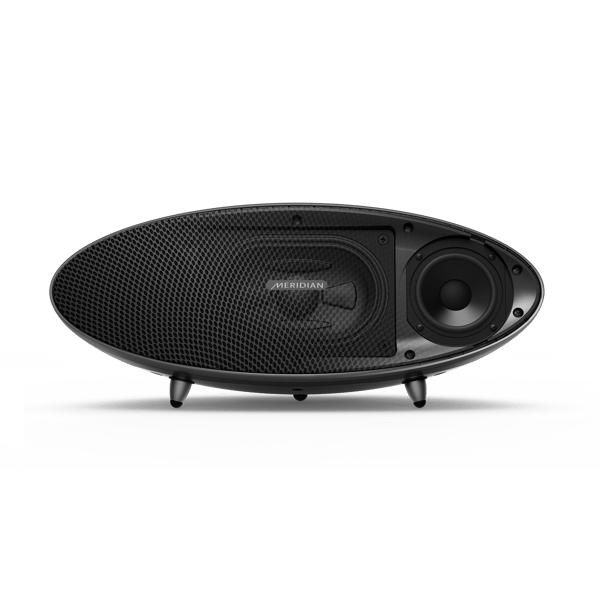

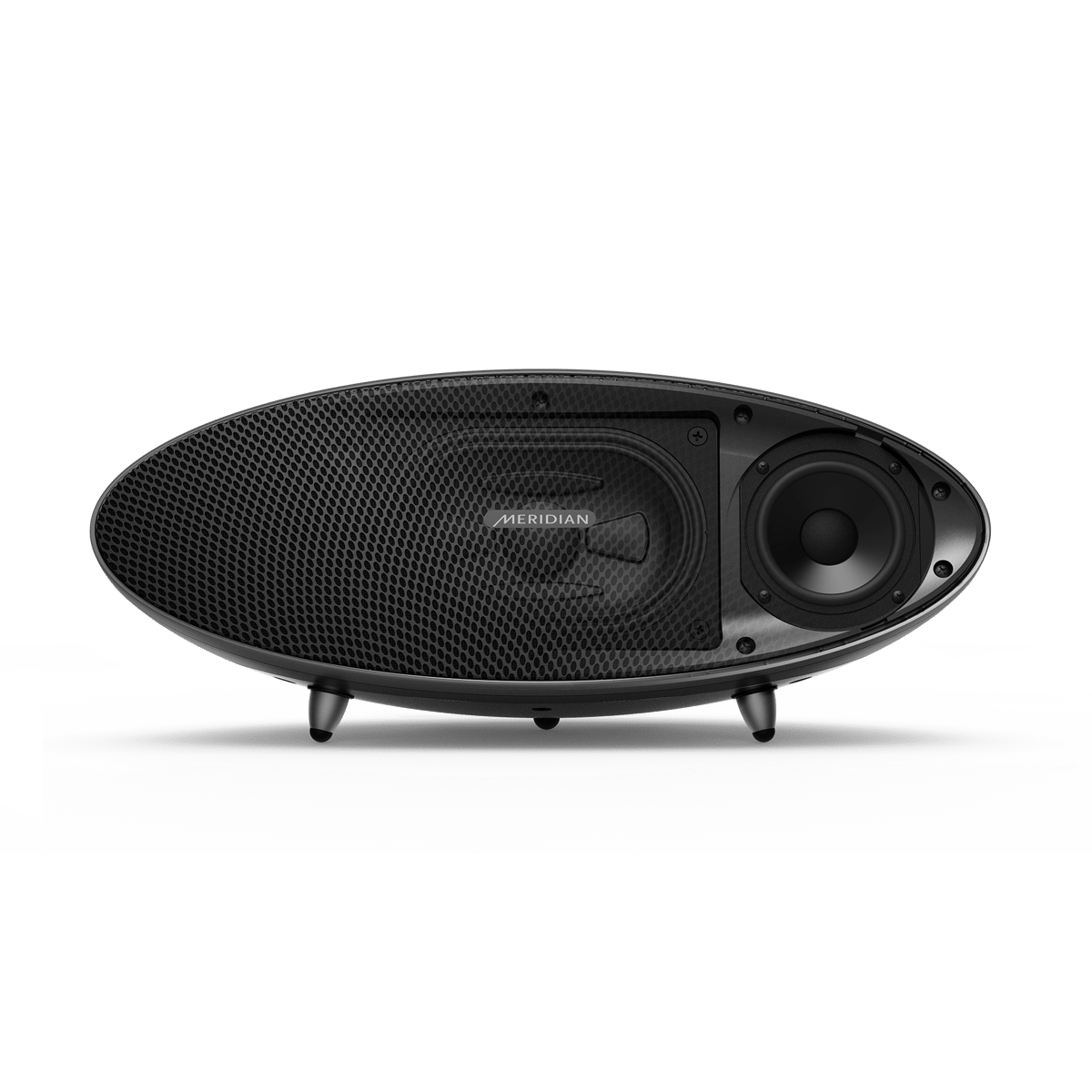

Meridian Ellipse
Beautiful to look at, Ellipse is designed to subtly elevate any space. Its elliptical design signature echoes the design of other Meridian products. In combination with its harmonious curves, Ellipse boasts a luxuriously smooth, pebble-like surface in a deep, non-reflective black. Its soft and subtle finish is inviting to the touch, adding an element of style and sophistication to any modern living space. A perfect synthesis of function and form, within a timeless aesthetic.
Works with
Apple AirPlay
Use of the Works with Apple AirPlay badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards.
Google Cast
Google Cast is a trademark of Google LLC.
Bluetooth
Allows audio to be played directly from a phone, tablet or computer - whether or not the 210 is connected to a network.
Spotify Connect
Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how.
Tidal Connect
High Fidelity Music Streaming.
Roon Ready
Being Roon Ready means that Ellipse uses Roon streaming technology, for an incredible user interface, simple setup, rock-solid daily reliability, and the highest levels of audio performance, without compromise.
UPnP
UPnP™ is a trademark of the UPnP™ Forum.
Ellipse offers superb flexibility with Bluetooth wireless technology and Wi-Fi streaming, while an Ethernet socket provides the option of a wired network connection.
Supports AirPlay and works with Google Cast, as well as native streaming from Spotify Connect and TIDAL Connect. It is a Roon Ready device and can be used as a UPnP renderer.
Twelve of Meridian’s unique DSP technologies make Ellipse capable of handling rooms of any size without compromise on sound quality.
Bass & Space
Meridian Bass & Space is a stereo enhancing technology designed to optimise and increase the sense of soundstage width.
E3 Bass (Expand, Extend, Enhance)
Meridian E3 bass uses specifically designed filters to expand, extend and enhance the low-frequency response of the loudspeaker.
Q-Sync
Meridian Q-Sync deploys Meridian's multiple “First In, First Out” buffering system which minimises jitter, ensuring perfect timing and improved clarity.
Image Focus
Image focus corrects for off-centre listening, ensuring that the original soundstage is maintained
Free-Q
Meridian Free-Q is used to compensate for acoustic problems associated with specific loudspeaker placement conditions.
True Time
True Time is Meridian's proprietary apodising filter that avoids pre-ringing and cleans up the effects of early filters, converting pre-echo to post-echo.
Perfect Balance
Meridian Perfect Balance technology ensures that as the volume of the system varies there is no perceived loss of low and high frequencies, and spectral balance is maintained at all volume levels.
Bespoke Signal Mapping
Meridian Bespoke Signal Mapping delivers an optimal response from multi-way loudspeakers, ensuring that all drive units complement one another, providing a consistent response at all frequencies.
Pro-Active Bass
Meridian Pro-active Bass protects the bass drivers from over-excursion, ensuring maximum bass output without damaging the drive units.
Pro-Active Thermal
Meridian Pro-active Thermal monitors the audio being sent to the mid-range drivers and tweeters and limits the overall volume of the loudspeaker if there is a risk of the drive units getting too hot.
Digital Precision
Meridian Digital Precision maximises the signal-to-noise ratio of the digital audio, ensuring the finest details of every song are retained.
Image Elevation
Image elevation psychoacoustically raises the sound image to the centre of a screen – where the listener would expect to hear it from.
State-Of-The-Art-Craftmanship
Each component has been meticulously specified for its acoustic benefits, aesthetic contribution, or both. Meridian Ellipse is rigorously engineered to deliver that Meridian signature sound performance in any room as well as being beautiful to look at and easy to use.
Cutting-Edge Performance
Ellipse takes the technological, engineering and manufacturing innovations in Meridian DSP8000 XE and DSP9 and distills them in a compact but extremely powerful package. An incredibly inert, perfectly sealed cabinet encloses powerful drive units and sophisticated signal-enhancing technologies. Unique control options, including Image Elevation technology and the innovative Bass and Space feature, allow the listener to tailor the sound to listening preferences, background noise levels, room size, and speaker placement.
Effortless Simplicity
Control at your fingertips. Playback functions fall easily to hand by virtue of the illuminated touch controls built into the top of the unit. Ellipse is easy to use and yet it supports a rich feature set which offers flexible set-up options and powerful user-settings.
Engineered, designed and manufactured to deliver goosebumps, Ellipse epitomises our unique and unrivalled approach to audio playback.
The Ellipse redefines what can be achieved from a product of its size.
