Meridian DSP750
The class-leading DSP750 is Meridian’s highest performing architectural loudspeaker.
Loudspeakers
DSP750

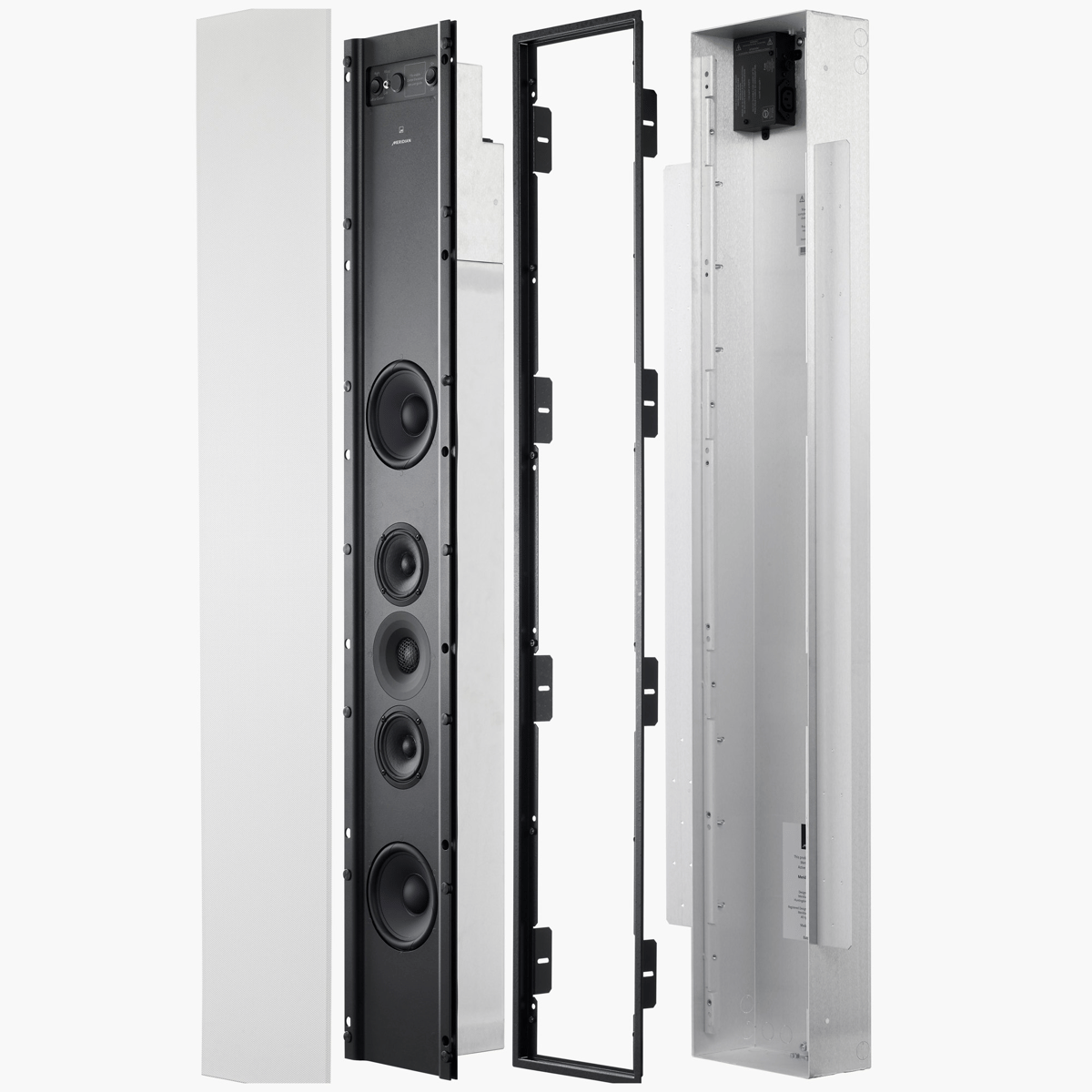

With a host of exclusive Meridian technologies on-board, the DSP750 resets the standard of architectural loudspeaker performance. Ultra-shallow (100mm deep) design provides full DSP loudspeaker performance, while the rough-in box and frame system allows for easy installation and precise positioning. Grille can be painted to match décor.
Bespoke Signal Mapping
Meridian Bespoke Signal Mapping utilises digital signal processing to apply tailored crossover filters that are designed specifically for each configuration of drive units within a loudspeaker.
E3 Bass
Meridian E3 Bass uses specifically designed filters to expand, extend and enhance the low-frequency response of the loudspeaker.
Image Elevation
Image Elevation psychoacoustically raises the sound image to the centre of a screen – where the listener would expect to hear it from.
FFA
FFA (Full Frequency Alignment) is a combination of digital filters and delays to correct the group-delay of a loudspeakers. It ensures that all frequencies reach the listener’s ear at the same time.
Pro-Active Bass
Meridian Pro-Active Bass protects the bass drivers from over-excursion, ensuring maximum bass output without damaging the drive units.
Pro-Active Thermal
Meridian Pro-Active Thermal monitors the audio being sent to the mid-range drivers and tweeters and limits the overall volume of the loudspeaker if there is a risk of the drive units getting too hot.
True Time
True Time is Meridian's proprietary Apodising Filter that avoids pre-ringing and cleans up the effects of early filters, converting pre-echo to post-echo.
True Link
Meridian True Link is an encryption method for transferring high-definition digital audio over SPDIF connections. It allows secure movement of digital audio whilst ensuring that the SPDIF clock signal can be transmitted with minimum degradation.
HPA
Meridian's HPA (High Powered Array) processing technology minimises destructive interference between the multiple loudspeakers when used in an array configuration.
Architectural Reference Range
With its extensive Research and Development programme Meridian has pioneered the development of a host of innovative audio technologies many of which feature in today’s Meridian products.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- AUDIO INPUTS
- Meridian SpeakerLink connector (RJ45) accepting 32kHz to 96kHz sampling rates at up to 24-bit
- AUDIO OUTPUTS
- Meridian SpeakerLink connector (RJ45) delivering 32kHz to 96kHz sampling rates at up to 24-bit
- PERFORMANCE
- Peak SPL: 120dB@1m for a single speaker 3 x DSP750 in HPA: Peak SPL = 125dB@1m and 105dB@10m/32ft Frequency response: 30Hz – 40kHz
- AMPLIFIERS
- Tweeter: 2 x Class-D amplifiers bridged for 100W into 8 Ohms Mid-range drivers (each): 2 x Class-D amplifiers bridged for 100W into 8 Ohms Bass drivers (each): 2 x Class-D amplifiers bridged for 100W into 8 Ohms
- BASS DRIVERS
- 2 x 160mm long-throw, high-output with titanium voice coil
- MID-RANGE DRIVERS
- 2 x 100mm with woven polyproylene cones
- TWEETER
- Aluminium dome with custom steel waveguide
- FRONT PANEL CONTROLS
- On/off rocker switch, Fuse holder, IR window Rocker switch selects “Right”, “L + R”, “Left or Centre” RS232 socket – 3.5mm minijack (long version – 18.6mm) LED indicators show power status and configuration settings
- DISPLAY
- LED indicators to show power status and configuration settings
- DIMENSIONS / WEIGHT
- HEIGHT: 1230mm [48.5in] (Excludes frame and cable feed channel) WIDTH: 203mm [8in] DEPTH: 102mm [4in] WEIGHT: 16 kg [35 lbs]
- GRILLE DIMENSIONS
- HEIGHT: 1251.3mm [49.25in] WIDTH: 222.5mm [8.73in] DEPTH: 4mm [0.16in]
- POWER
- IEC mains cable included with loudspeaker for connection to rough-in box
