Meridian DSP320.2

Featuring an elegant profile, the DSP320.2 offers unrivalled power, accuracy and bass performance for a speaker of its size.

Loudspeakers

DSP320.2

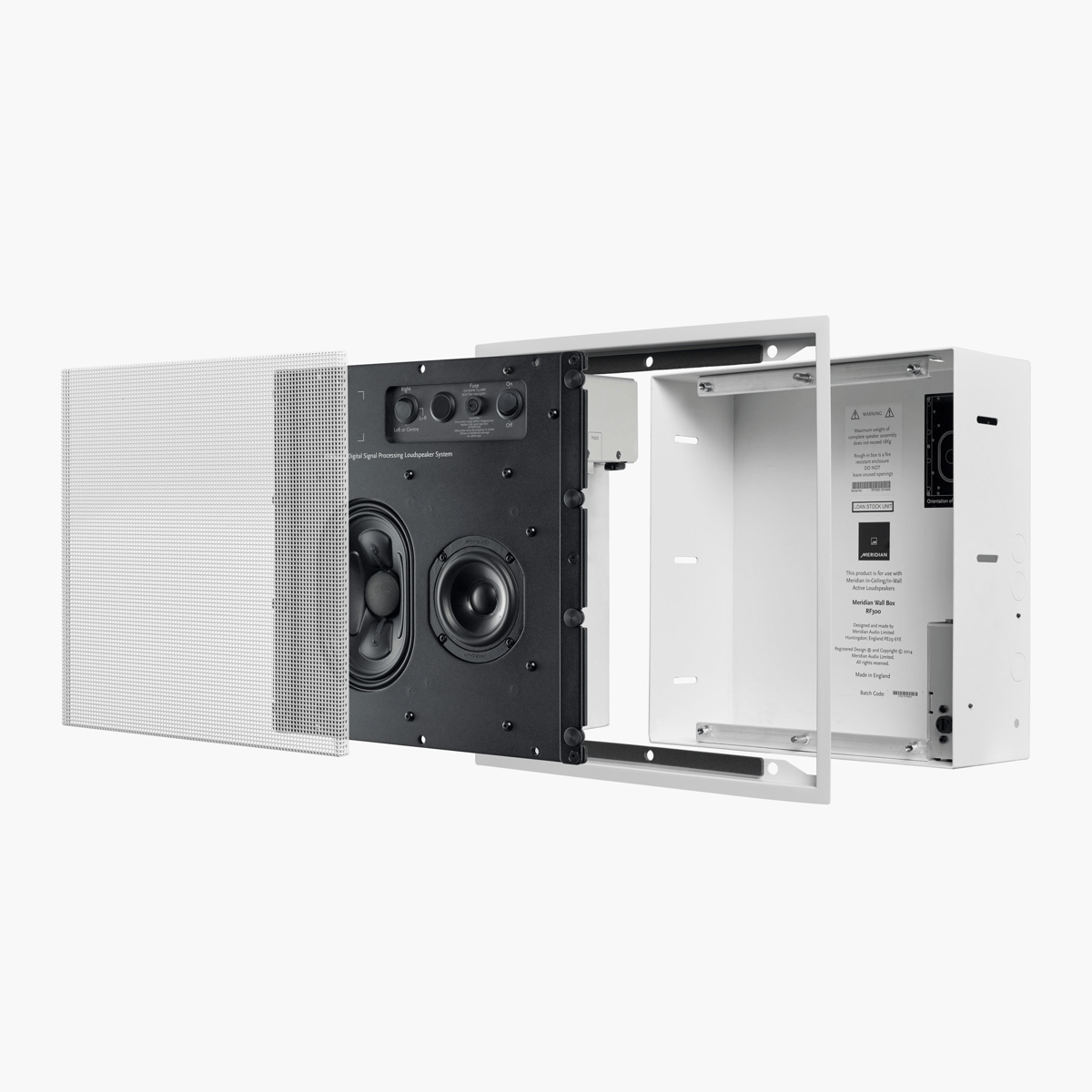

Designed for living spaces, home theatres, marine or commercial installations – the DSP320.2 delivers unrivalled power, accuracy and bass performance for a speaker of its size. DSP320.2s are the perfect partners for our other loudspeakers, including the DSP520.2 and DSP640.2 Featuring strong bass performance and the option of L + R mode the DSP320.2 includes two power amplifiers that deliver 80W per drive unit. It is capable of full range sound with a maximum SPL of 106dB @1m and bass extension down to 50Hz. Ultra-shallow (100mm deep) design provides full DSP loudspeaker performance, while the rough-in box and frame system allows for easy installation and precise positioning. Grill can be painted to match décor.

Bespoke Signal Mapping

Meridian Bespoke Signal Mapping utilises digital signal processing to apply tailored crossover filters that are designed specifically for each configuration of drive units within a loudspeaker.

E3 Bass

Meridian E3 Bass uses specifically designed filters to expand, extend and enhance the low-frequency response of the loudspeaker.

Image Elevation

Image Elevation psychoacoustically raises the sound image to the centre of a screen – where the listener would expect to hear it from.

FFA

FFA (Full Frequency Alignment) is a combination of digital filters and delays to correct the group-delay of a loudspeakers. It ensures that all frequencies reach the listener’s ear at the same time.

Pro-Active Bass

Meridian Pro-Active Bass protects the bass drivers from over-excursion, ensuring maximum bass output without damaging the drive units.

Pro-Active Thermal

Meridian Pro-Active Thermal monitors the audio being sent to the mid-range drivers and tweeters and limits the overall volume of the loudspeaker if there is a risk of the drive units getting too hot.

True Time

True Time is Meridian's proprietary Apodising Filter that avoids pre-ringing and cleans up the effects of early filters, converting pre-echo to post-echo.

True Link

Meridian True Link is an encryption method for transferring high-definition digital audio over SPDIF connections. It allows secure movement of digital audio whilst ensuring that the SPDIF clock signal can be transmitted with minimum degradation.

Q-Sync

Meridian Q-Sync deploys Meridian's multiple “First In, First Out” buffering system which minimises jitter, ensuring perfect timing and improved clarity.

Architectural Performance Series

With its extensive Research and Development programme Meridian has pioneered the development of a host of innovative audio technologies many of which feature in today’s Meridian products.
