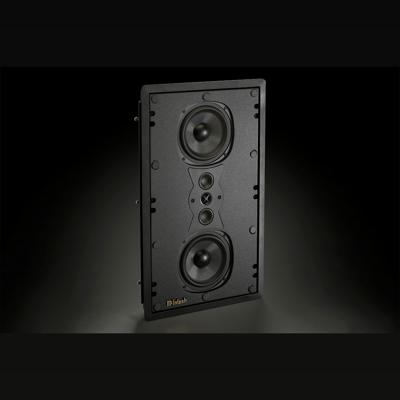

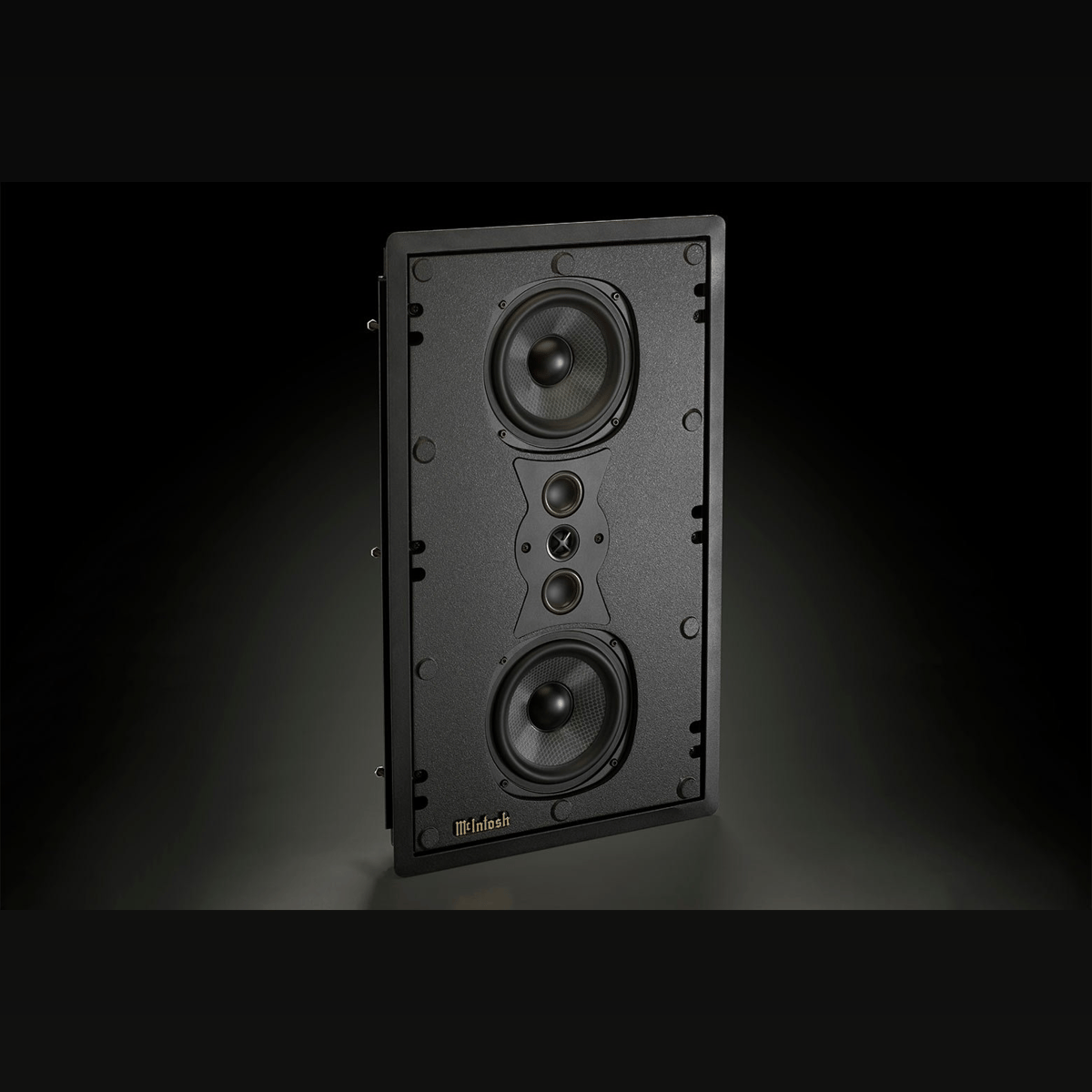

McIntosh Labs WS500 In-Wall Loudspeaker
- Fully enclosed speaker that fits in 2x4 walls
- Perfect for distributed audio or home theaters
- Up to 250 Watt Power Rating
The WS500 In-Wall Loudspeaker is a versatile speaker suited for custom install applications for both 2-channel home audio and in home theaters as front, center or surround sound speakers. It is an ideal speaker to use with our MI128 or MI254 distribution amplifiers, or with our WS300 in-wall speaker and CS200 in-ceiling speaker – both of which it is voice matched to for a seamless and cohesive aural experience. In home theaters, it works great with any of our A/V processors and multi-channel amplifiers
The 3-way WS500 is fully enclosed to deliver incredible performance in any environment plus a controlled air chamber minimizes distortion and response irregularities. It features two 6.5" woofers, two 2" inverted Titanium dome midranges and one 3/4" Titanium dome tweeter. The woofer is a new shallow design that fits in standard 2x4 wall construction for easy installation. The woofer utilizes a long throw, high power design with molded carbon reinforced cones with molded elastomeric surrounds for high linearity. The midranges and tweeters are the same drivers used in our XR50 and XR100 home audio speakers and deliver the same level of performance.
The grille magnetically attaches for easy removal. The grille is also paintable and will leave little to no visible edge of the mounting flange so the speaker can virtually disappear into its surroundings. It comes with all required hardware and mounting mechanisms for post construction installations. An optional rough-in kit (#RK500) is available if needed. Contact your local dealer to learn more.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Impedance Nominal
- 4 Ohms
- Power Rating
- Up to 250 Watts
- Frequency Response
- 80Hz to 20kHz
- Sound Pressure Level, 2.8V/1m
- 86dB
- Crossover
- 350Hz, 2,500Hz
- Number of Woofers
- 2
- Woofer Size
- 6.5"
- Woofer Type
- Woven Glass Fiber
- Number of Midranges
- 2
- Midrange Size
- 2"
- Midrange Type
- Inverted Titanium Dome
- Number of Tweeters
- 1
- Tweeter Size
- 3/4"
- Tweeter Type
- Titanium Dome
- System Type
- 3-Way In-Wall
- Grille
- Magnetic metal mesh
- Available Finishes
- Black chassis with white paintable grille
- Unit Dimensions (W x H x D)
- 14" (35.5cm) x 23-1/2" (59.7cm) x 3-5/8" (9.3cm)
- Unit Weight
- 24 lbs (10.9 kg)
- Shipping Weight
- 29 lbs (14.1 kg)
Manufacturer's Description — McIntosh Labs
- Fully enclosed speaker that fits in 2x4 walls
- Perfect for distributed audio or home theaters
- Up to 250 Watt Power Rating
The WS500 In-Wall Loudspeaker is a versatile speaker suited for custom install applications for both 2-channel home audio and in home theaters as front, center or surround sound speakers. It is an ideal speaker to use with our MI128 or MI254 distribution amplifiers, or with our WS300 in-wall speaker and CS200 in-ceiling speaker – both of which it is voice matched to for a seamless and cohesive aural experience. In home theaters, it works great with any of our A/V processors and multi-channel amplifiers
The 3-way WS500 is fully enclosed to deliver incredible performance in any environment plus a controlled air chamber minimizes distortion and response irregularities. It features two 6.5" woofers, two 2" inverted Titanium dome midranges and one 3/4" Titanium dome tweeter. The woofer is a new shallow design that fits in standard 2x4 wall construction for easy installation. The woofer utilizes a long throw, high power design with molded carbon reinforced cones with molded elastomeric surrounds for high linearity. The midranges and tweeters are the same drivers used in our XR50 and XR100 home audio speakers and deliver the same level of performance.
The grille magnetically attaches for easy removal. The grille is also paintable and will leave little to no visible edge of the mounting flange so the speaker can virtually disappear into its surroundings. It comes with all required hardware and mounting mechanisms for post construction installations. An optional rough-in kit (#RK500) is available if needed. Contact your local dealer to learn more.
