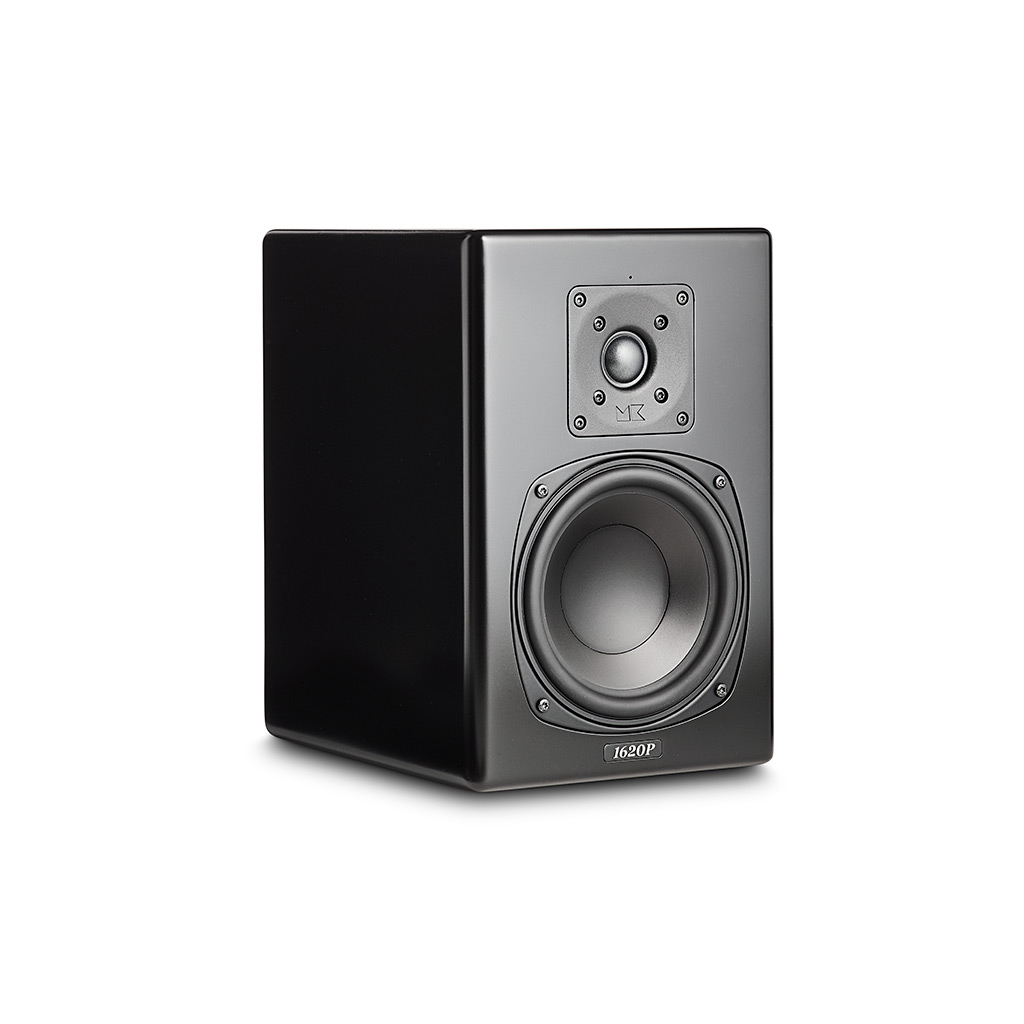

M&K Sound MPS1620P Studio Monitor
The MPS 1620P studio monitor feature a long stroke 6.5” driver and a low compression 1” dome tweeter to provide impressive sound impact for high resolution “sound productions”
The dual channel power amplifiers drive the bass-midrange and high frequency sections with great precision and full control of signal dynamics.
The MPS1620P can operate both as a sealed or a ported loudspeaker due to the removeable “port plug system” at the rear side of speaker.
When operating with subwoofer, the choice of sealed box configuration and filter set to “normal” will provide the classic M&K Sound sub/sat crossover configuration, while when using the MPS1620P as a stand-alone monitor, the ported configuration with filter set to “full-range” will extend bass response and provider precise “broad band” response for near field monitor applications.
MPS1620P is a flexible high precision studio monitor to use for reference recordings, editing, processing, and master mixing for music and movie productions.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
No reviews found yet
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Amplifier power bass-midrange
- 100watt RMS/200watt peak
- Amplifier power high frequency:
- 50watt RMS/100watt peak
- Bass/Midrange
- 1 x 6,5” polypropylene woofer
- High frequency Drivers
- 1 x 1” soft dome tweeter
- Frequency Response
- Sealed/normal setting 80-22KHz +/-2dB / (wall or console loaded) 45-22Khz +/-2dB Ported/normal setting 45-22KHz +/-2dB Ported/full range setting / (wall or console loaded) 35-22Khz +/-2dB
- Total Harmonic distortion
- 0,025% into 8 ohms LF channel / 0.025% into 4 ohms HF channel
- Signal to noise ratio
- 100dB
- AC power consumption
- Standby/Average/Max (15W, 30W, 240W)
- AC line voltage
- 115VAC/60Hz 2A – 230VAC/50Hz 1A
- Input impedance
- unbalanced 11kohm / balanced 22Kohm
- Input sensitivity unbalanced
- 100mV 88dB 1m / balanced 200mV 88dB 1m
- Max output level
- 106dB/100Hz
- Max input
- 24dBu balanced
- High pass filter
- Fixed 80 Hz (24dB)
- Dimensions HxWxD
- 12.6 x 8.3 x 11.6” / 321 x 213 x 297 mm
- Weight
- 20.3 lbs / 9,2 kg
- Finish
- Black satin
Manufacturer's Description — M&K Sound
The MPS 1620P studio monitor feature a long stroke 6.5” driver and a low compression 1” dome tweeter to provide impressive sound impact for high resolution “sound productions”
The dual channel power amplifiers drive the bass-midrange and high frequency sections with great precision and full control of signal dynamics.
The MPS1620P can operate both as a sealed or a ported loudspeaker due to the removeable “port plug system” at the rear side of speaker.
When operating with subwoofer, the choice of sealed box configuration and filter set to “normal” will provide the classic M&K Sound sub/sat crossover configuration, while when using the MPS1620P as a stand-alone monitor, the ported configuration with filter set to “full-range” will extend bass response and provider precise “broad band” response for near field monitor applications.
MPS1620P is a flexible high precision studio monitor to use for reference recordings, editing, processing, and master mixing for music and movie productions.
