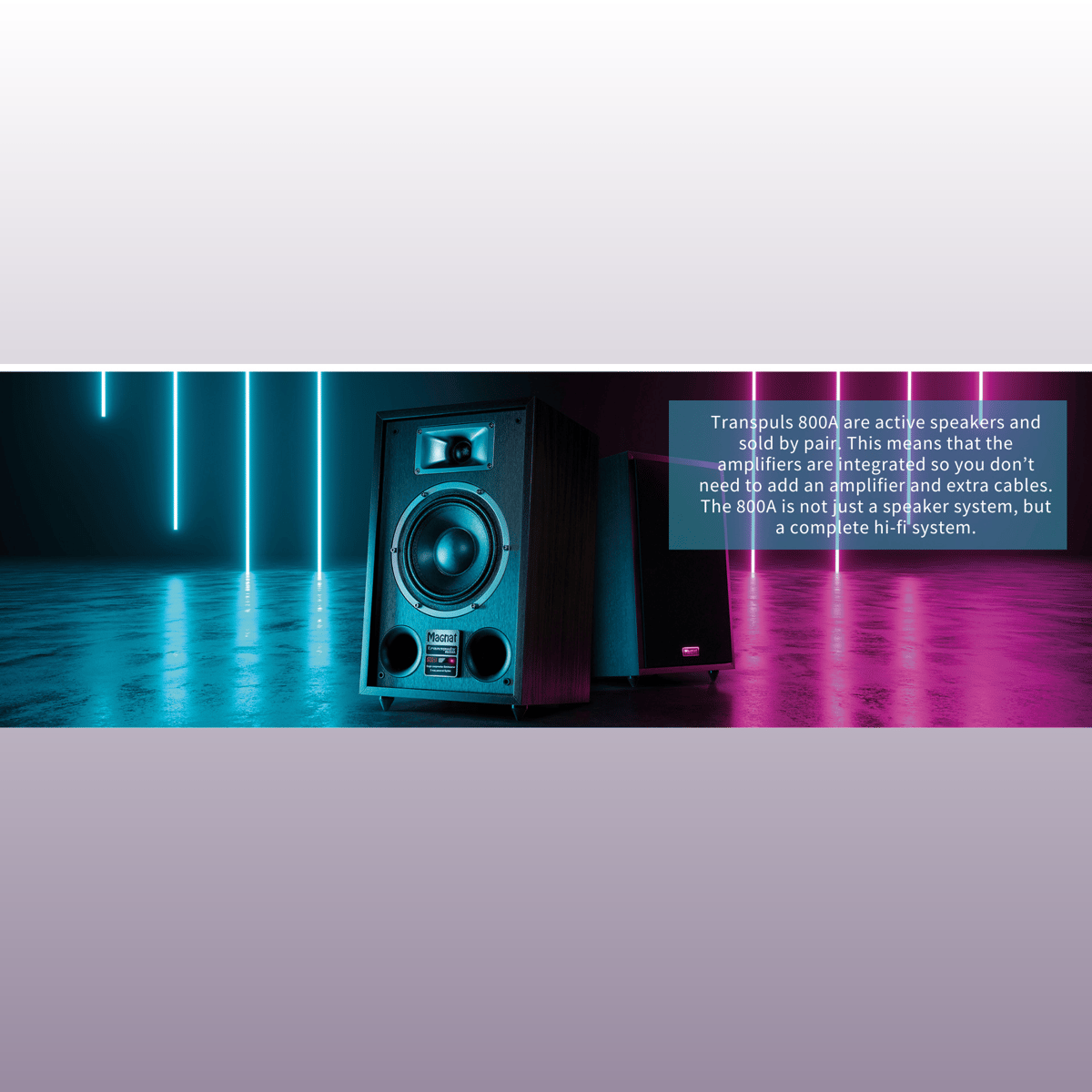

Designed for lovers of classic Hi-Fi aesthetics, the Transpuls 800A features a dark wood finish cabinet, black baffle, and a fabric-covered retro-design grille—pure visual nostalgia. Behind this old-school charm, however, lies state-of-the-art audio technology: an integrated Class-D full amplifier, a 24 Bit / 192 kHz DAC, and aptX™-HD Bluetooth for high-resolution streaming from smartphone, tablet, or PC.
This is not just a speaker—it’s a complete active stereo system. With 2 × 60 watts RMS (120 watts peak output), the Transpuls 800A delivers clean, dynamic sound with strong assertiveness in any room. Numerous connection options—including Bluetooth 5.0 with aptX HD, HDMI ARC, optical, coaxial, and RCA/Phono—allow for effortless connection of everything from turntables to TVs. Plug-and-play audio freedom without additional equipment.
The horn-loaded dome tweeters provide detailed highs with excellent dispersion characteristics, while the long-throw 6.5″/17-cm woofer adds power and depth to your music. From rock and jazz to electronic music and film soundtracks, the Transpuls 800A impresses with precise, controlled bass, expressive mids, and clear highs. Developed by the German acoustic experts at MAGNAT and finely tuned for pure musicality.
OUR TECHNOLOGIES
HIGHLY EFFICIENT HORN TWEETER FOR NATURAL HIGHS
The Magnat Transpuls 800A is equipped with a single-compression horn tweeter (SC-Horn) whose radiation-optimized horn geometry enables powerful and precisely directed high-frequency reproduction.
At the center of the tweeter is a 1″/25 mm fabric dome, driven by a high-quality neodymium magnet system. This combination ensures excellent dynamics, fast impulse response, and a natural, low-distortion sound signature—even at high volumes.
POWERFUL WOOFER FOR DEEP, CONTROLLED BASS
The Magnat Transpuls 800A is equipped with a 6.5″/17 cm high-performance woofer specially developed for dynamic and powerful bass reproduction. At its core is a Klippel®-optimized magnet system that ensures maximum efficiency, high linearity, and minimal distortion—even at high levels.
The generously sized, hardened paper cone offers an excellent stiffness-to-weight ratio and enables a fast, precise low-frequency response. A robust PA-grade fabric surround ensures durability and stability. Thus, the Transpuls 800A delivers deep, tight bass with authority and control.
ACOUSTICALLY OPTIMIZED CABINET WITH CLASSIC DESIGN
The Magnat Transpuls 800A features a solid MDF cabinet designed for maximum stability and minimal resonances. Two generously sized, flow-optimized bass reflex ports on the front improve low-frequency reproduction while reducing flow noise—for powerful and controlled bass even at higher volumes.
For optimal placement and sound performance, the speaker stands on rubber feet. Additionally, elevated front feet provide a slight upward angle, improving dispersion and directivity—especially when placed on lower furniture or shelves.
ADVANCED TECHNOLOGY AND COMPREHENSIVE CONNECTIVITY
Powered by a powerful Class D amplifier with 2 x 60 watts RMS (2 x 120 watts peak output), the 800A offers dynamic and low-distortion reproduction. With Bluetooth®, HDMI ARC, analog line-in, as well as an integrated phono preamplifier and a comfortable remote control, it offers maximum flexibility as a powerful all-in-one hi-fi system.
PERFORMANCE AT A GLANCE
Principle:
2-way bass reflex, active
Output Power (RMS/Max.):
2 x 60 / 2 x 120 Watt
Drivers:
1 x 17 cm (6.5″) woofer-midrange driver
1 x 25 mm (1″) horn dome tweeter
Frequency Response:
34 – 32,000 Hz
Crossover Frequency:
3,100 Hz
Operating Frequency:
2,402 – 2,480 MHz
Crossover Frequency:
3,100 Hz
Mains Voltage:
100 – 240 V
Connections:
Emitted power (EN 62479):
3,01 dBm
Surface:
Dark Wood
Dimensions (WxHxD):
24 x 38.5 x 21.5 cm
9.4“ x 15.2“ x 8.5“
Weight:
Active speaker: 7.4 kg
Passive speaker: 6.5 kg
Accessories:
Removable cloth cover in retro design with a solid MDF frame
Remote control (incl. battery)
DOCUMENTS FOR DOWNLOAD
Our Transpuls are also available in a passive version (external amplification required).
