The Reference 5A is the perfect choice for anyone who wants to enjoy high-quality Hi-Fi sound in a stylish design – without a separate amplifier or complicated installation. With analog and digital inputs, optical connection, 3.5 mm jack, and an integrated phono preamplifier for MM systems, the speaker seamlessly adapts to any setup. The slim, elegant black hairline finish blends harmoniously into modern living spaces, while the removable fabric covers offer additional visual flexibility.

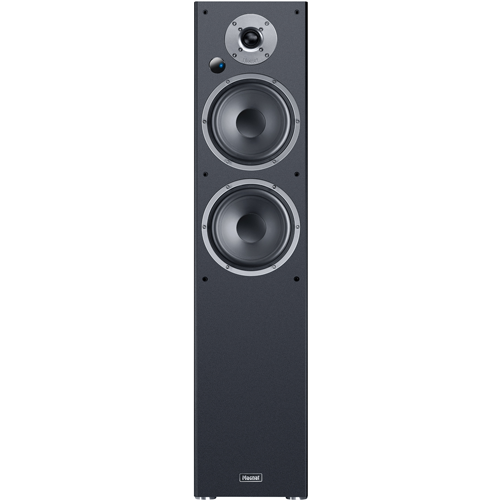

Magnat Monitor Reference 5A
Active Floorstanding Speaker with Premium Sound and Elegant Design
ACTIVE SPEAKERS > FLOORSTANDING ACTIVE SPEAKER
ACTIVE FLOORSTANDING SPEAKERS FOR PLUG-AND-PLAY OPERATION
Experience home audio at its finest with the Magnat Monitor Reference 5A – where power, clarity, and elegance combine in a sleek overall package. No additional devices are needed: Integrated amplifiers, Bluetooth 5.0, HDMI-ARC, and even a phono input for turntables ensure you're ready to go immediately. Whether streaming, watching TV, or enjoying vinyl – simply connect and enjoy.
Enjoy all the benefits of modern sound processing and high-quality engineering. From Bluetooth® 5.0 with aptX® to high-resolution HDMI-ARC/CEC compatibility, the Monitor Reference 5A offers maximum ease of use – without compromising on performance. The integrated powerful Class-D amplifier delivers 2 × 60 watts RMS and ensures precise dynamics and crystal-clear sound.
The 25 mm tweeter dome is driven by a proven, powerful ferrite magnet and ensures lively, clear highs. Below it, two 17 cm drivers work: One acts as a woofer/midrange driver for the vocal and midrange frequencies, while the second is specially designed for reproducing deep bass frequencies. The result is a powerful, immersive soundstage with balanced detail.
OUR TECHNOLOGIES
FMAX TWEETER FOR CLEAR HIGHS
At the core of the system is a 1″ / 25 mm fmax tweeter equipped with a specially designed soundguide, ensuring optimized dispersion and a wide, balanced soundstage. The powerful ferrite magnet system enables exceptional dynamic range and precise high-frequency reproduction, ideal for music, movies, and gaming.
FE-DYNAMICS WOOFER FOR POWERFUL BASS
The Magnat Monitor Reference 5A is equipped with an FE-Dynamics bass-midrange driver featuring a coated paper cone with low partial oscillation. Combined with a distortion-optimized magnet system, this design delivers deep, precise bass and clean midrange reproduction — ensuring dynamic, powerful sound across all genres.
ENGINEERED FOR ACOUSTIC PURITY AND BASS PRECISION
The Magnat Monitor Reference 5A features a very solid, low-resonance cabinet construction, crafted from high-quality MDF panels that rests on resonance-damping rubber feet to minimize unwanted vibrations and resonances. To further enhance bass response and airflow, the cabinet integrates an Airflex port with rounded reflex opening. This design significantly reduces port noise ensuring tight, precise low-frequency reproduction even at higher volumes.
PRECISION ENGEENIRING AND FULL CONNECTIVITY
The Magnat Monitor Reference 5A houses a powerful Class-D amplifier providing 2 x 60 watts RMS or 2×120 watts peak. With full input flexibility — including Bluetooth®, HDMI ARC, digital and analog inputs, plus a built-in phono preamp — it adapts to any setup. Complete with remote control, it’s a true all-in-one hi-fi solution for music and home entertainment.
PERFORMANCE AT A GLANCE
Principle:
2.5 way bass reflex, active floorstanding speaker
Power output (RMS/MAX):
2 x 60 / 2 x 120 watts
Drivers:
1 x 17 cm (6,5“) woofer
1 x 17 cm (6,5“) woofer-midrange
1 x 25 mm (1“) dome tweeter
Frequency response:
28 – 40,000 Hz
Mains voltage:
100 – 240 V
Crossover frequency:
3,200 Hz
Operating frequency:
2402 – 2480 MHz
Connectivity:
HDMI ARC
Bluetooth® 5.0 aptX®
Optical
Analog RCA (Line/Phono)
3.5 mm Jack
Finish:
Font: matt black
Body: black textured veneer
Voltage:
100V – 240V
Dimensions (WxHxD):
20,5 x 90,8 x 28,2 cm
8,1″ × 35,7″ × 11,1″
Weight:
Active speaker: 14,7 kg / 32,4 lbs
Passive speaker: 13,8 kg / 30,4 lbs
Accessories:
Control for volume and input selection at the rear panel of the right loudspeaker
Detachable front cover with acoustic cloth
Resonance-damping rubber feet
DOCUMENTS TO DOWNLOAD
This speaker also comes in a bookshelf format.
